Small House with Loft and Terrace - DP2024S095
Structure Type: Timber-frame house with loft and covered terrace
Main Floor Area: 41m² (441 sq ft)
Loft Area: 19m² (205 sq ft)
Covered Terrace: 15m² (161 sq ft)
Total Usable Space: 60m² (646 sq ft)
Foundation Type: Concrete slab foundation
Ideal For: Small homes, vacation cabins, guest houses, or starter homes
Structure Details
This compact house features a traditional gable roof design with a functional loft space and a generous covered terrace. The 41m² (441 sq ft) main floor provides essential living space, while the 19m² (205 sq ft) loft adds extra sleeping or storage area. The 15m² (161 sq ft) covered terrace extends your living space outdoors, perfect for relaxing or entertaining. The timber-frame construction with engineered roof trusses ensures durability and efficient use of space. Structural members are optimized for standard dimensional lumber availability.
What's Included
Complete structural engineering package created with licensed MiTek Pamir software:
-

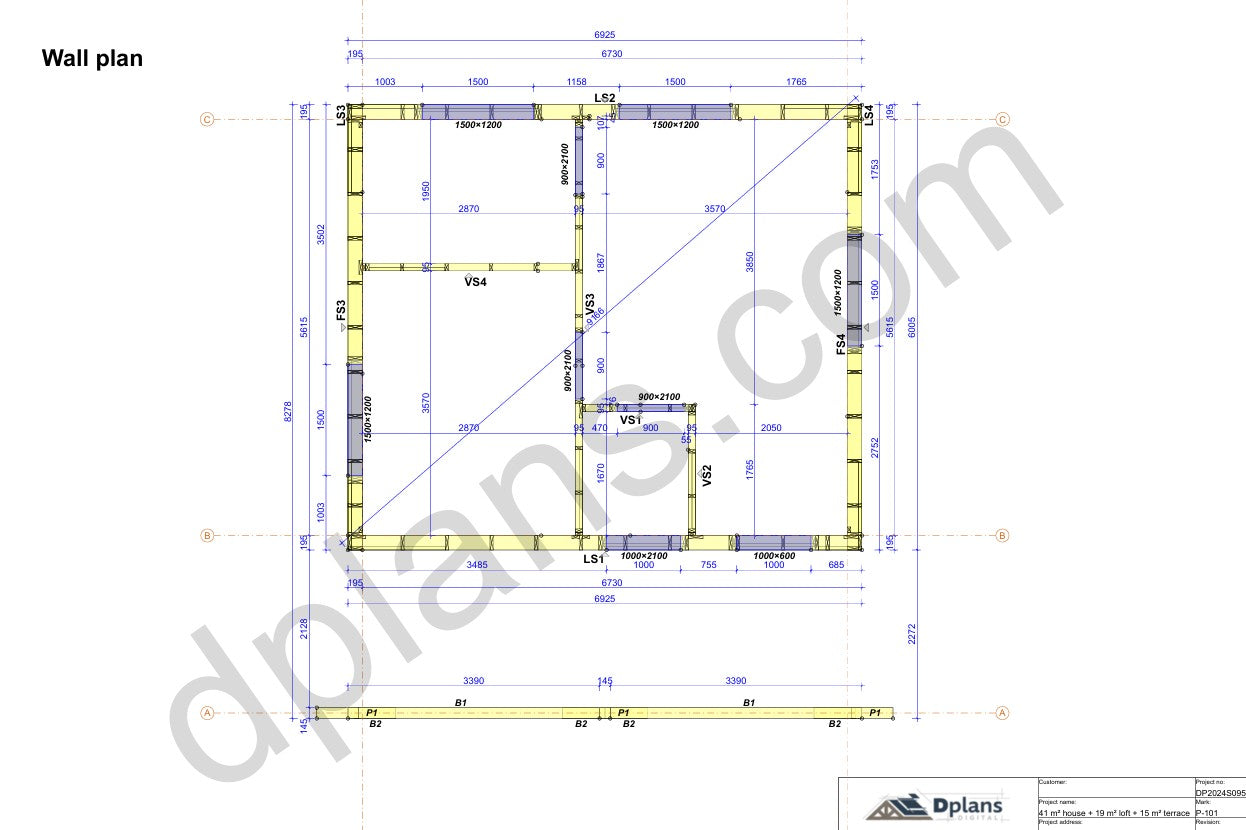

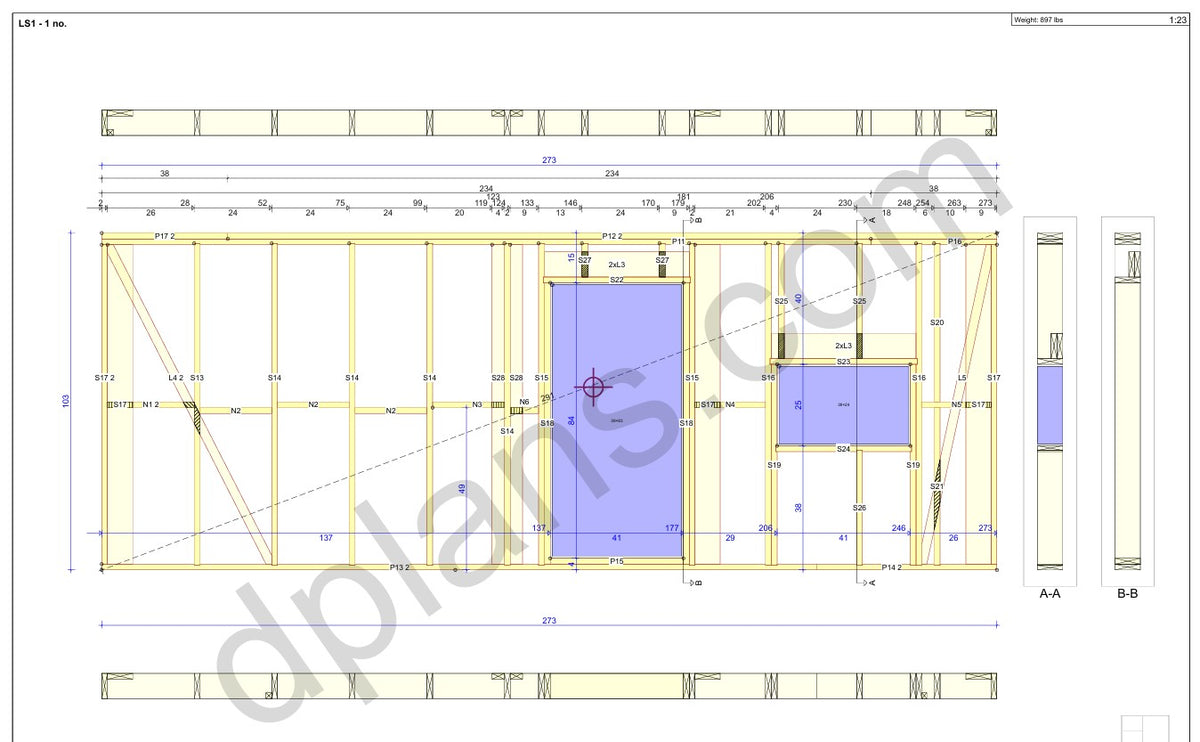

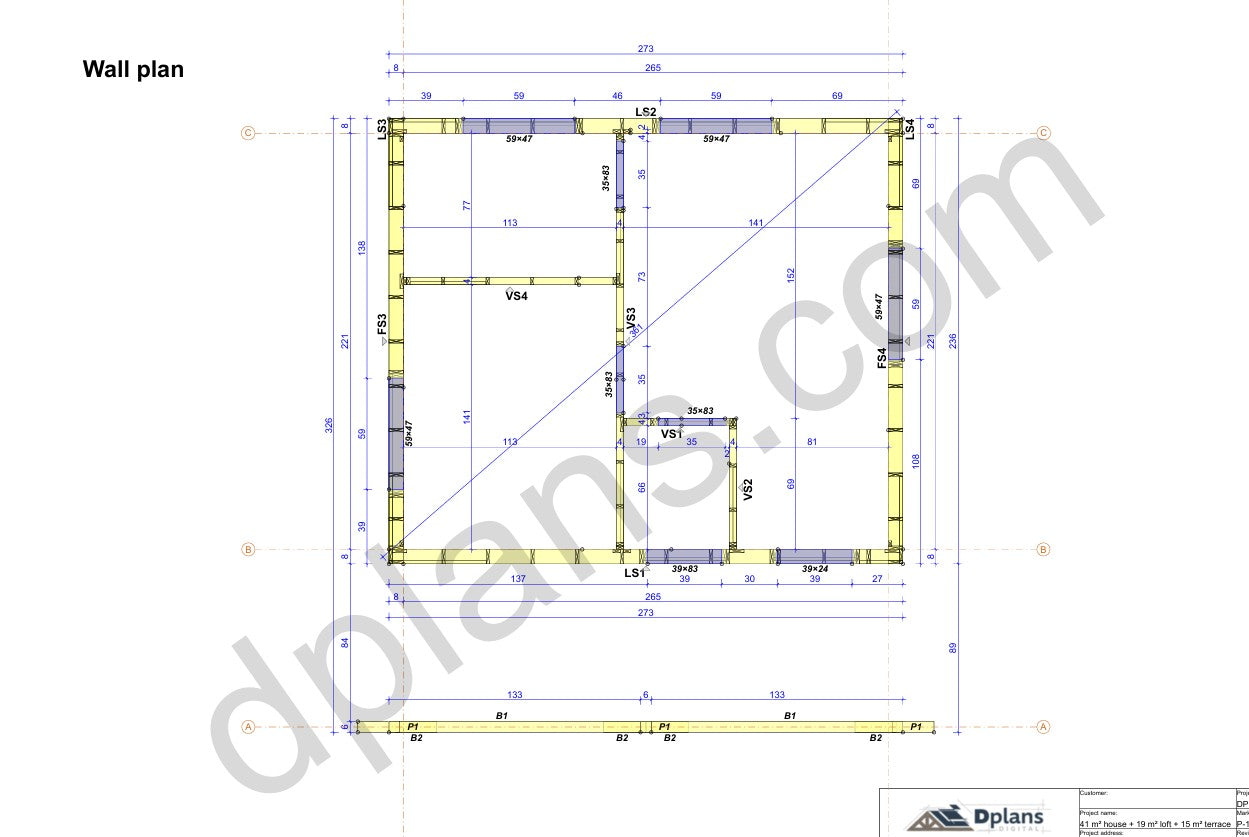

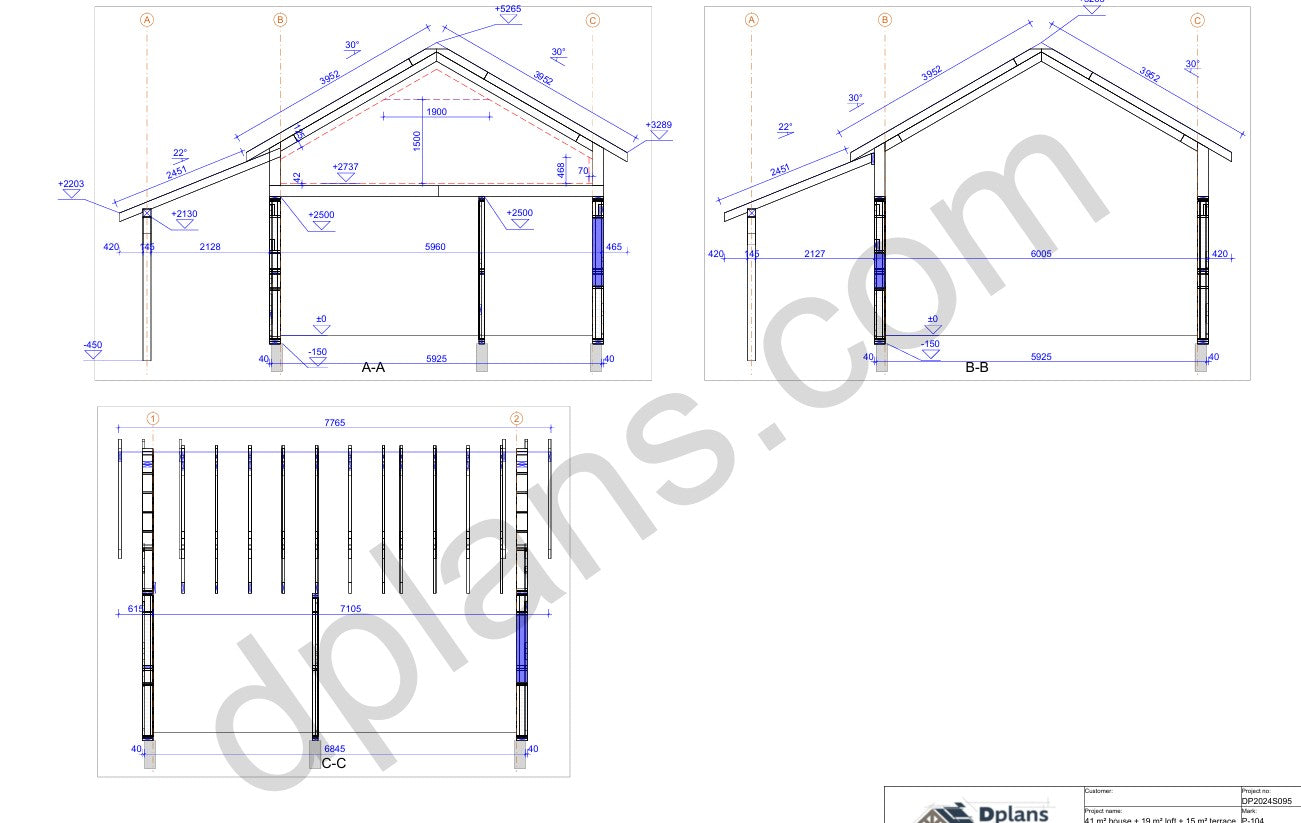

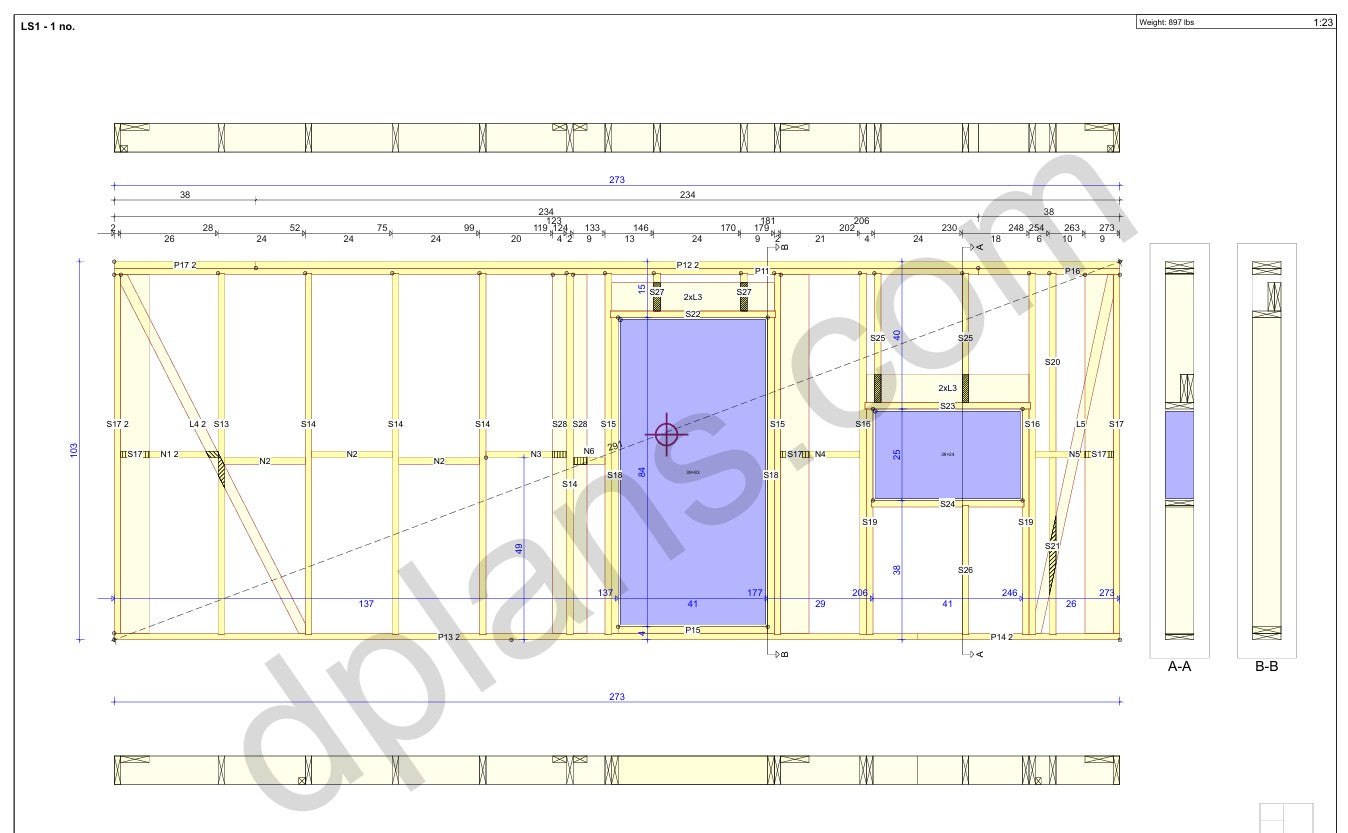

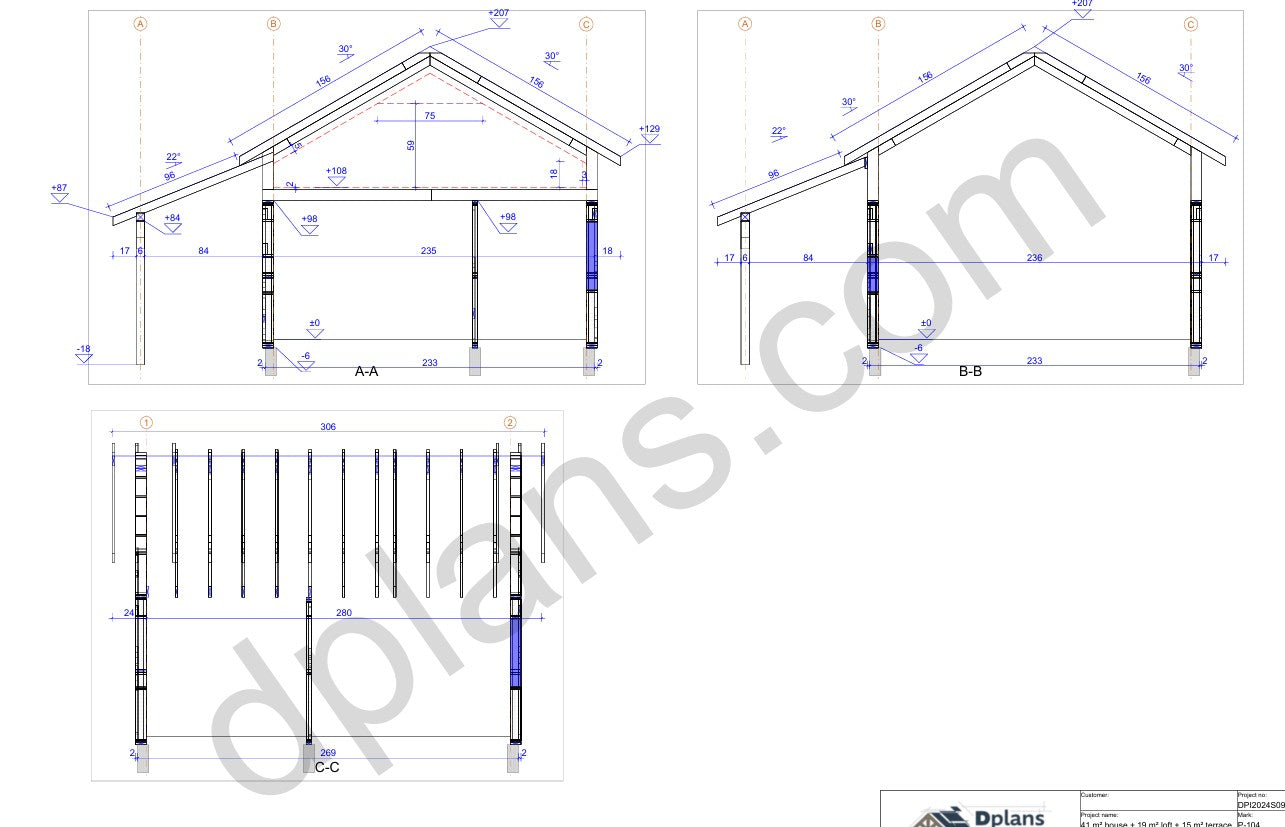

Structural Drawings: Detailed elevations, floor plan, roof framing layout, and wall sections showing all timber members and connections
-
Load Calculations: Full engineering analysis for dead loads, live loads, snow loads, and wind loads
-

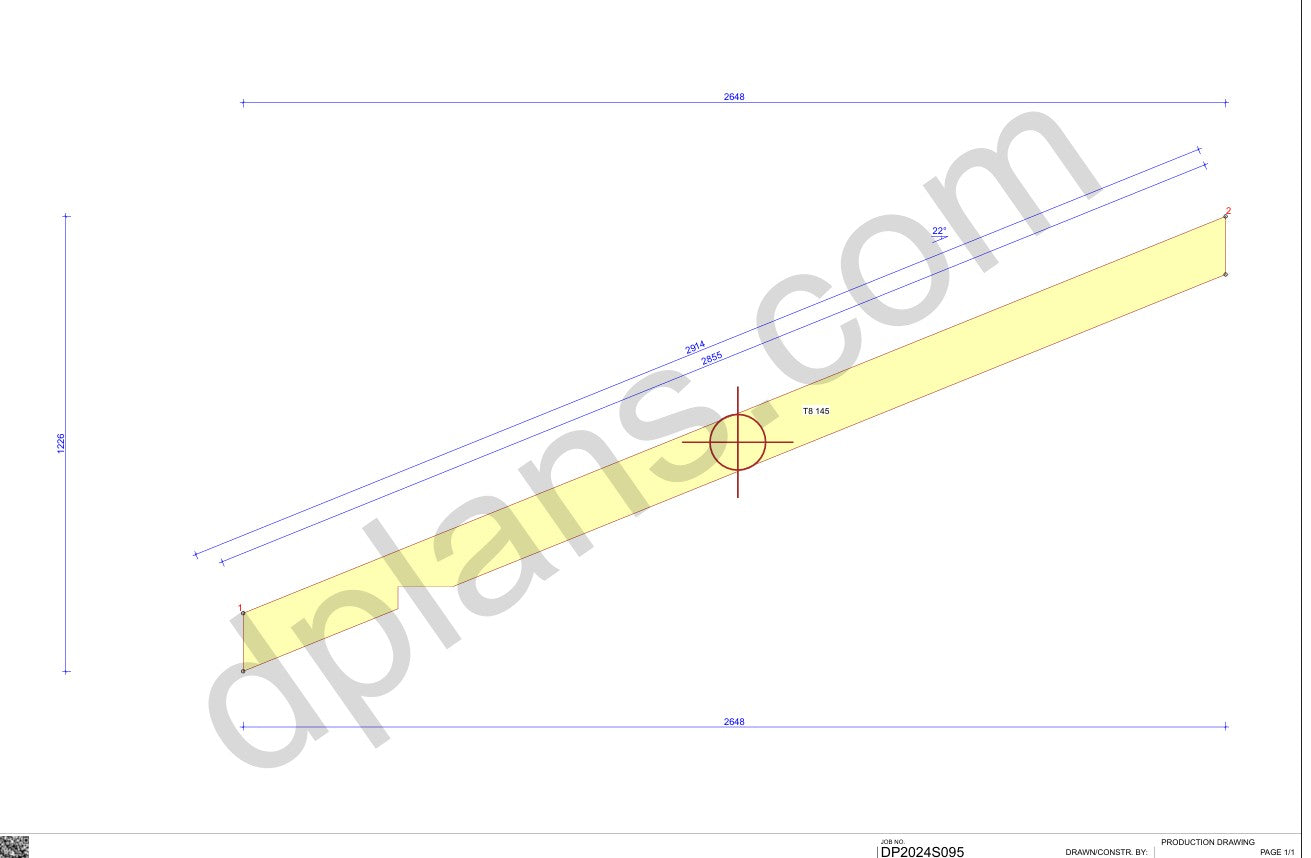

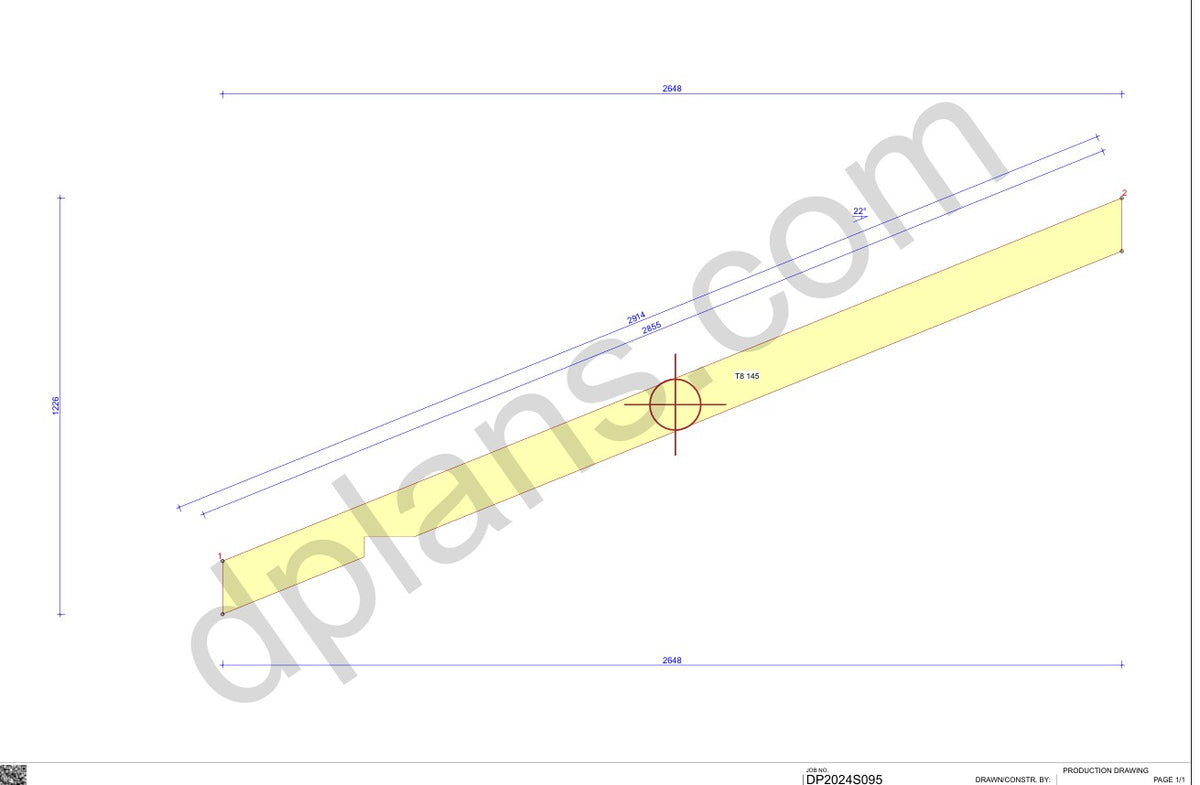

Production Drawings: Connector plate specifications and placement (where applicable to the design)
-

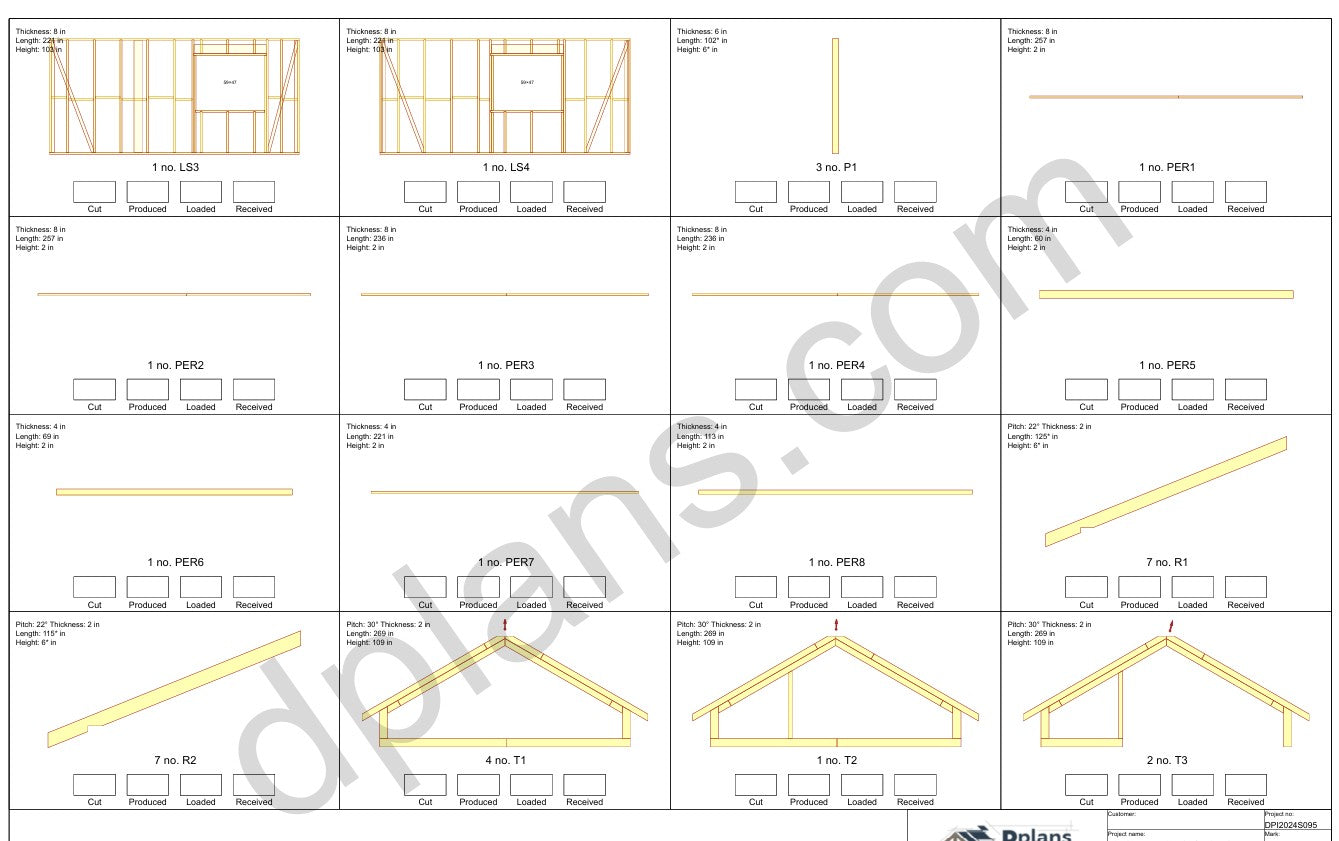

Cutting Bills: Exact dimensions and angles for every structural member - ready for cutting
-
Material Pick List: Complete timber quantities, fastener specifications, and hardware requirements
-
Foundation Layout: Perimeter and support structure details with anchor points
-

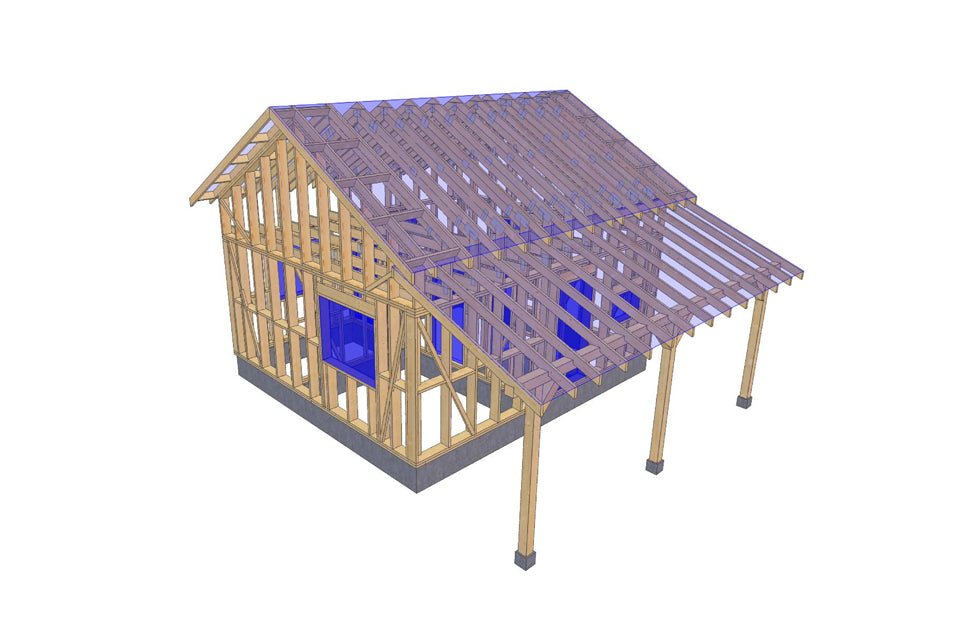

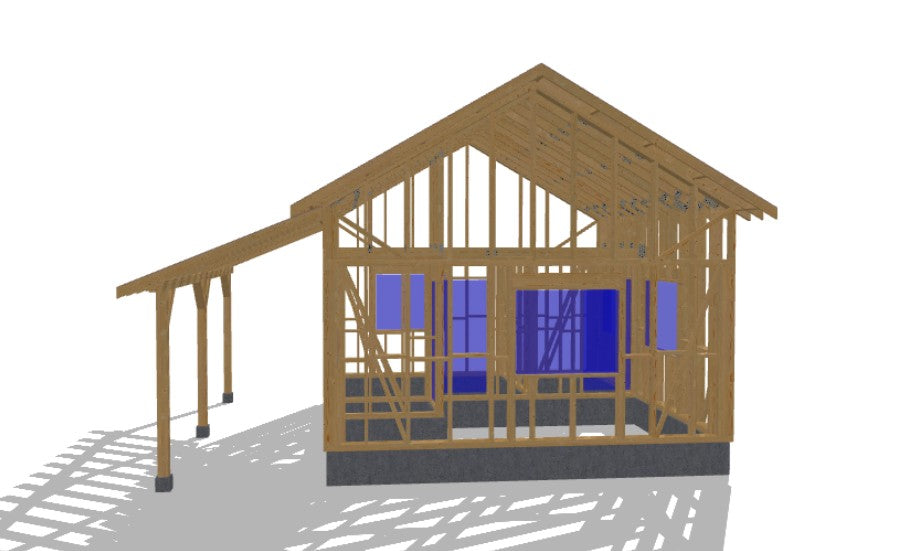

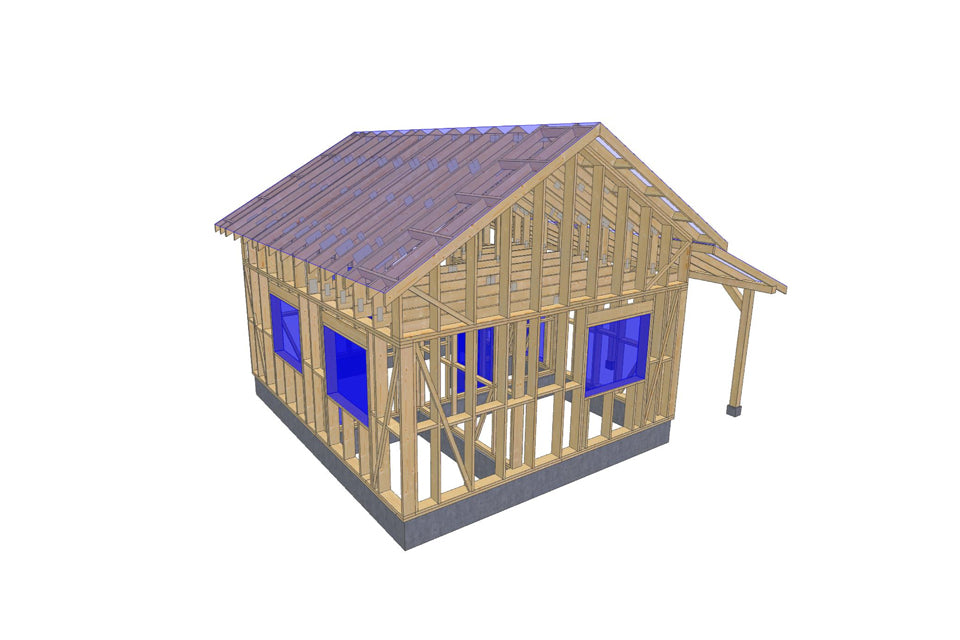

3D Visualization: Interactive 3D model accessible via QR code for spatial understanding
-
Dual Measurements: Separate folders with metric (mm) and imperial (inches) versions
This plan provides everything needed for construction. All structural connections are engineered with proper load distribution using MiTek's professional timber engineering system.
Choose Your Plan
Standard Plan includes complete PDF documentation - perfect for builders and contractors.
Pro Plan adds DWG files (for AutoCAD and CAD software), IFC files (for BIM applications like Revit), and access to MiTek Pamir viewer software for enhanced technical viewing. Choose Pro if you need to import plans into CAD software for modifications or work with BIM workflows.
