Timber-Frame Cabin - DP2024S594
Structure Type: Timber-frame cabin on screw pile foundation
Building Area: 41m² (441 sq ft)
Foundation Type: Screw pile or post foundation
Ideal For: Garden studios, home offices, guest houses, hobby spaces, or backyard retreats
Structure Details
This modern cabin features a shed-style roof with extended rafter overhang for added weather protection and visual appeal. The 41m² (441 sq ft) interior provides flexible space for a home office, studio, workshop, or guest accommodation. The elevated screw pile foundation system allows for installation on uneven terrain and provides excellent ventilation beneath the structure. Large window openings maximize natural light. Structural members are optimized for standard dimensional lumber availability.
What's Included
Complete structural engineering package created with licensed MiTek Pamir software:
-
Structural Drawings: Detailed elevations, floor plan, roof framing layout, and wall sections showing all timber members and connections
-
Load Calculations: Full engineering analysis for dead loads, live loads, snow loads, and wind loads
-
Production Drawings: Connector plate specifications and placement (where applicable to the design)
-
Cutting Bills: Exact dimensions and angles for every structural member - ready for cutting
-
Material Pick List: Complete timber quantities, fastener specifications, and hardware requirements
-
Foundation Layout: Perimeter and support structure details with anchor points
-

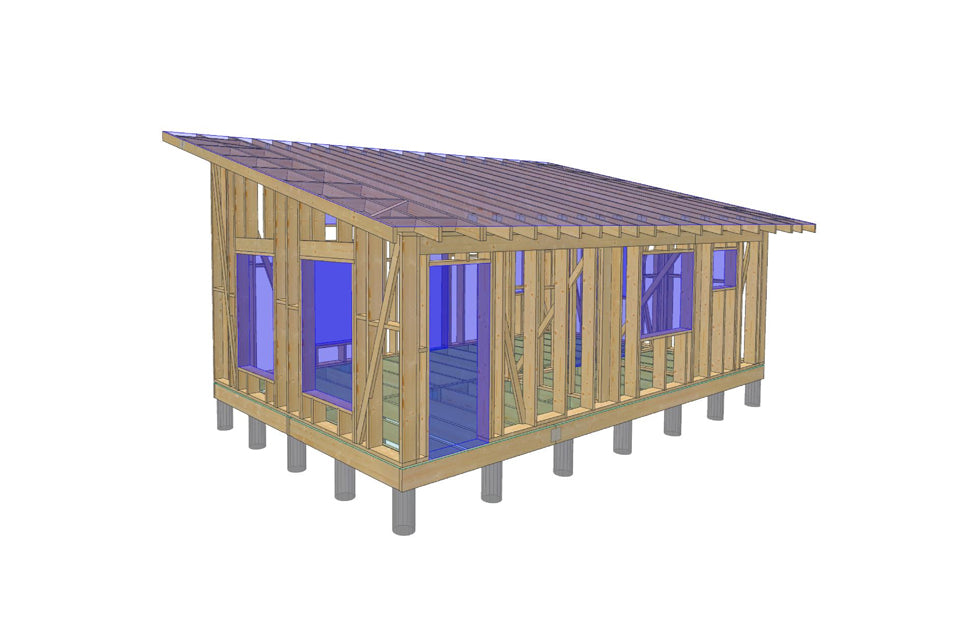

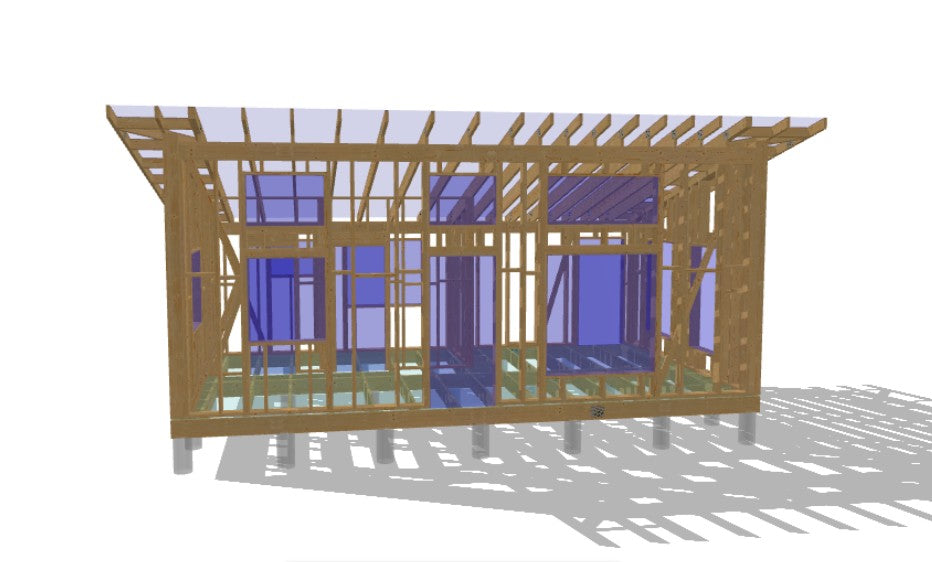

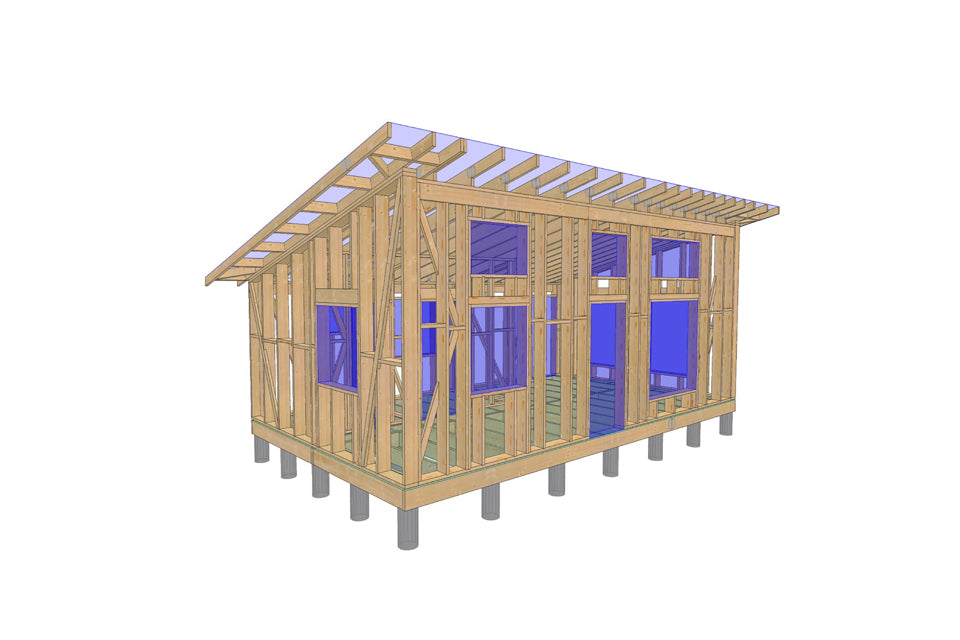

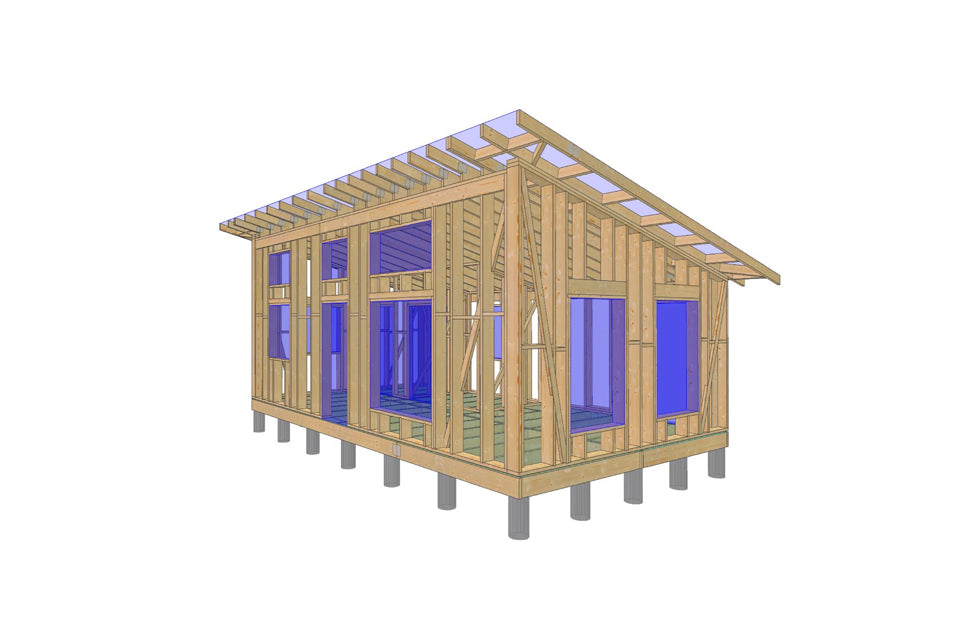

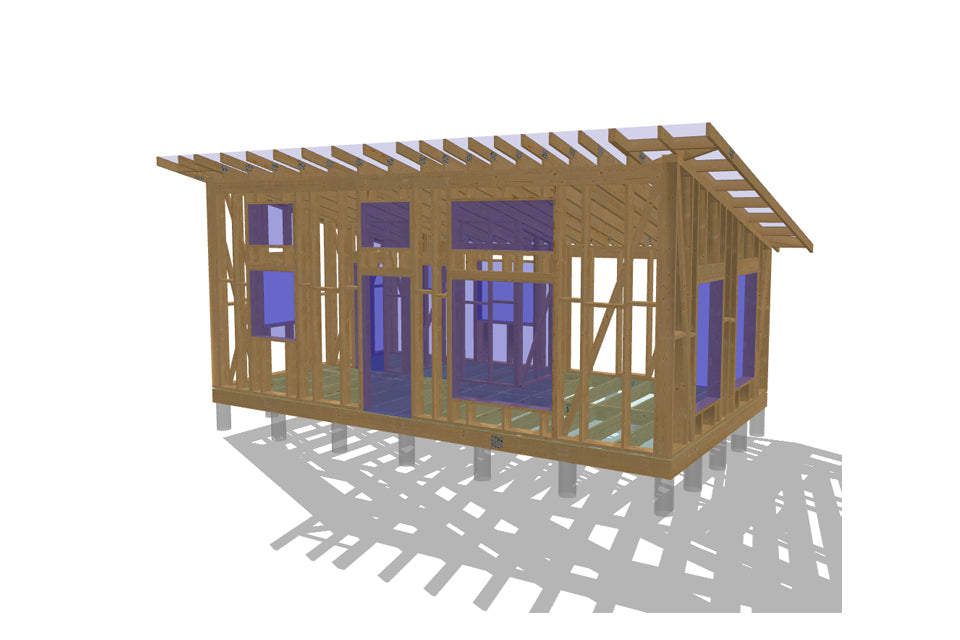

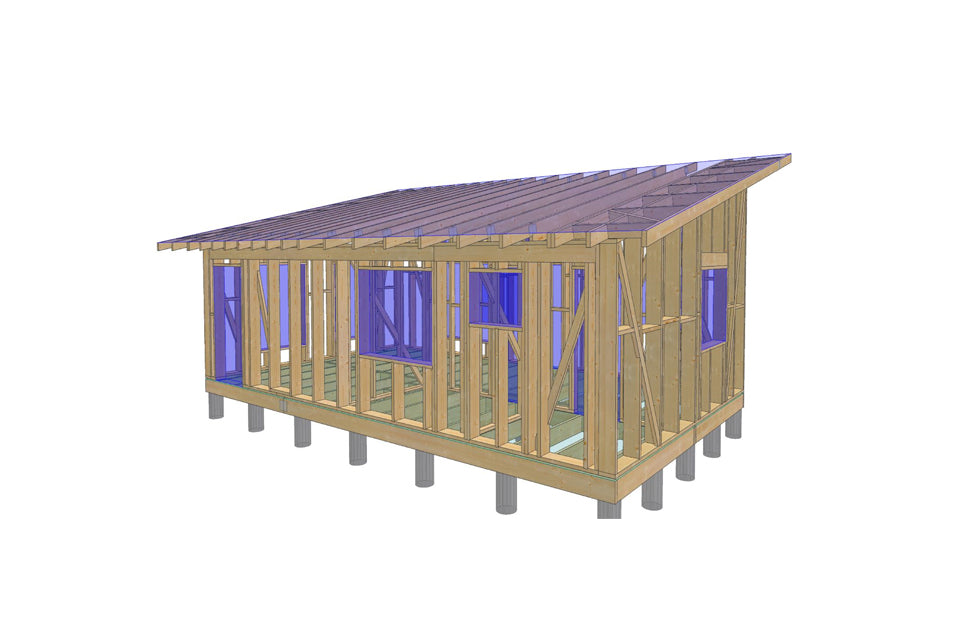

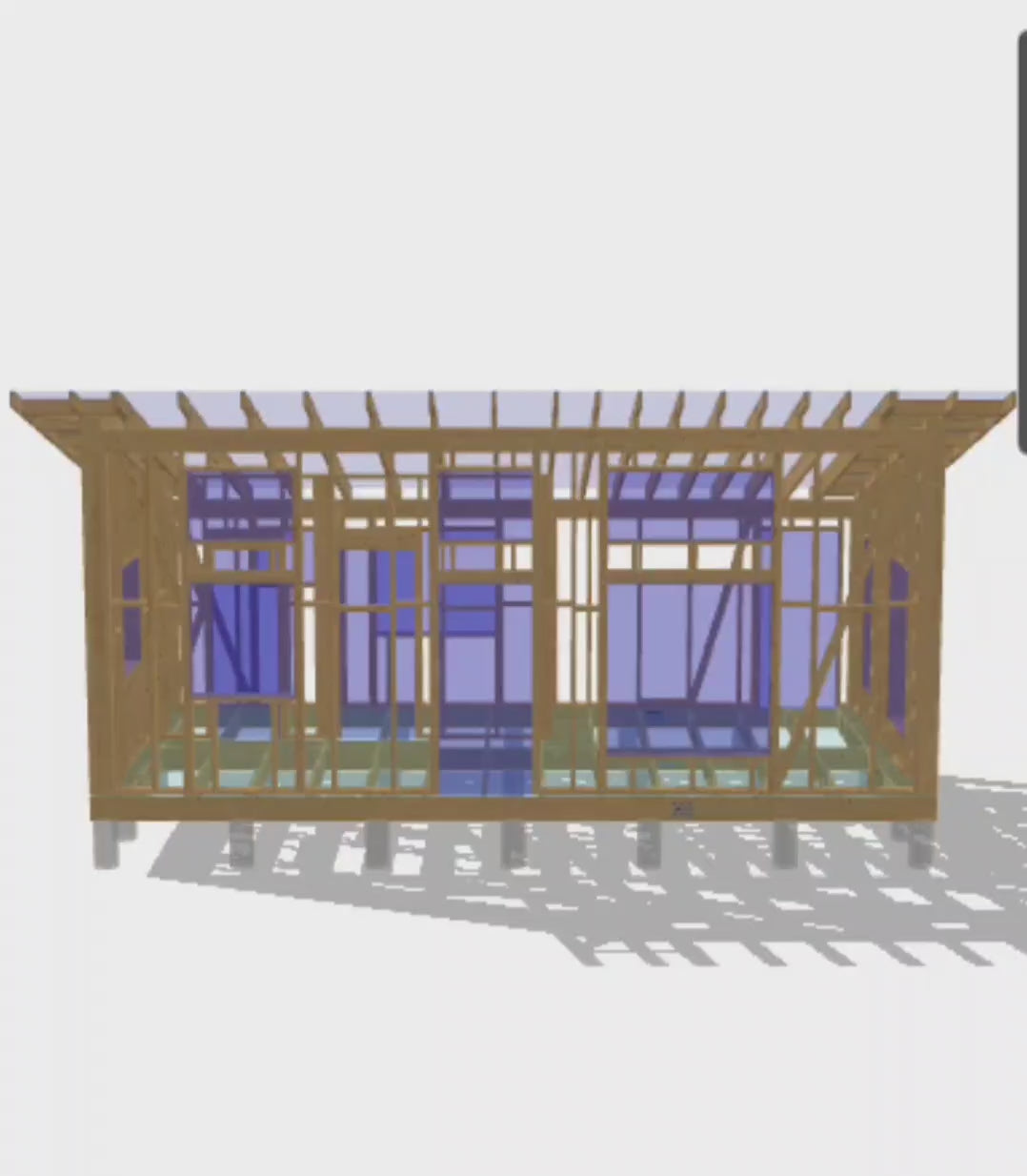

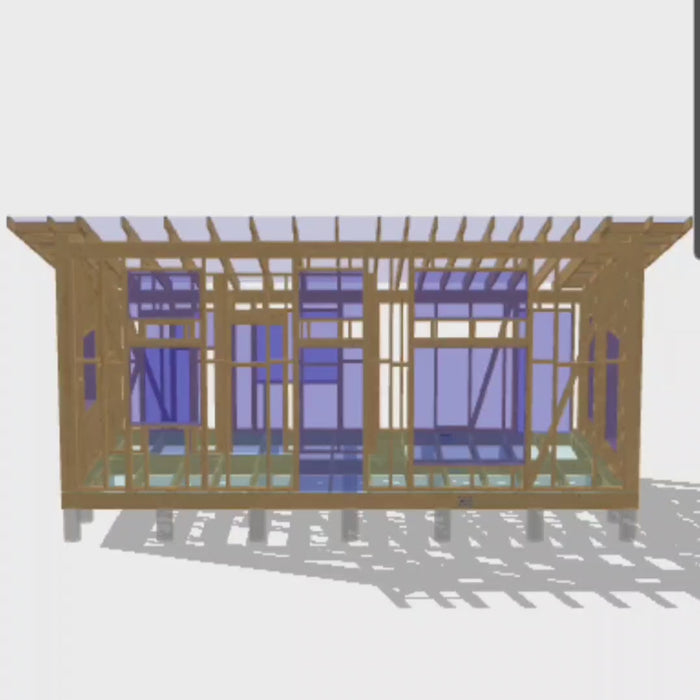

3D Visualization: Interactive 3D model accessible via QR code for spatial understanding
-
Dual Measurements: Separate folders with metric (mm) and imperial (inches) versions
This plan provides everything needed for construction. All structural connections are engineered with proper load distribution using MiTek's professional timber engineering system.
Choose Your Plan
Standard Plan includes complete PDF documentation - perfect for builders and contractors.
Pro Plan adds DWG files (for AutoCAD and CAD software), IFC files (for BIM applications like Revit), and access to MiTek Pamir viewer software for enhanced technical viewing. Choose Pro if you need to import plans into CAD software for modifications or work with BIM workflows.
