Timber Frame Cabin with Single-Pitch Rafter Roof
216" x 236" (18'0" x 19'8") / 5500 x 6000 mm
Structure Type: Timber-frame cabin with single-pitch rafter roof
Building Footprint: 33m² (354 sq ft)
Total Usable Space: 33m² (354 sq ft)
Foundation Type: Concrete slab foundation
Ideal For: Small cabins, guest houses, garden buildings, storage buildings, or retreat spaces
Structure Details
The design features 33m² (354 sq ft) of enclosed space with a single-pitch rafter roof structure, providing a modern aesthetic and efficient water drainage.
What's Included
Complete structural engineering package created with licensed MiTek Pamir software:

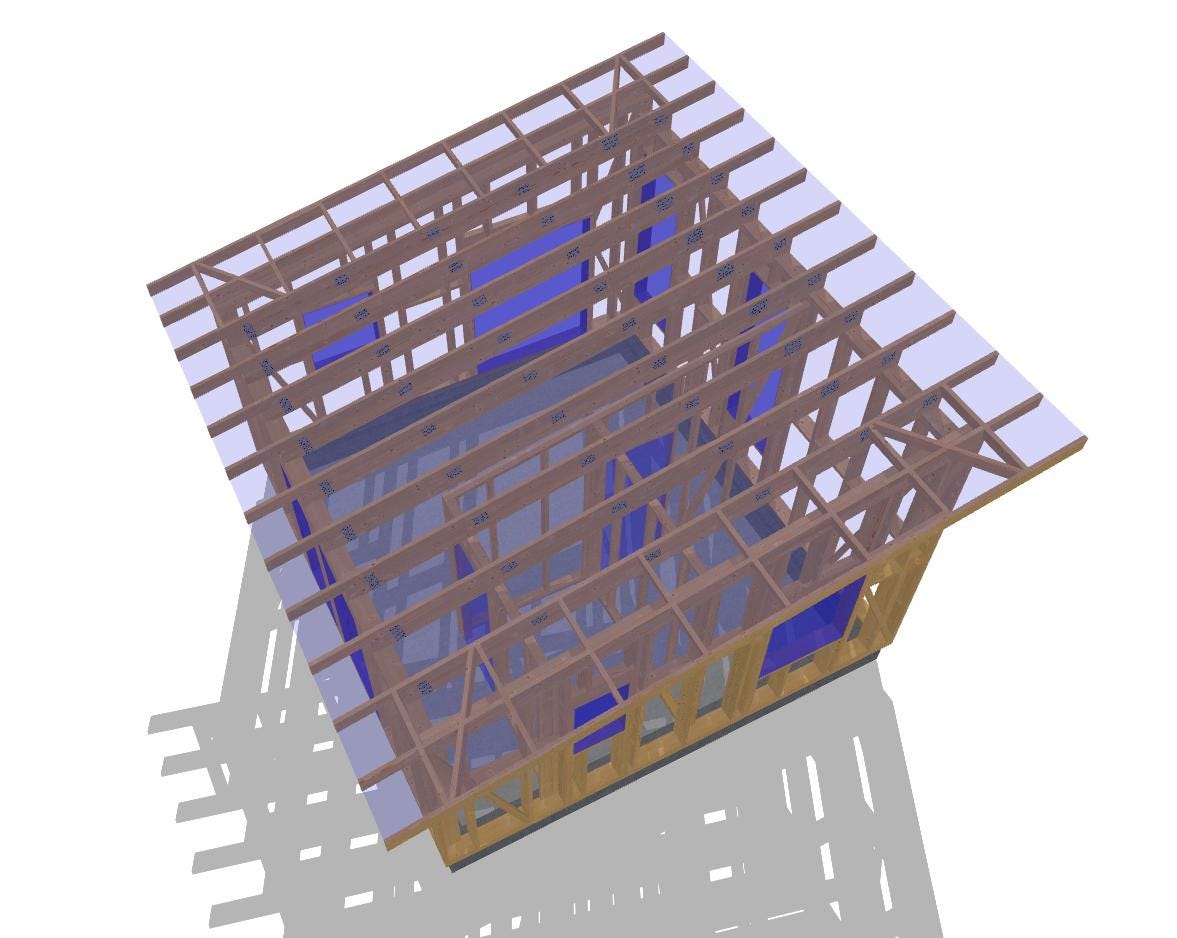

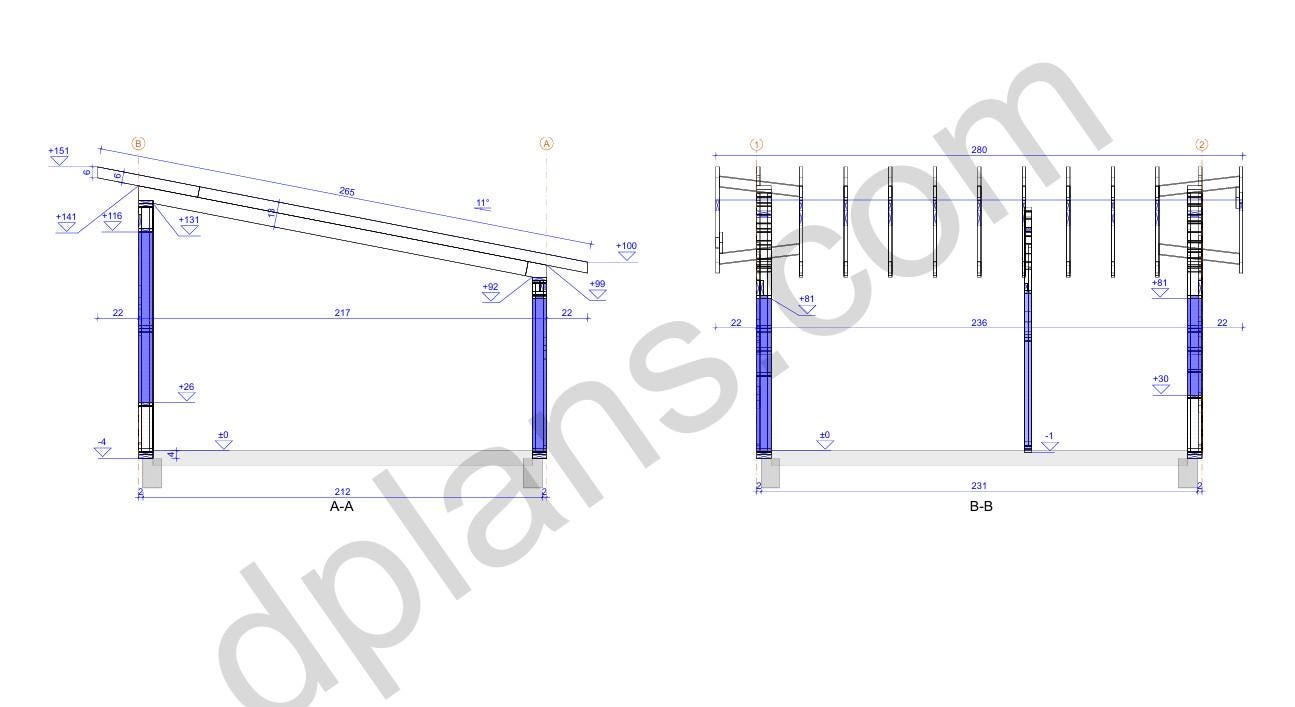

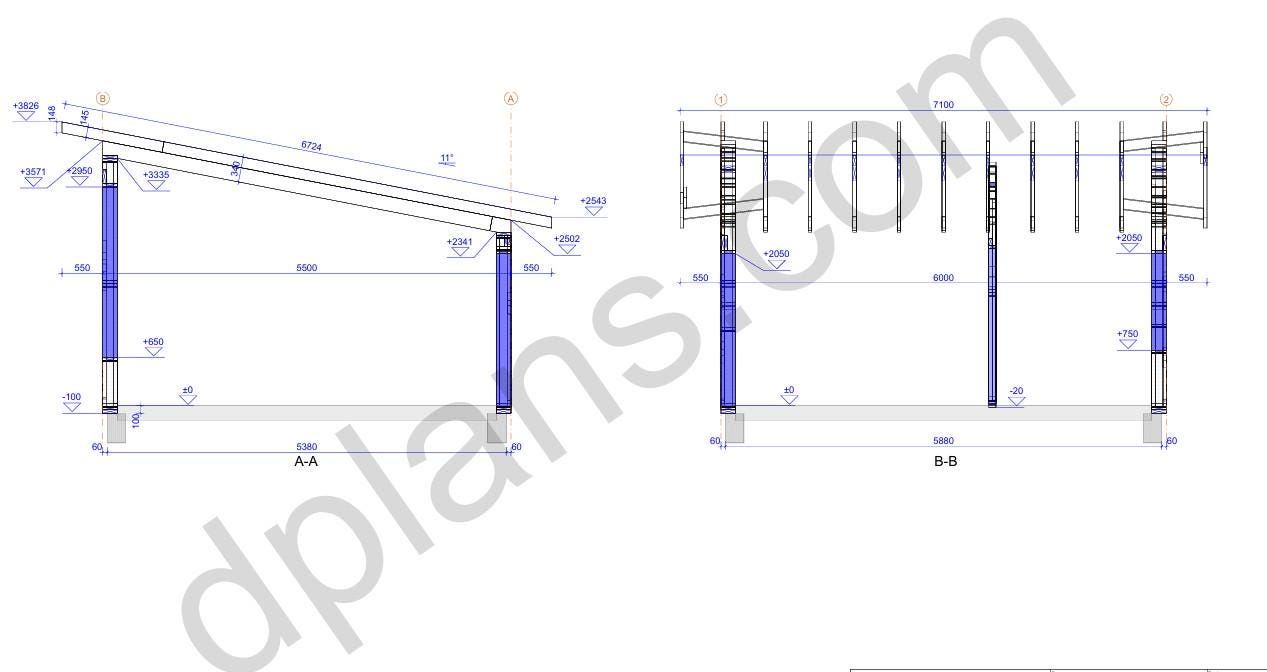

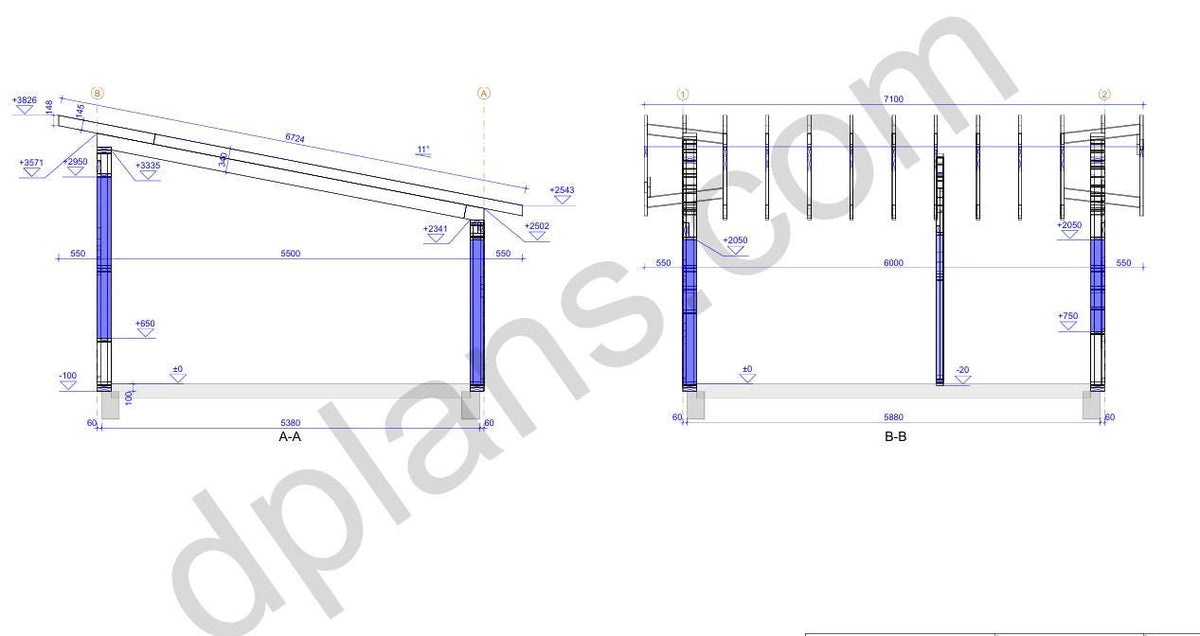

* Structural Drawings: Detailed elevations, floor plan, roof framing layout, and wall sections showing all timber members and connections
* Load Calculations: Full engineering analysis for dead loads, live loads, snow loads, and wind loads

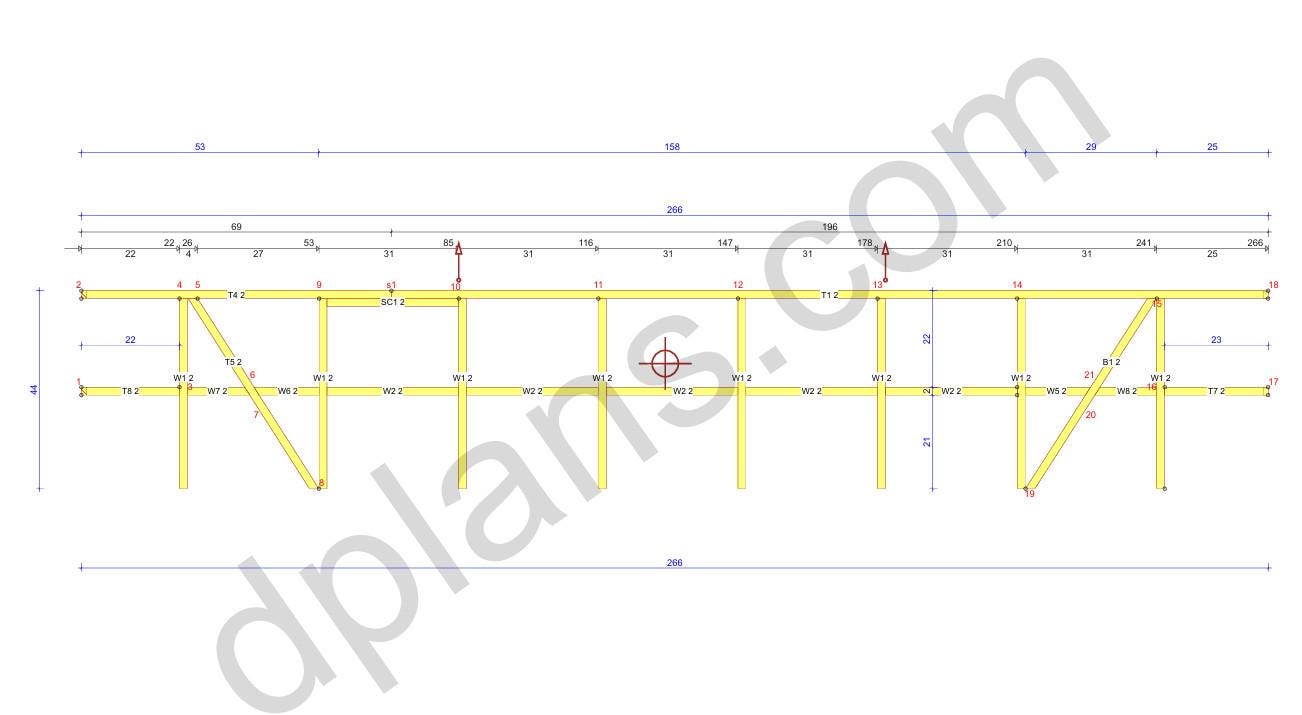

* Production Drawings: Connector plate specifications and placement (where applicable to the design)

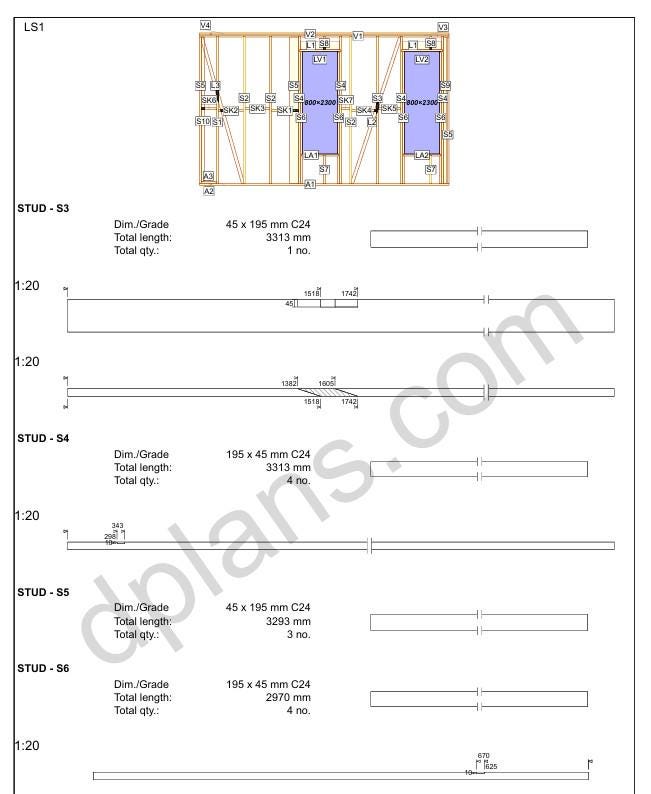

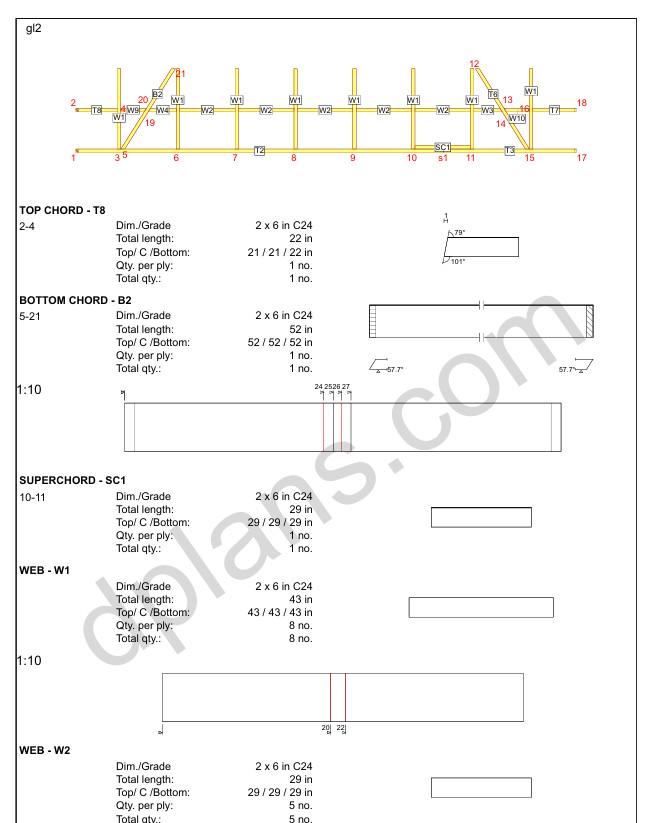

* Cutting Bills: Exact dimensions and angles for every structural member - ready for cutting
* Material Pick List: Complete timber quantities, fastener specifications, and hardware requirements
* Foundation Layout: Perimeter and support structure details with anchor points

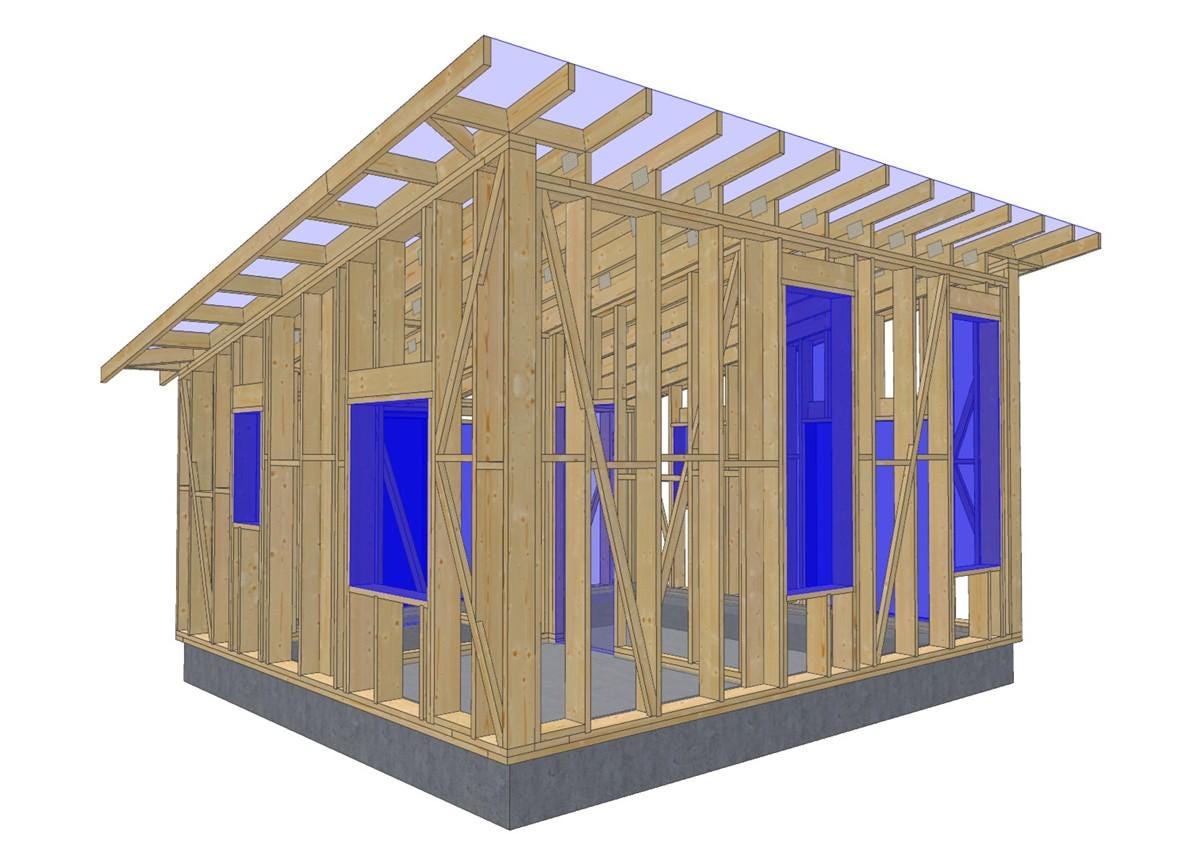

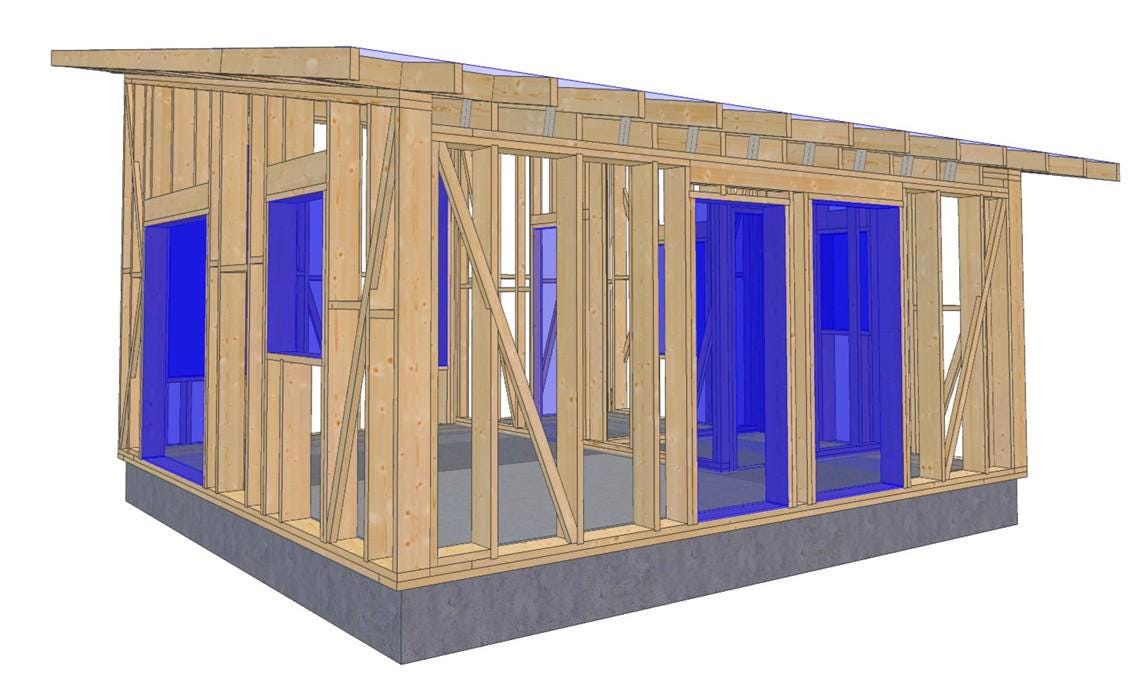

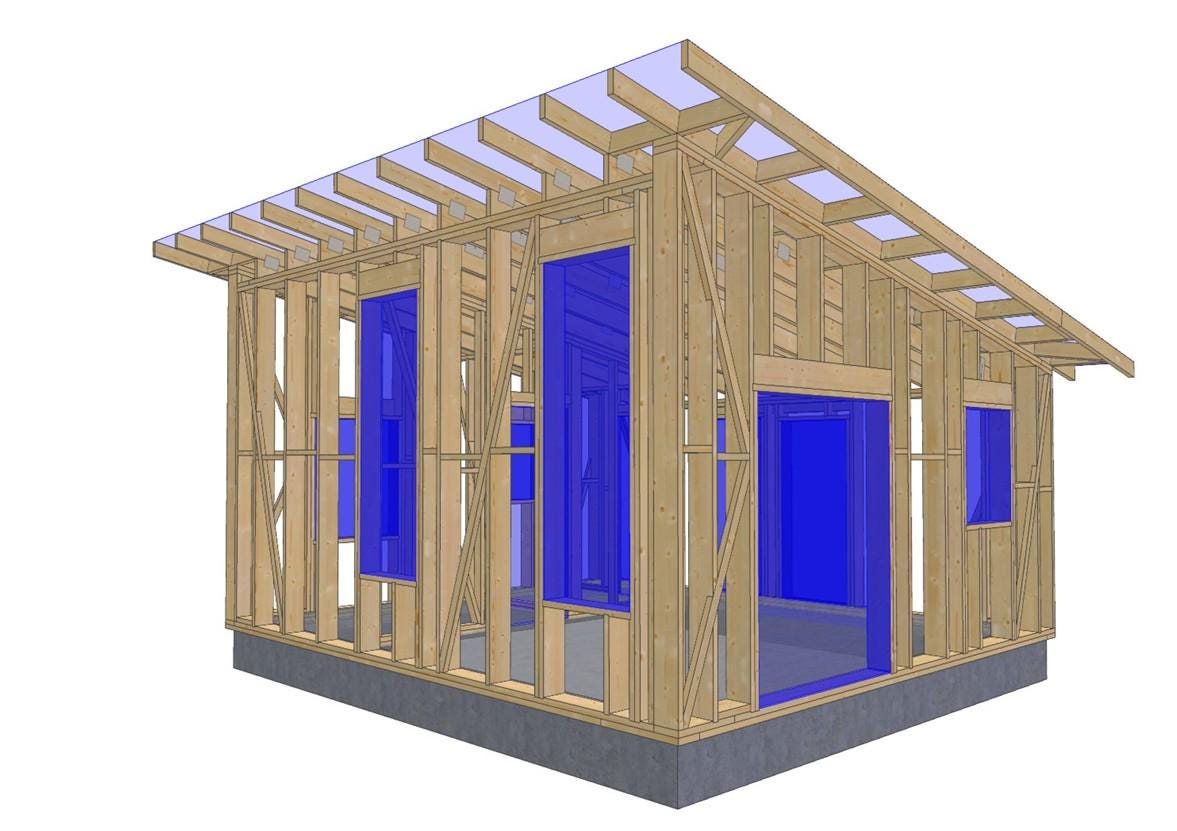

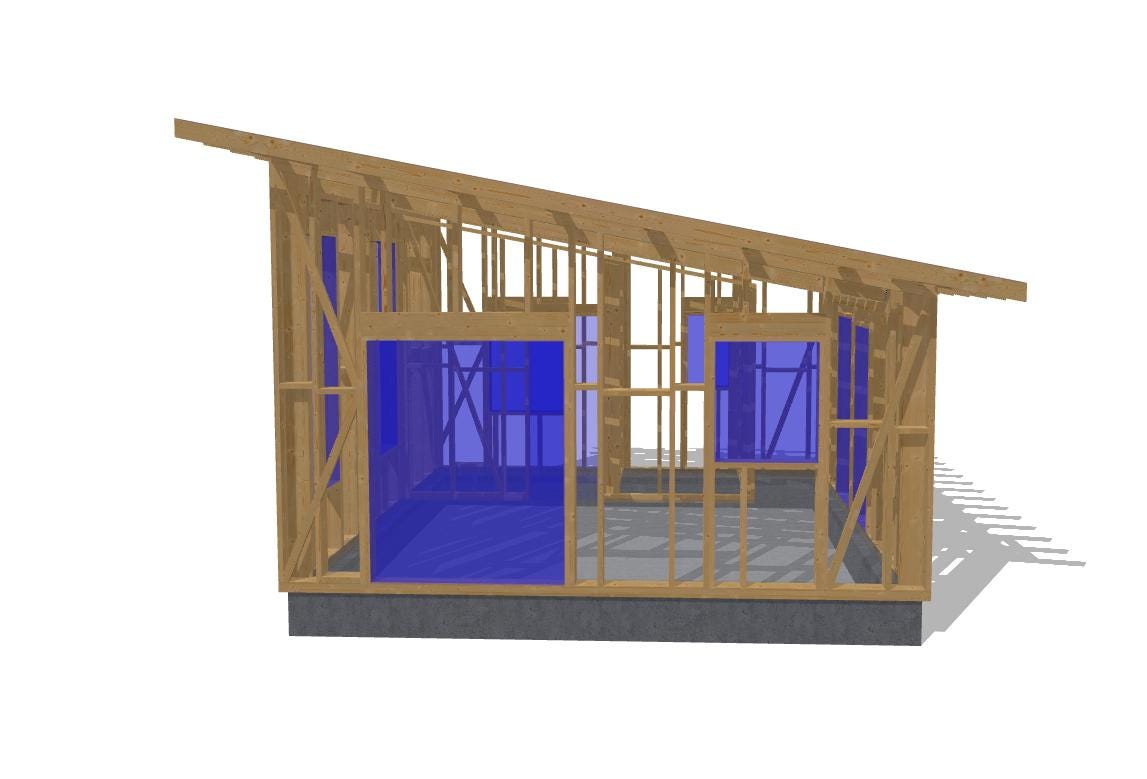

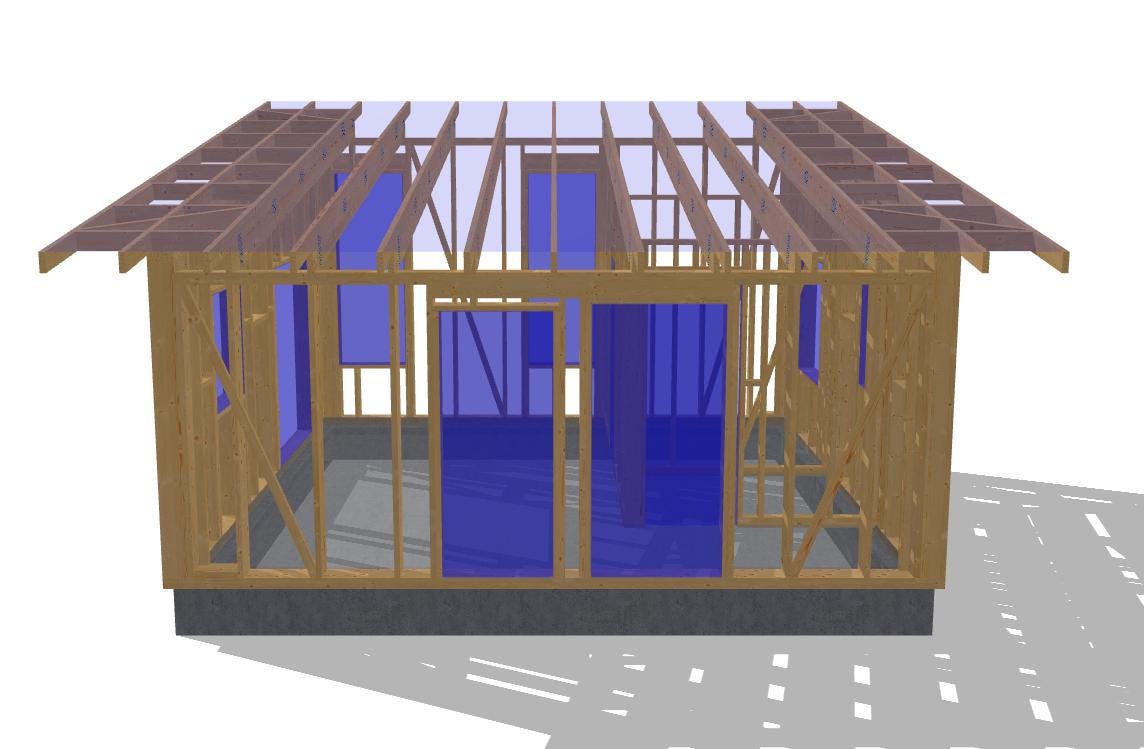

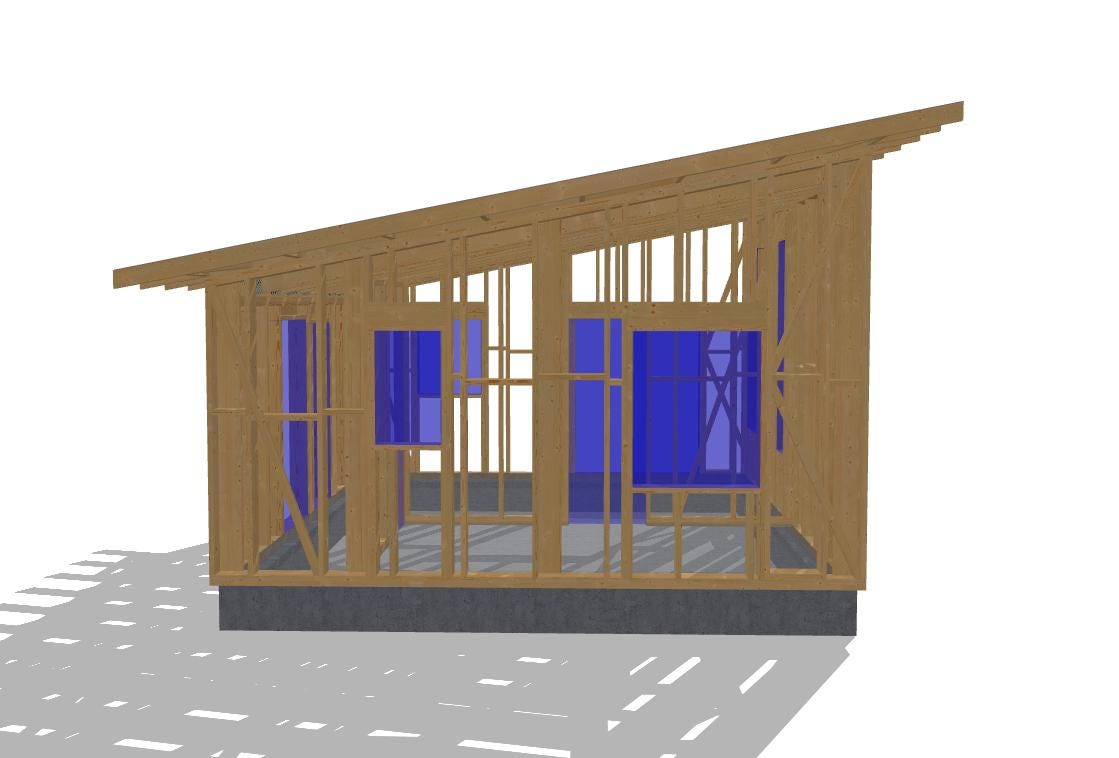

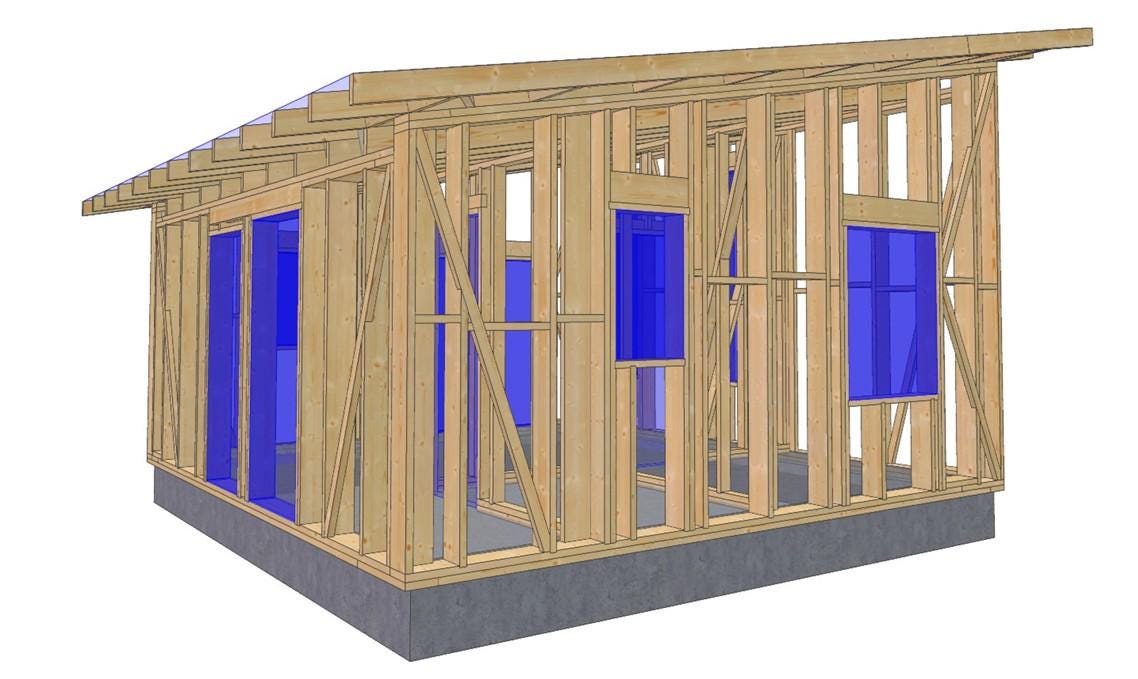

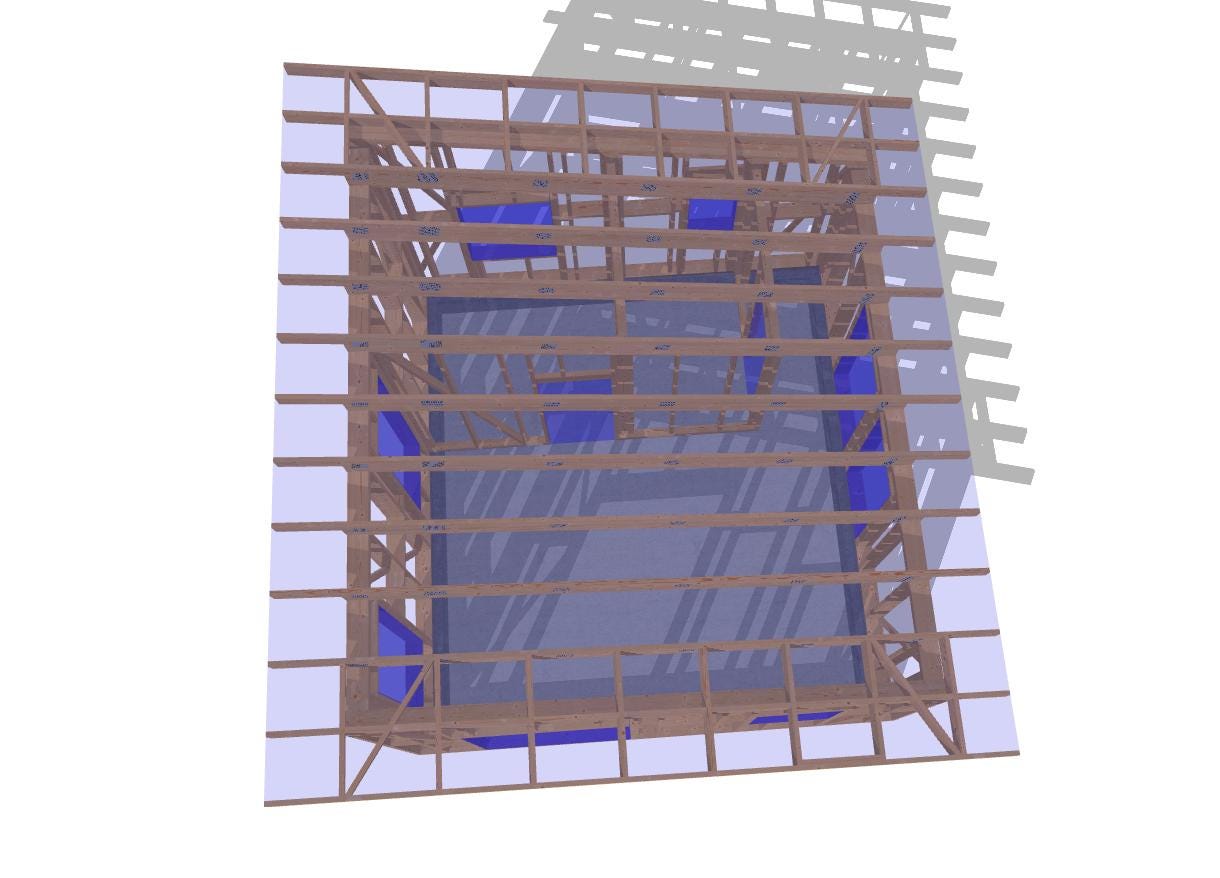

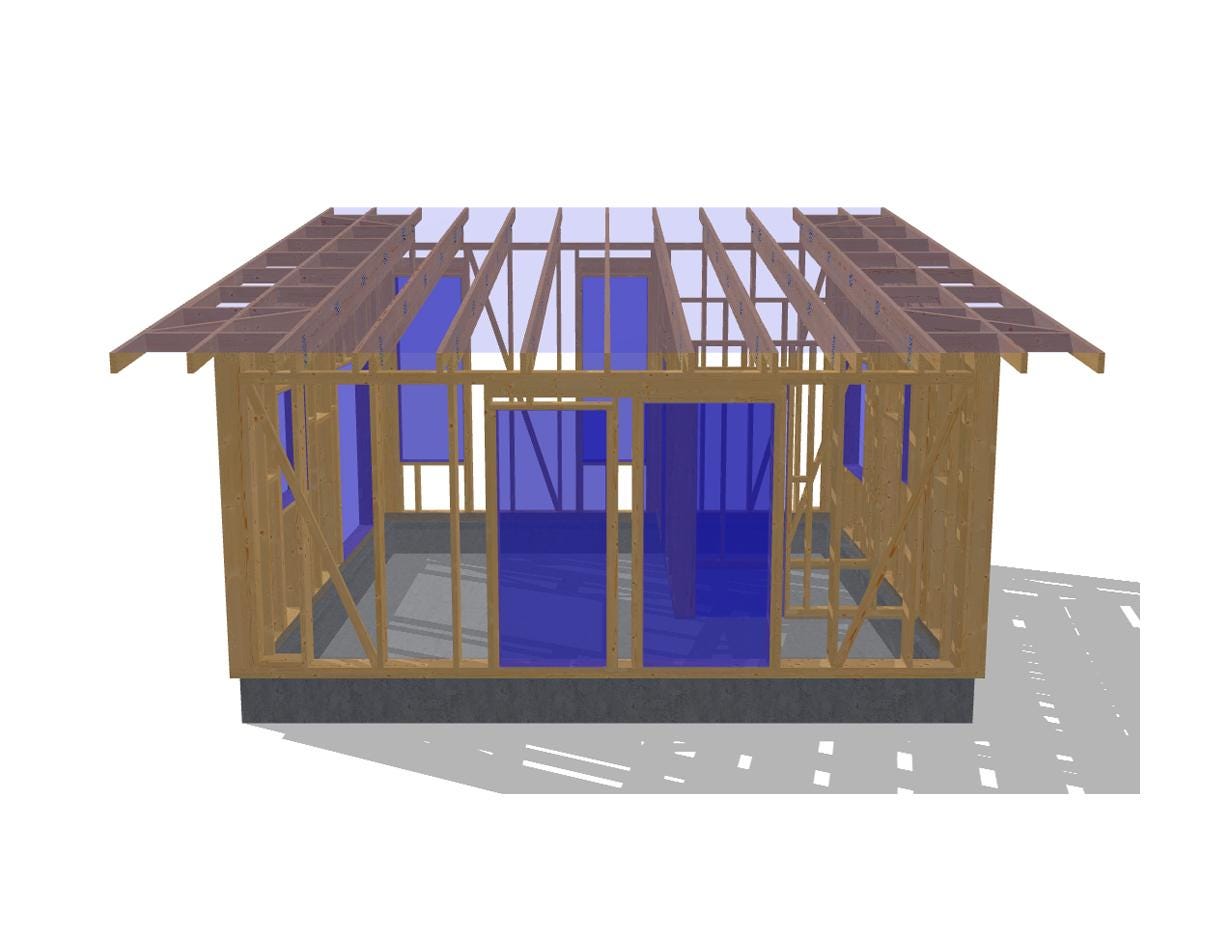

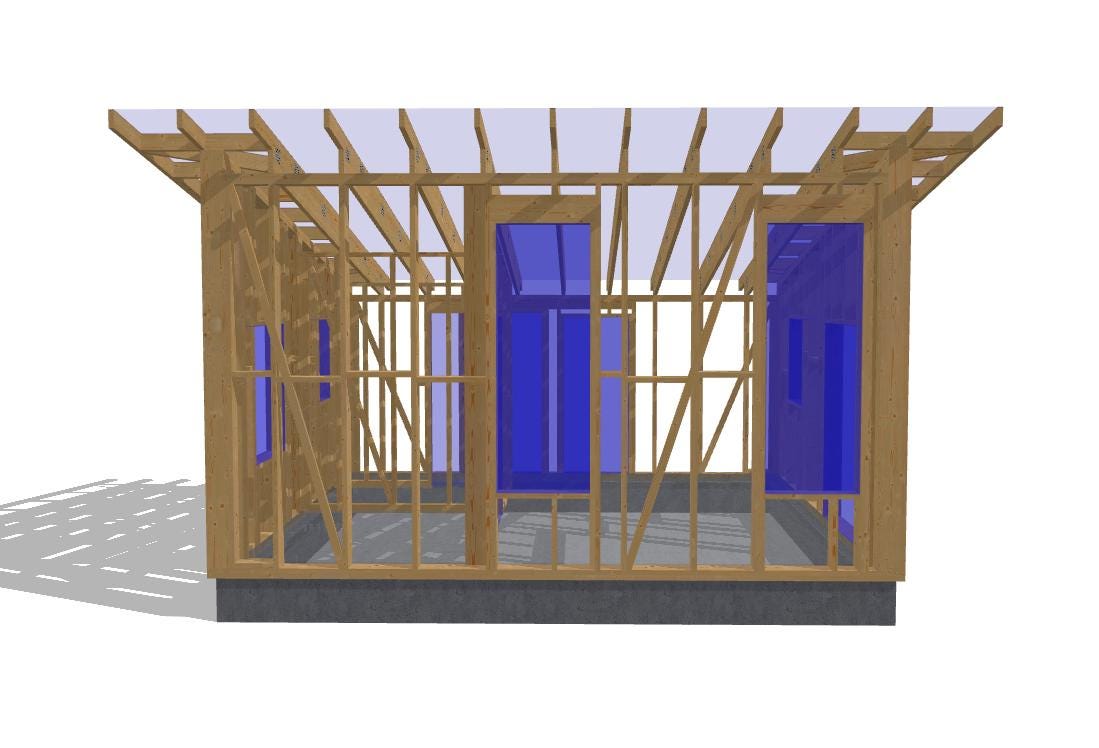

* 3D Visualization: Interactive 3D model accessible via QR code for spatial understanding
* Dual Measurements: Separate folders with metric (mm) and imperial (inches) versions
This plan provides everything needed for construction. All structural connections are engineered with proper load distribution using MiTek's professional timber engineering system.
Choose Your Plan
Standard Plan includes complete PDF documentation - perfect for builders and contractors.
Pro Plan adds DWG files (for AutoCAD and CAD software), IFC files (for BIM applications like Revit), and access to MiTek Pamir viewer software for enhanced technical viewing. Choose Pro if you need to import plans into CAD software for modifications or work with BIM workflows.
