Sauna / Small Cabin with Entrance 43m² (463 sq ft) - DP2025P001
Structure Type: Timber-frame sauna or cabin on elevated foundation
Building Area: 43m² (463 sq ft)
Foundation Type: Screw/pile foundation
Ideal For: Traditional saunas, steam rooms, small cabins, wellness spaces, or guest cottages
Structure Details
This elevated structure features a traditional gable roof design with engineered roof trusses and a covered entrance area. The 43m² (463 sq ft) interior provides flexible space for a sauna room with changing area, or can be configured as a small cabin with living space. The elevated screw/pile foundation allows for installation on various terrain types and provides excellent ventilation beneath the structure, essential for sauna buildings. The covered entrance protects from weather and adds functional outdoor space. Structural members are optimized for standard dimensional lumber availability.
What's Included
Complete structural engineering package created with licensed MiTek Pamir software:
-

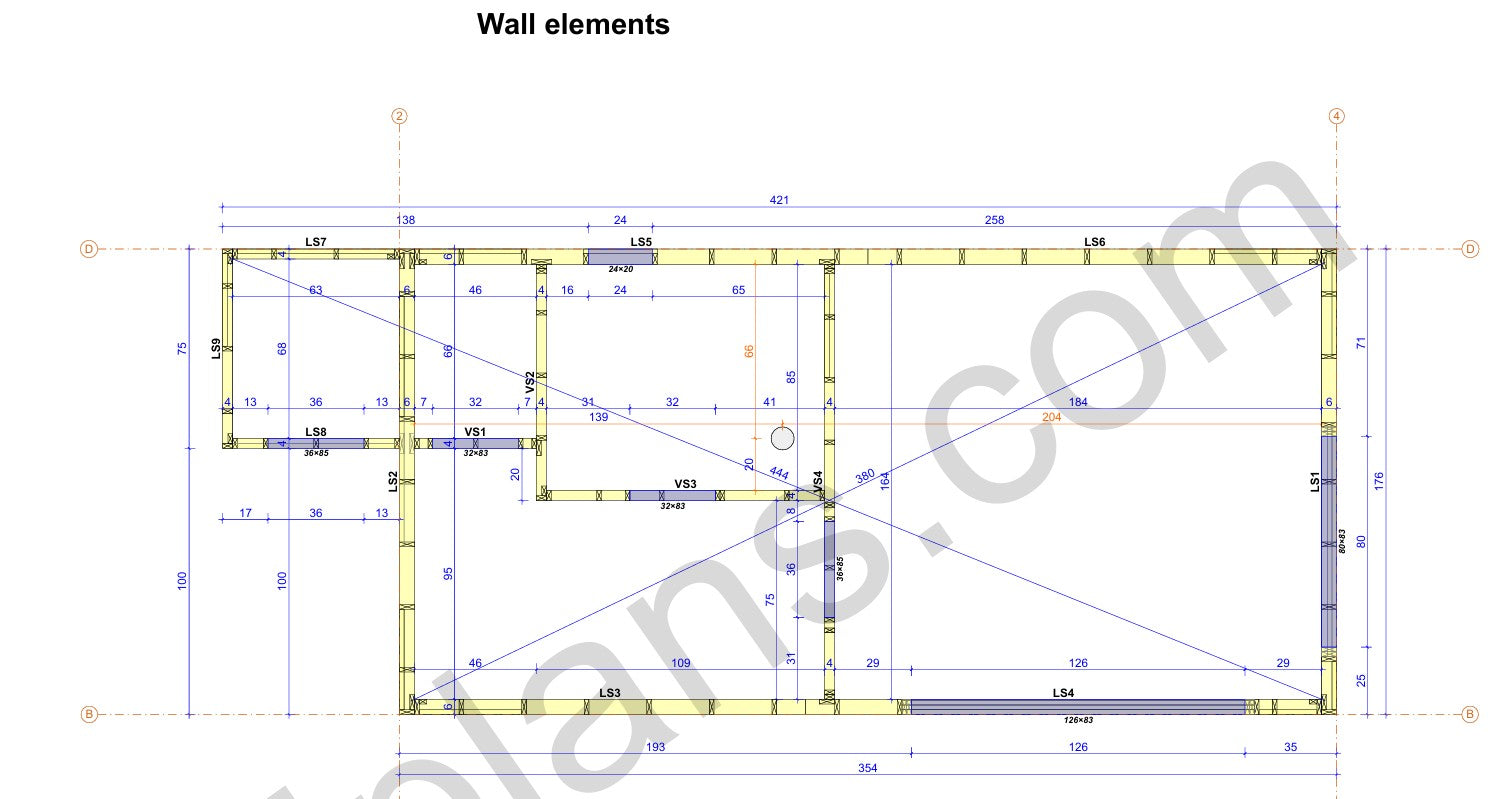

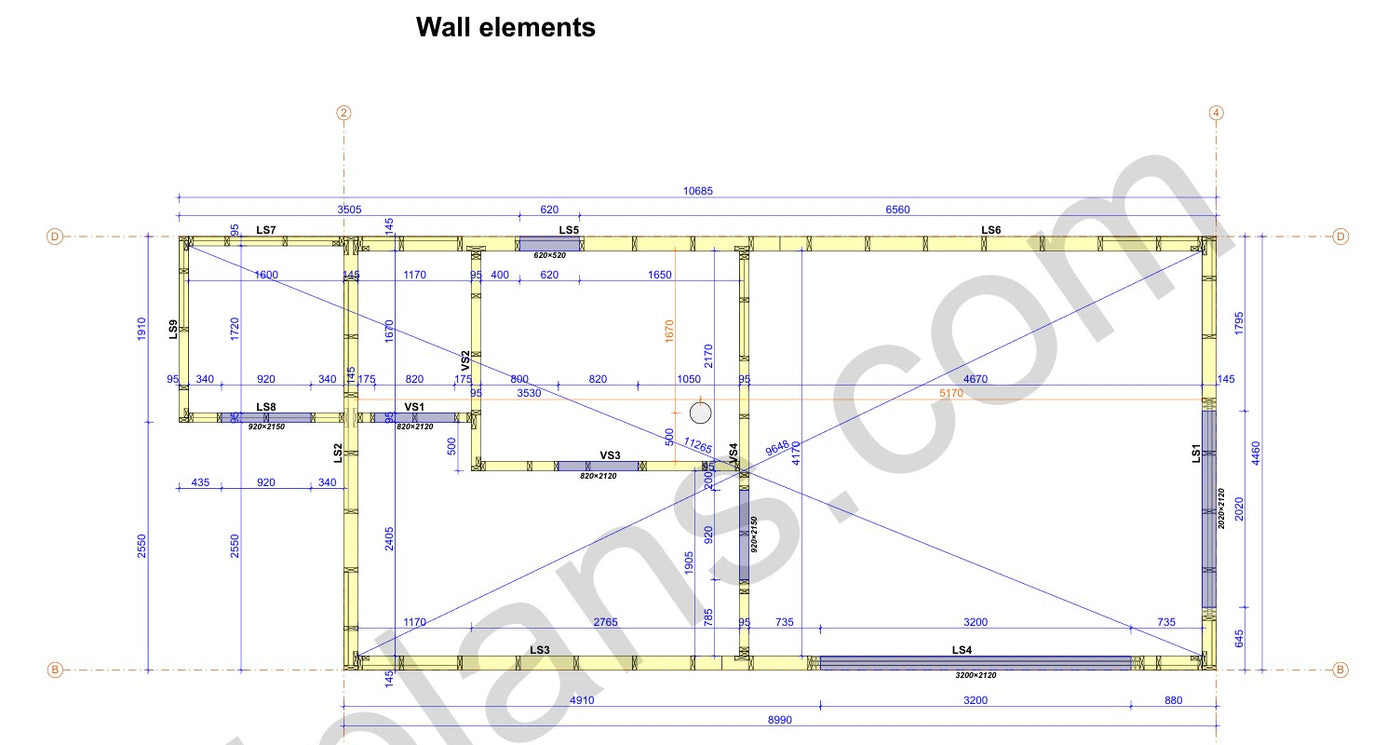

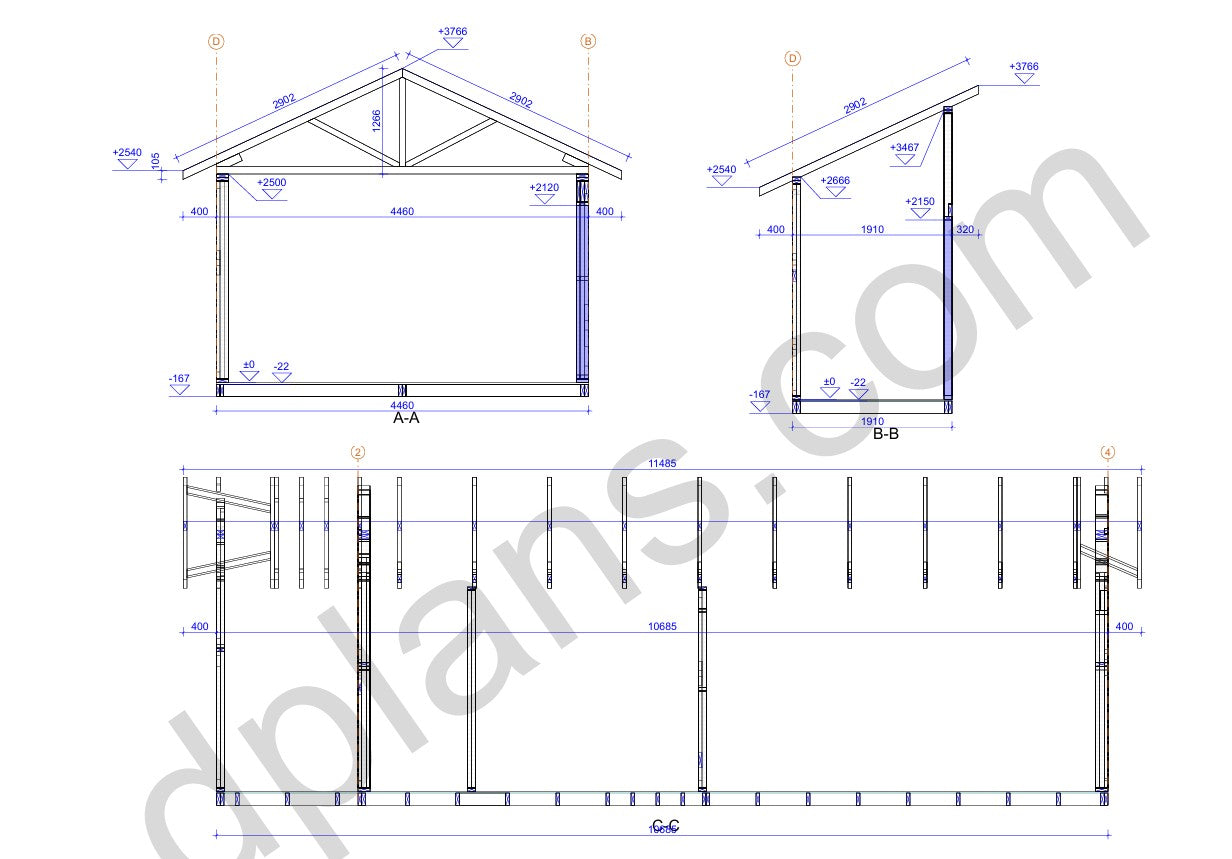

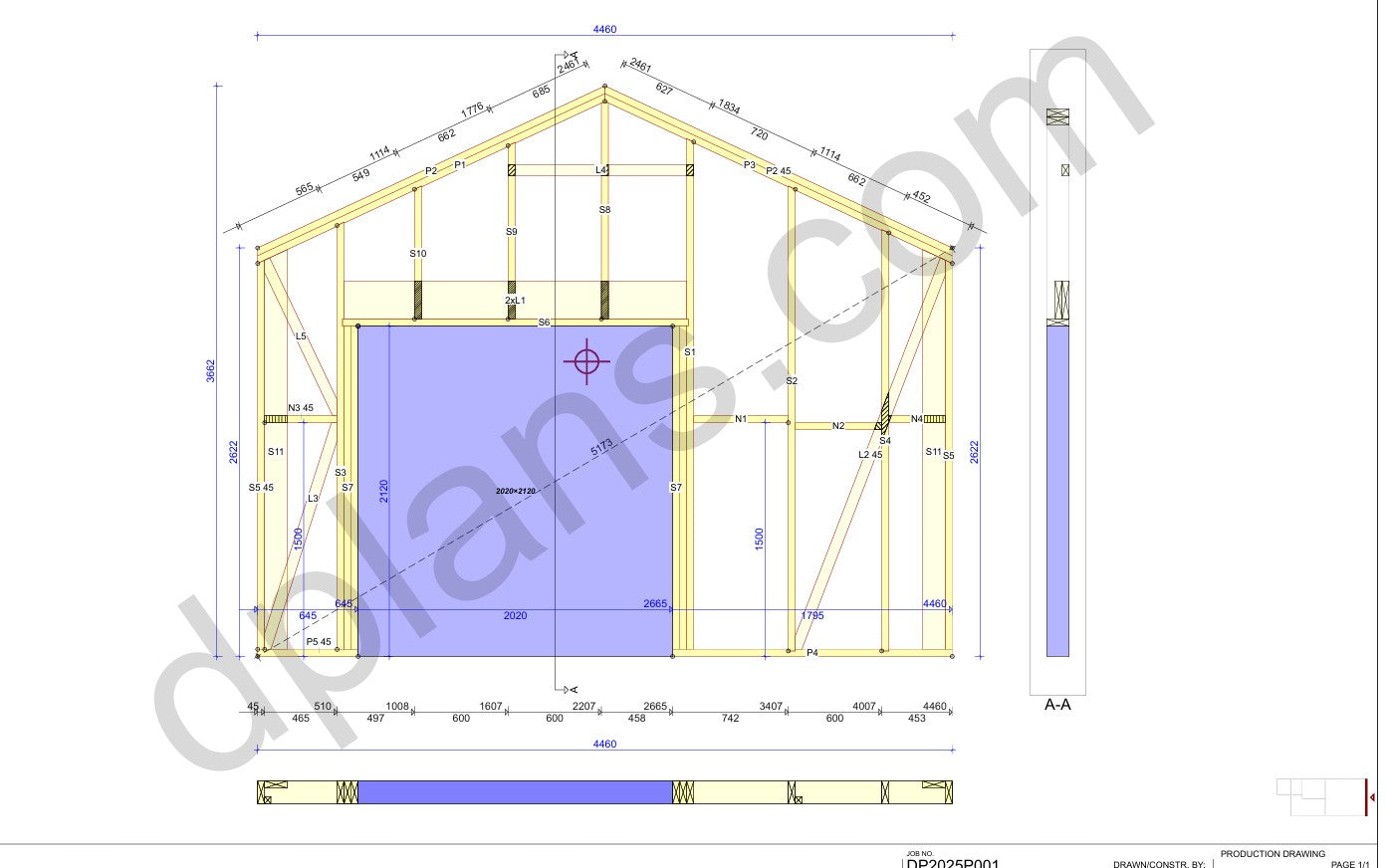

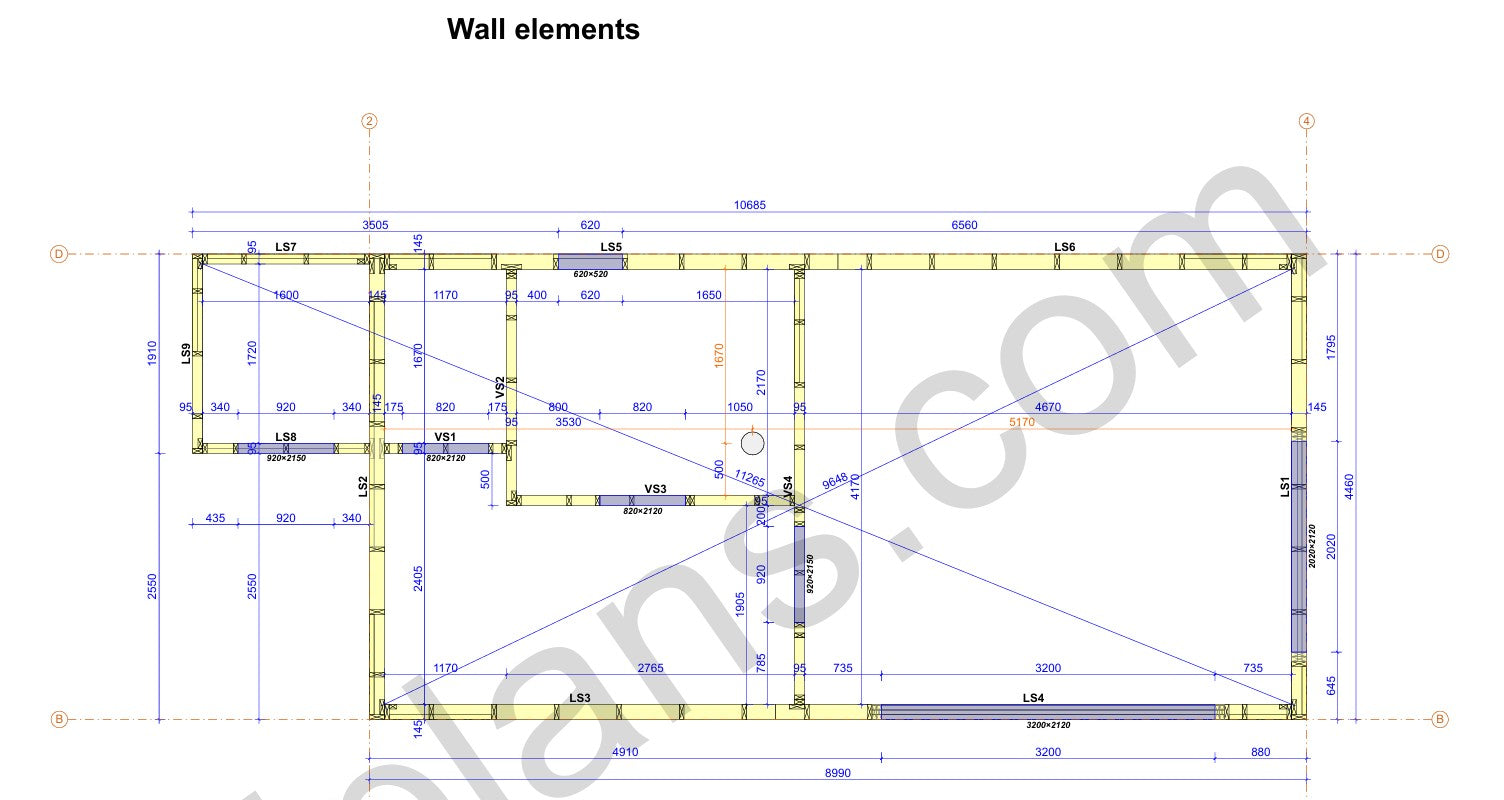

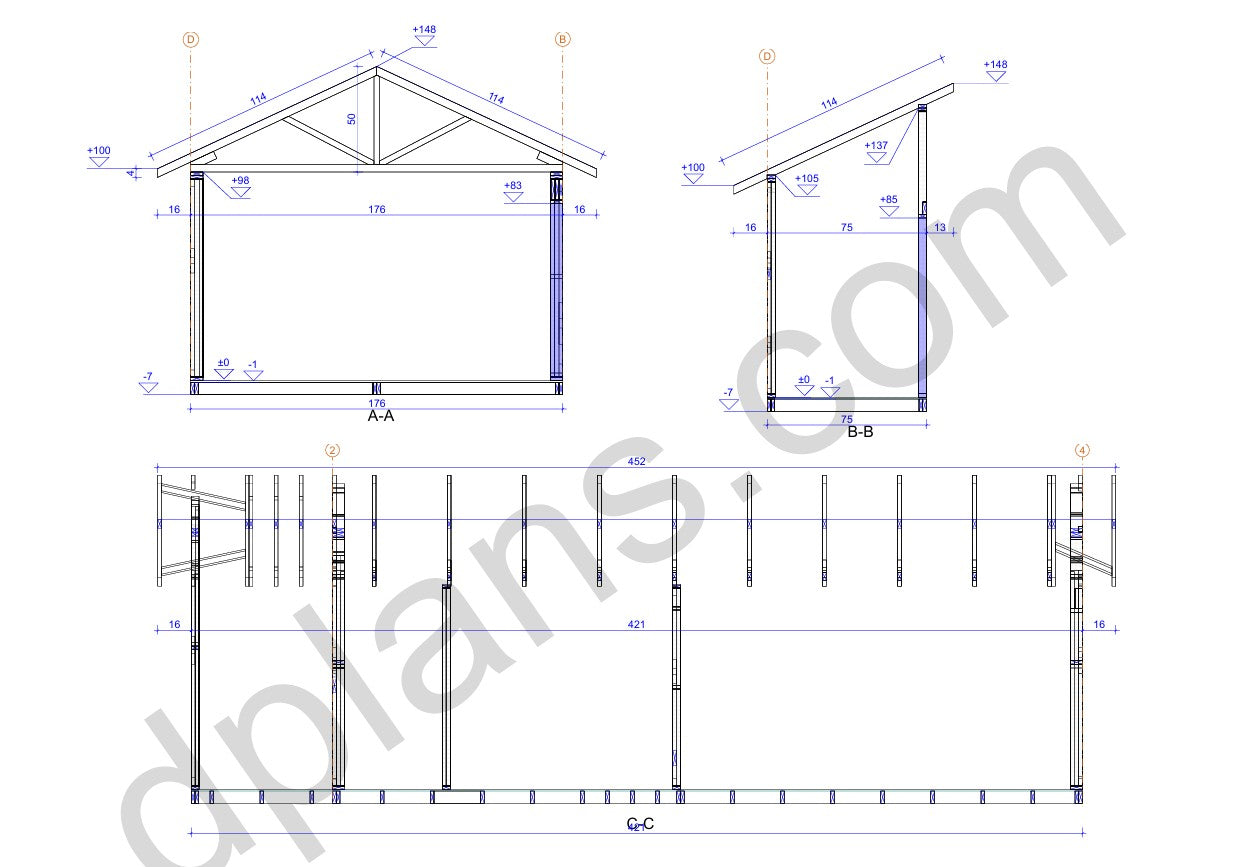

Structural Drawings: Detailed elevations, floor plan, roof framing layout, and wall sections showing all timber members and connections
-
Load Calculations: Full engineering analysis for dead loads, live loads, snow loads, and wind loads
-
Production Drawings: Connector plate specifications and placement (where applicable to the design)
-

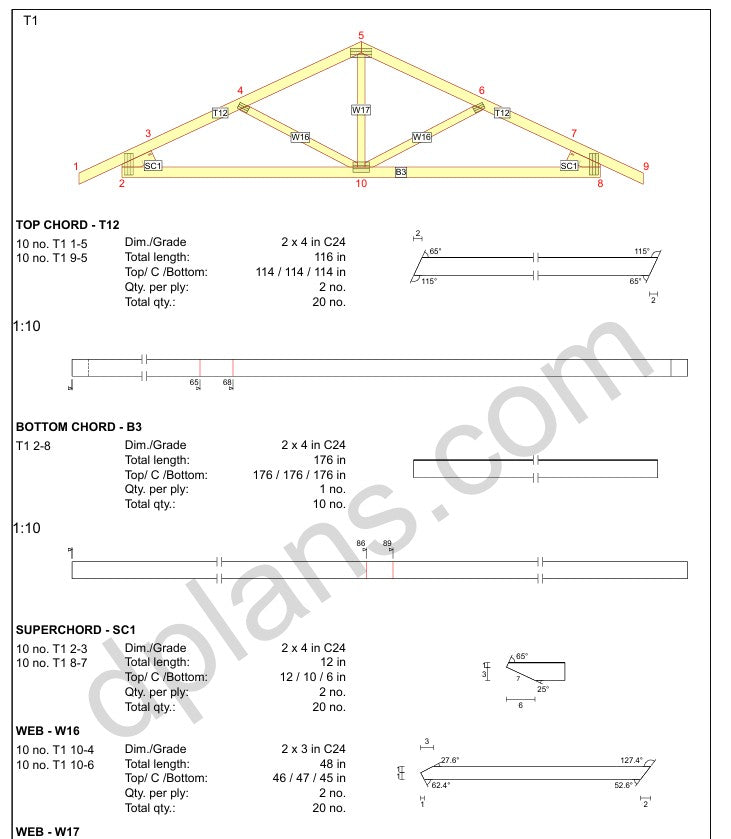

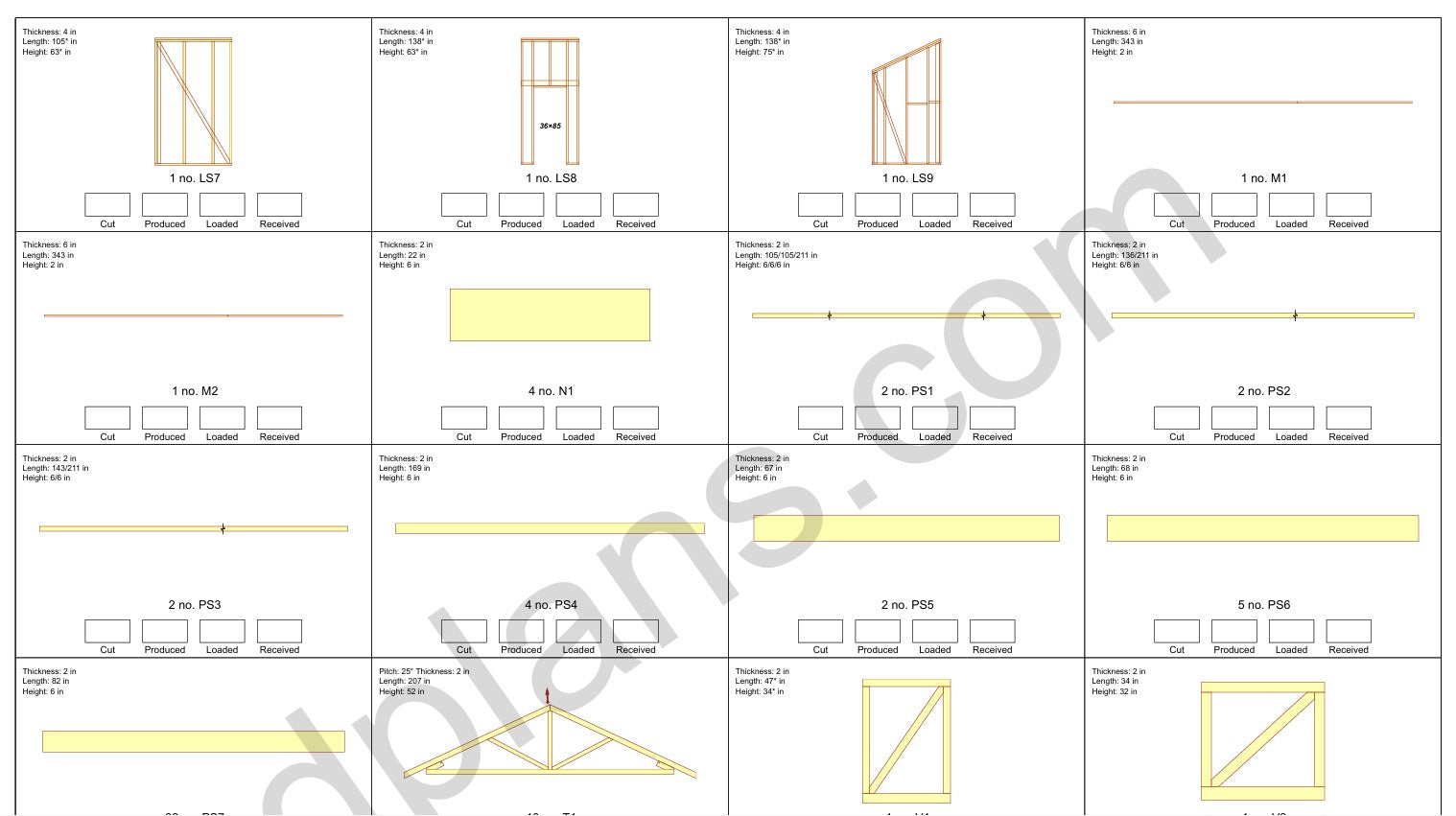

Cutting Bills: Exact dimensions and angles for every structural member - ready for cutting
-
Material Pick List: Complete timber quantities, fastener specifications, and hardware requirements
-
Foundation Layout: Perimeter and support structure details with anchor points
-

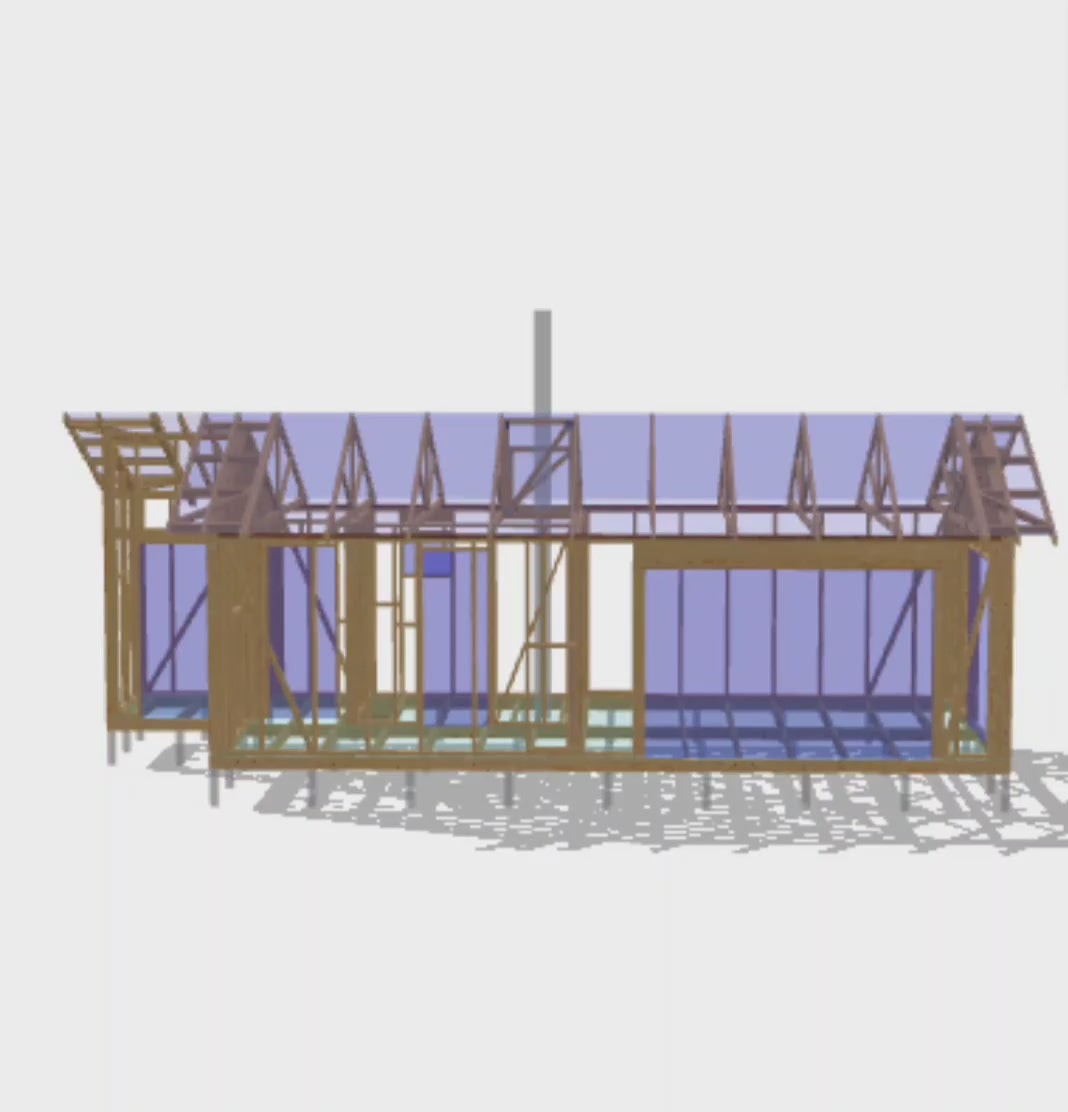

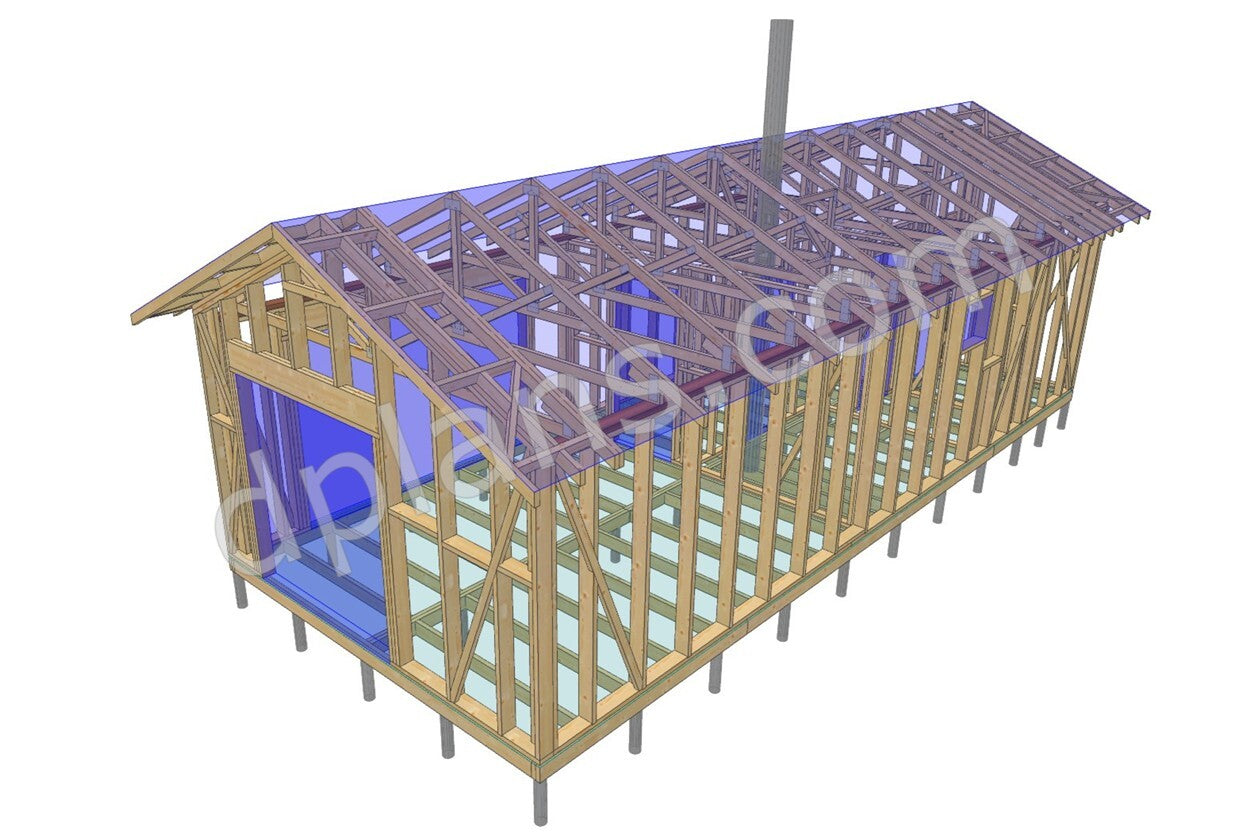

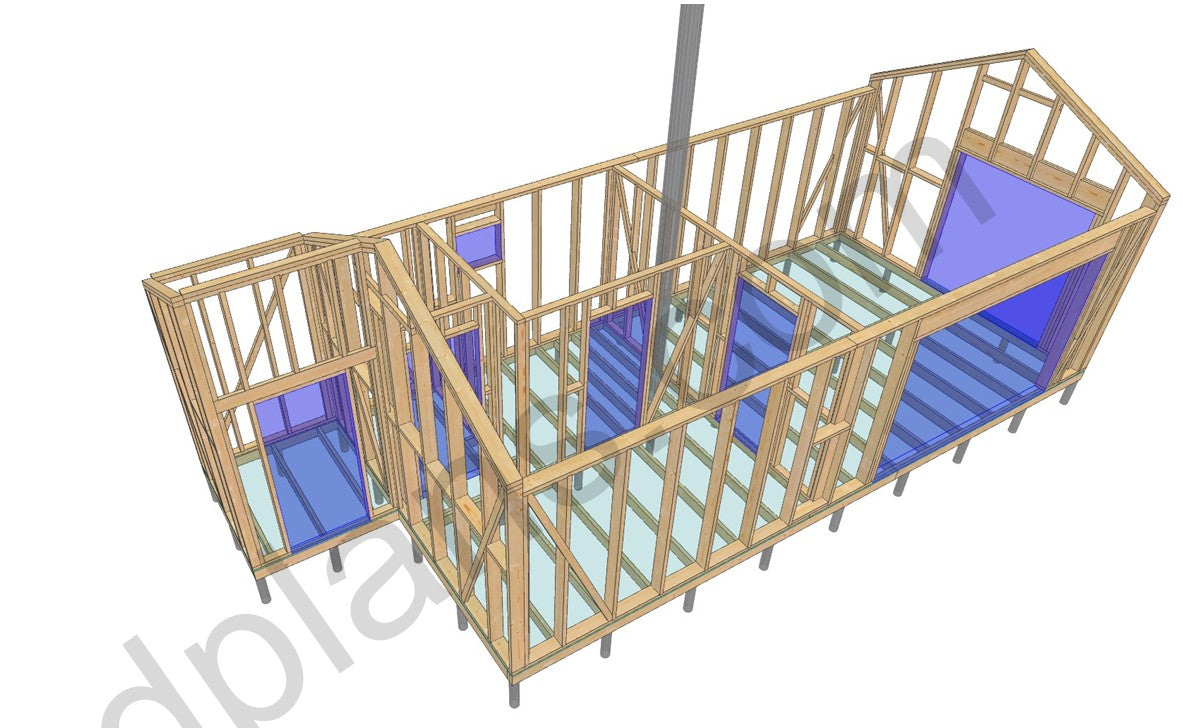

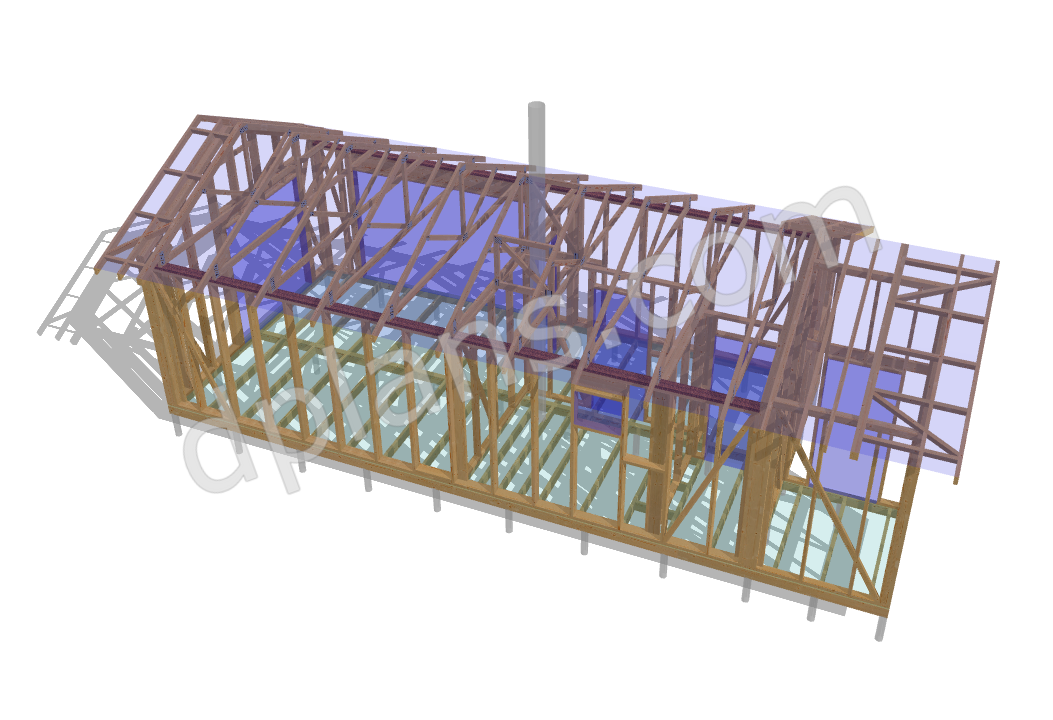

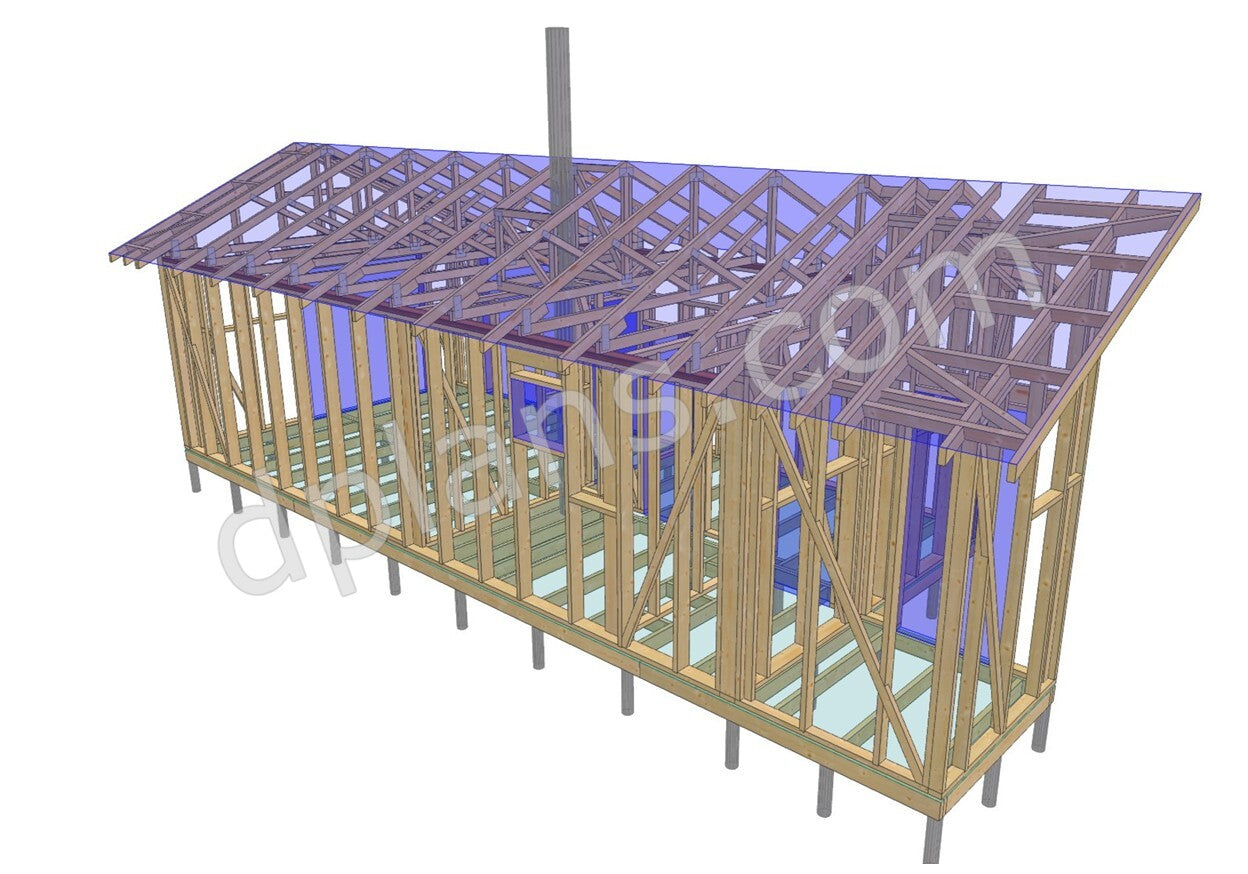

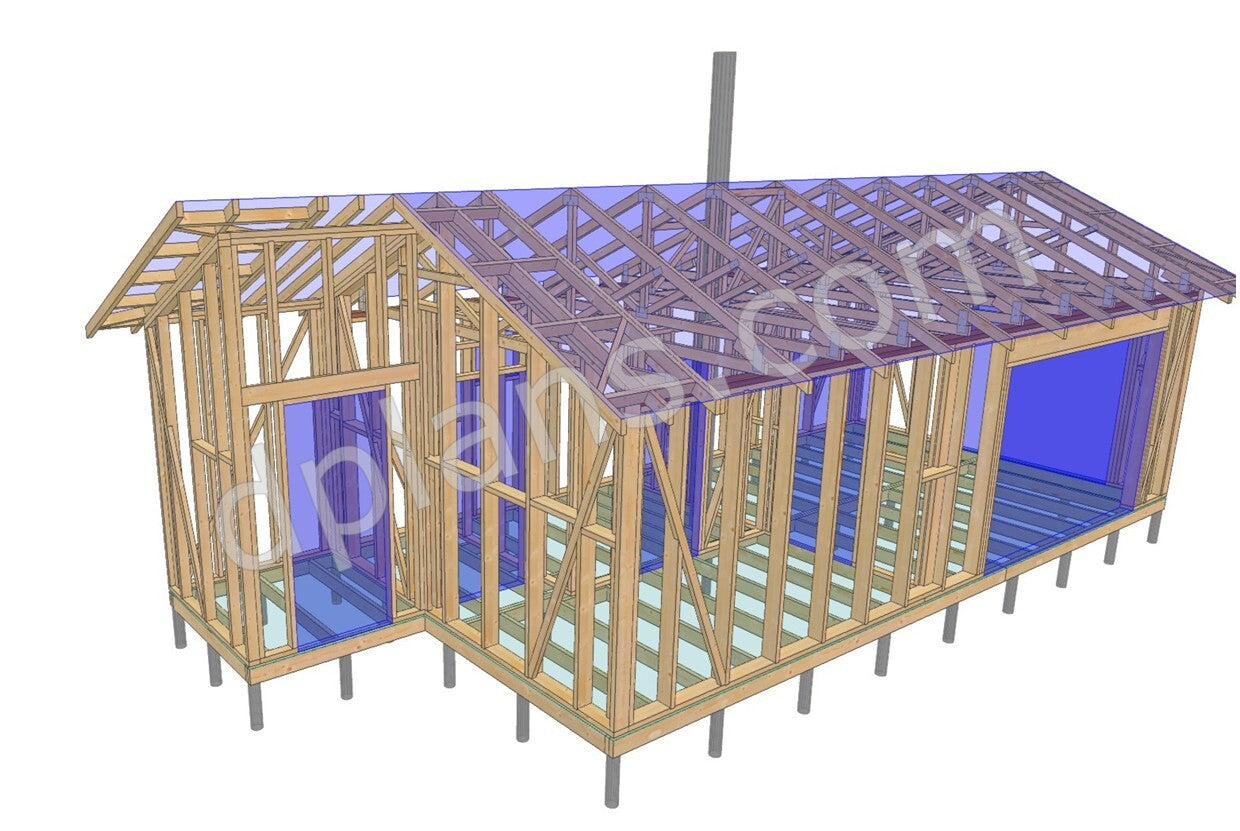

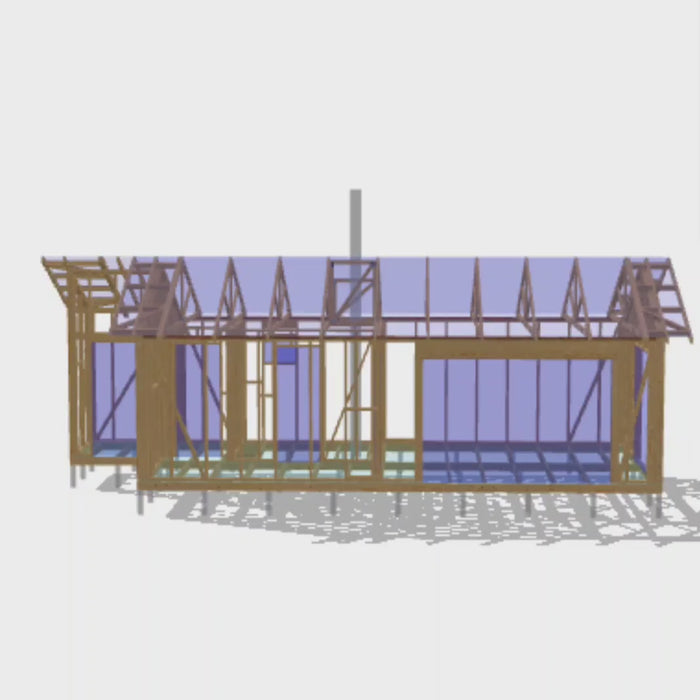

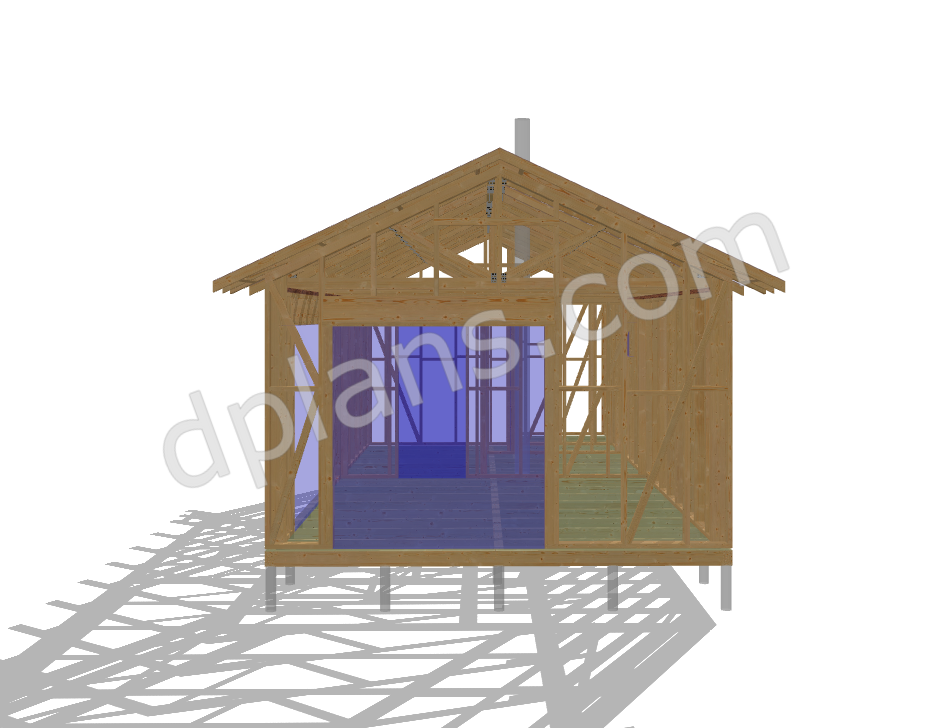

3D Visualization: Interactive 3D model accessible via QR code for spatial understanding
-

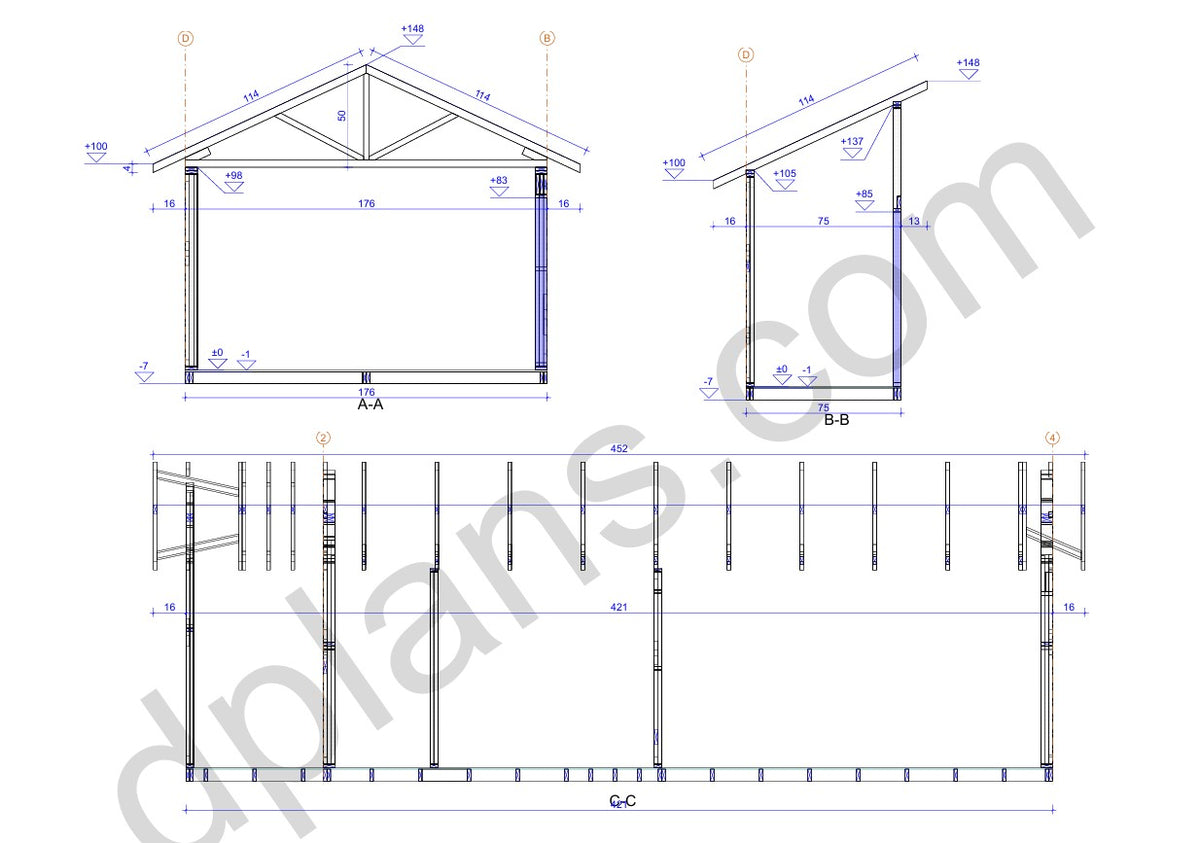

Dual Measurements: Separate folders with metric (mm) and imperial (inches) versions
This plan provides everything needed for construction. All structural connections are engineered with proper load distribution using MiTek's professional timber engineering system.
Choose Your Plan
Standard Plan includes complete PDF documentation - perfect for builders and contractors.
Pro Plan adds DWG files (for AutoCAD and CAD software), IFC files (for BIM applications like Revit), and access to MiTek Pamir viewer software for enhanced technical viewing. Choose Pro if you need to import plans into CAD software for modifications or work with BIM workflows.
