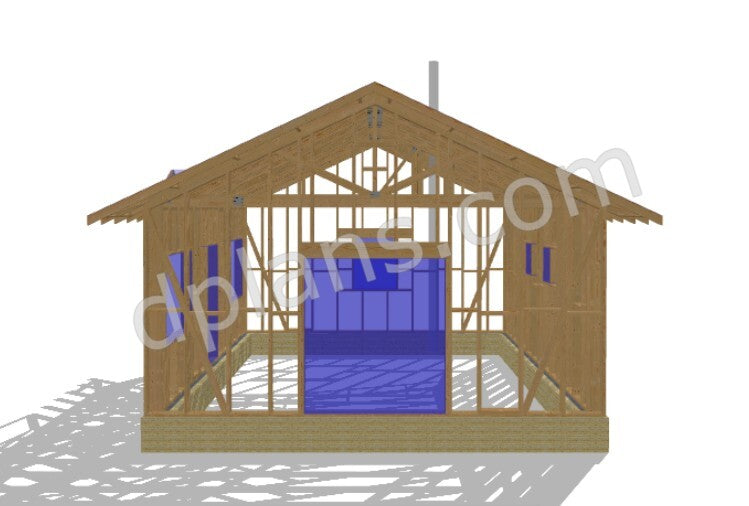

Sauna 56m² (603 sq ft) - DP2024S784
Structure Type: Timber-frame sauna on elevated foundation
Building Footprint: 56m² (603 sq ft)
Usable Area: 50m² (538 sq ft)
Foundation Type: Concrete slab foundation
Ideal For: Traditional saunas, steam rooms, wellness facilities, or spa buildings
Structure Details

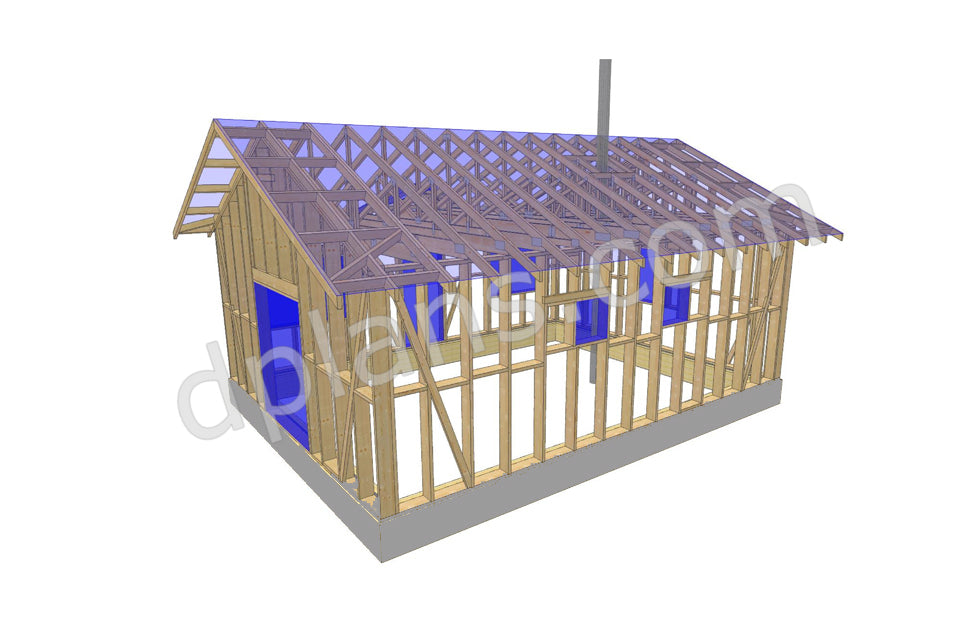

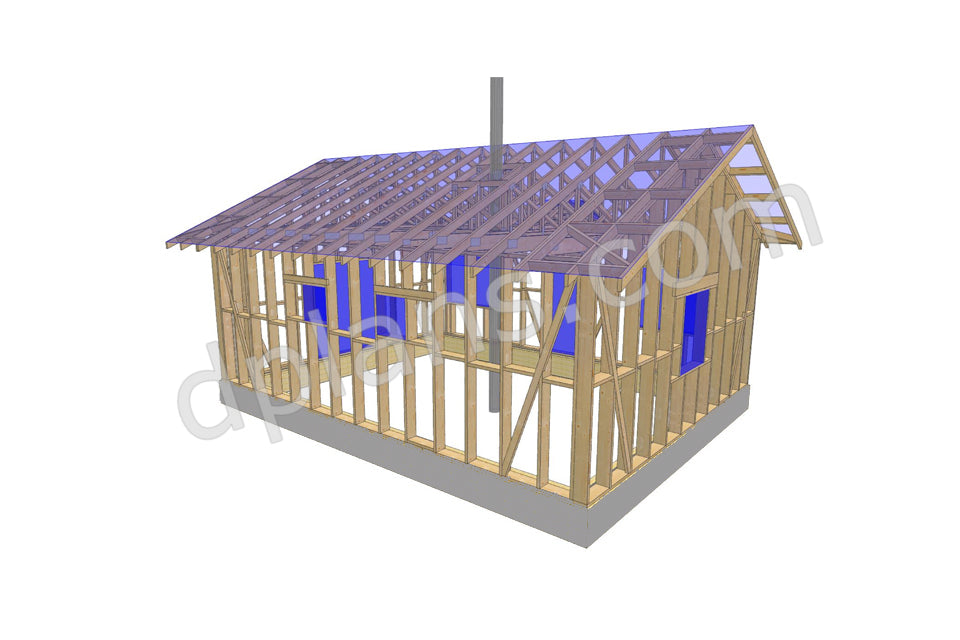

This spacious sauna features a traditional gable roof design with an elevated foundation system. The 50m² (538 sq ft) usable area provides ample space for a sauna room, changing area, relaxation space, and storage. The elevated screw/pile foundation allows for installation on various terrain types and provides excellent ventilation beneath the structure, essential for sauna buildings. The timber-frame construction ensures proper structural support for high-humidity environments. Structural members are optimized for standard dimensional lumber availability.
What's Included
Complete structural engineering package created with licensed MiTek Pamir software:
-

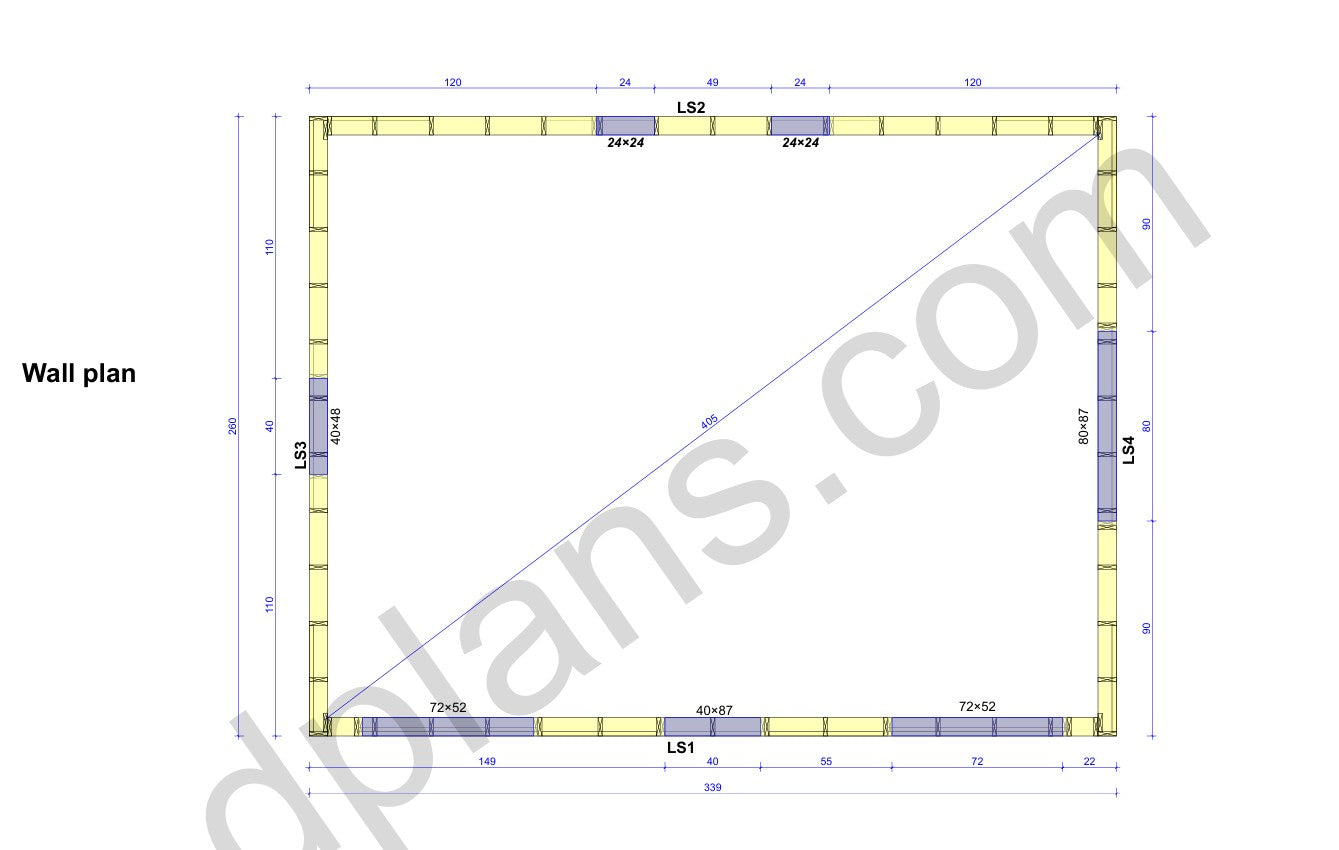

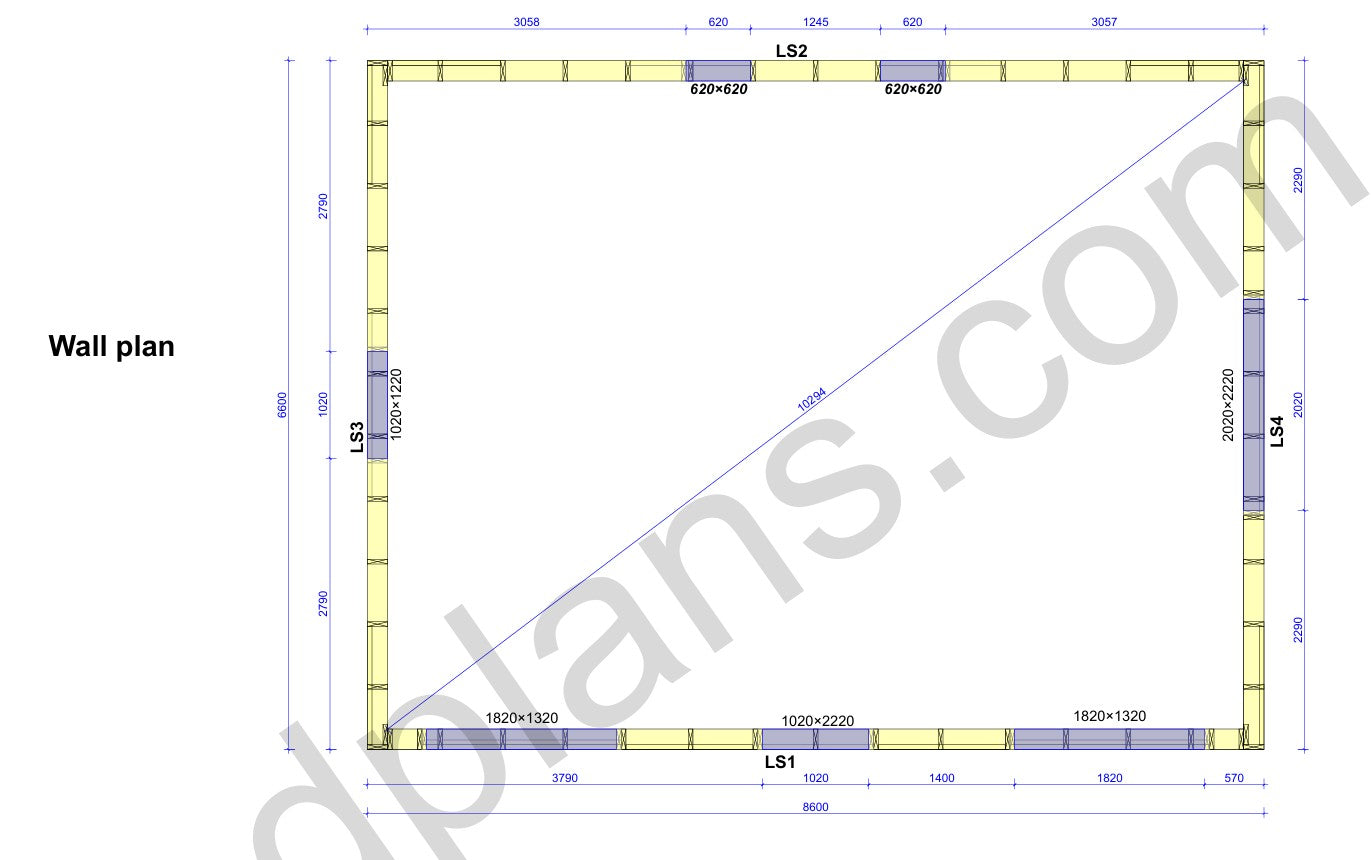

Structural Drawings: Detailed elevations, floor plan, roof framing layout, and wall sections showing all timber members and connections
-
Load Calculations: Full engineering analysis for dead loads, live loads, snow loads, and wind loads
-
Production Drawings: Connector plate specifications and placement (where applicable to the design)
-
Cutting Bills: Exact dimensions and angles for every structural member - ready for cutting
-
Material Pick List: Complete timber quantities, fastener specifications, and hardware requirements
-
Foundation Layout: Perimeter and support structure details with anchor points
-

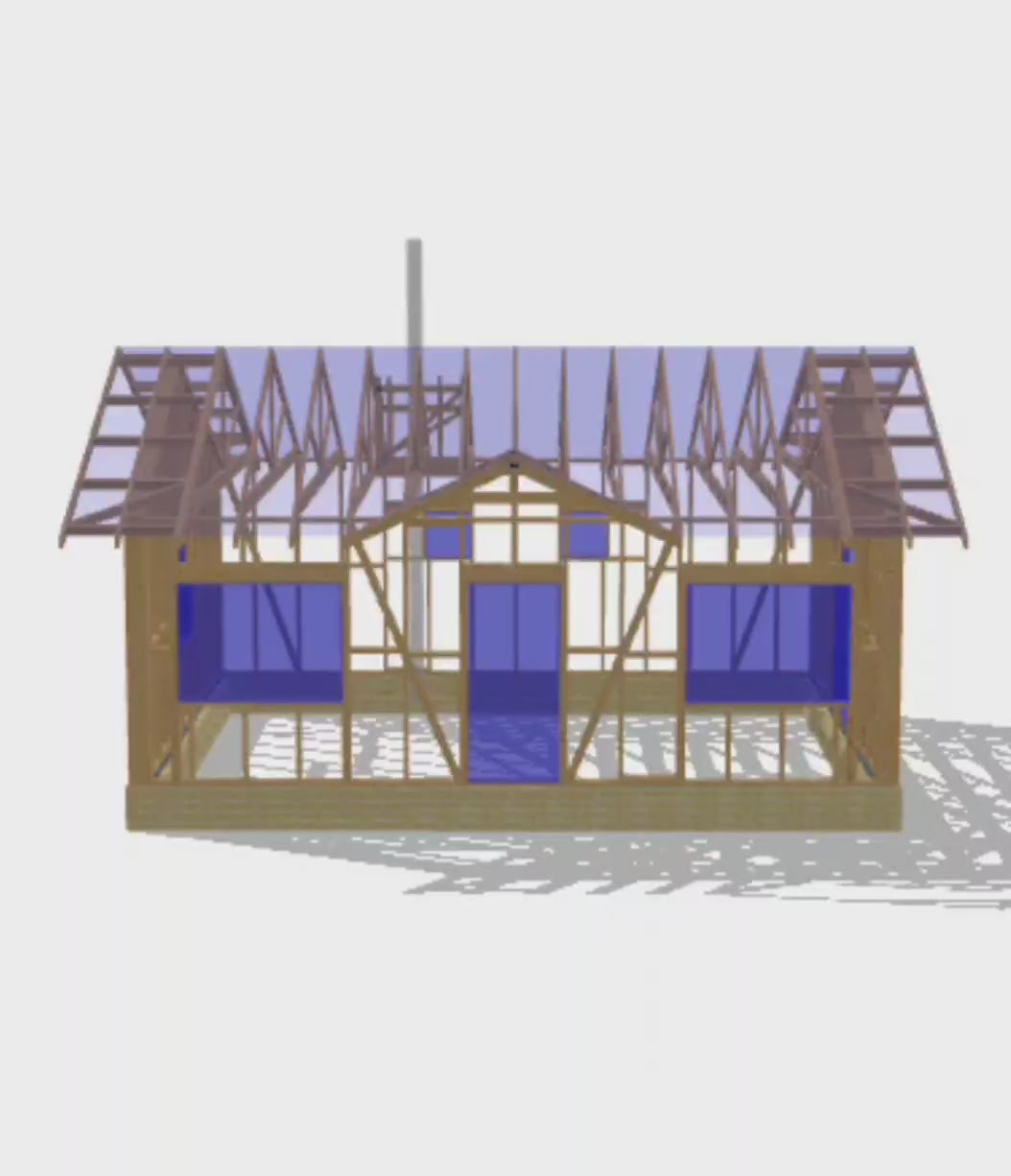

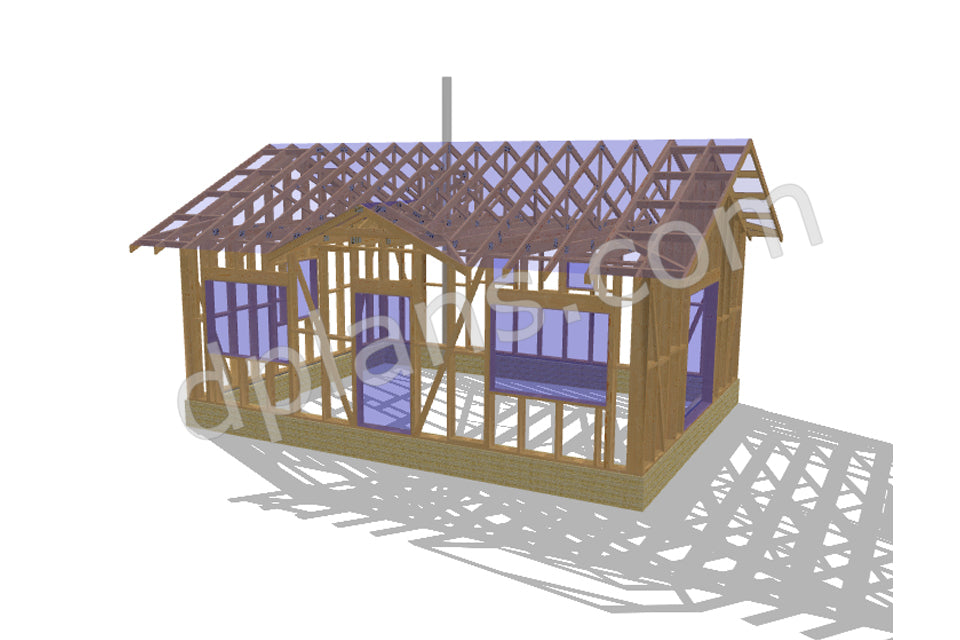

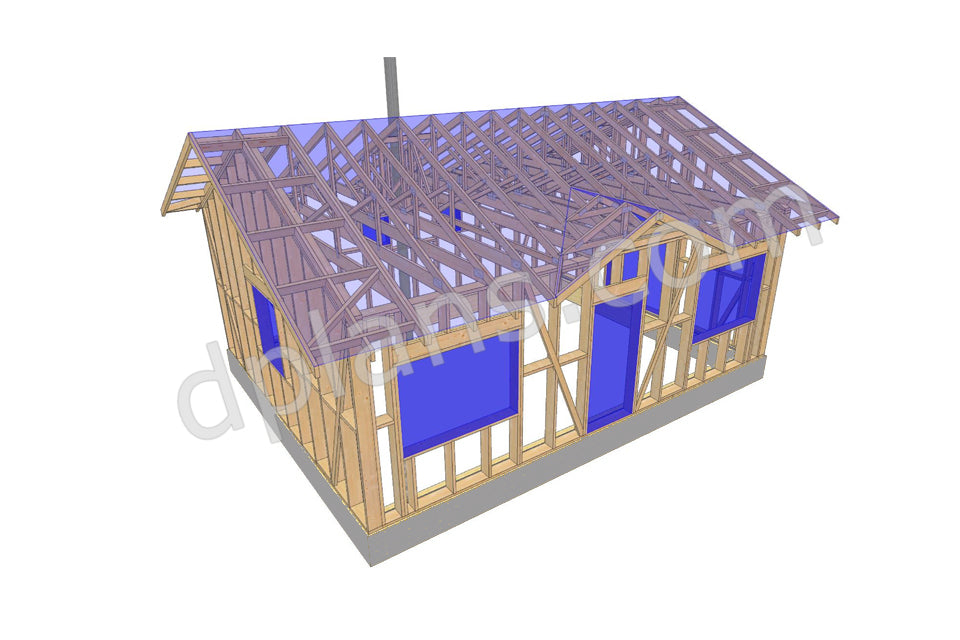

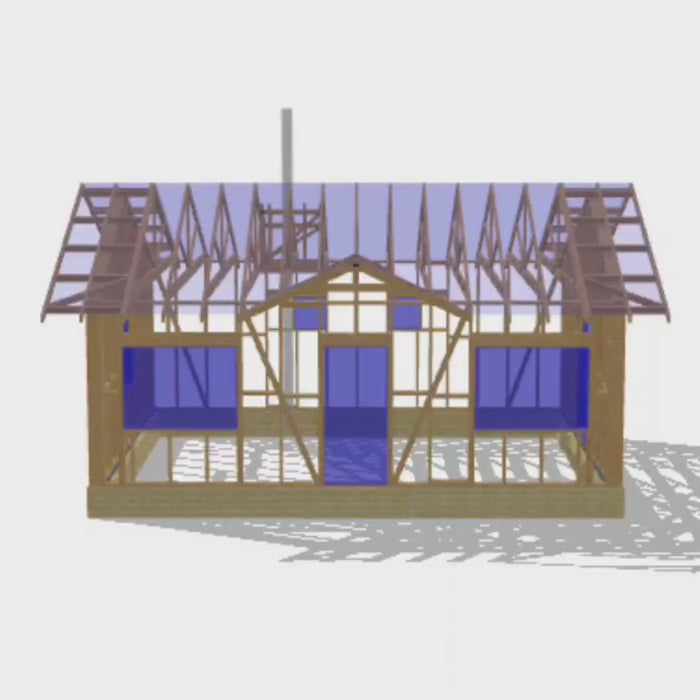

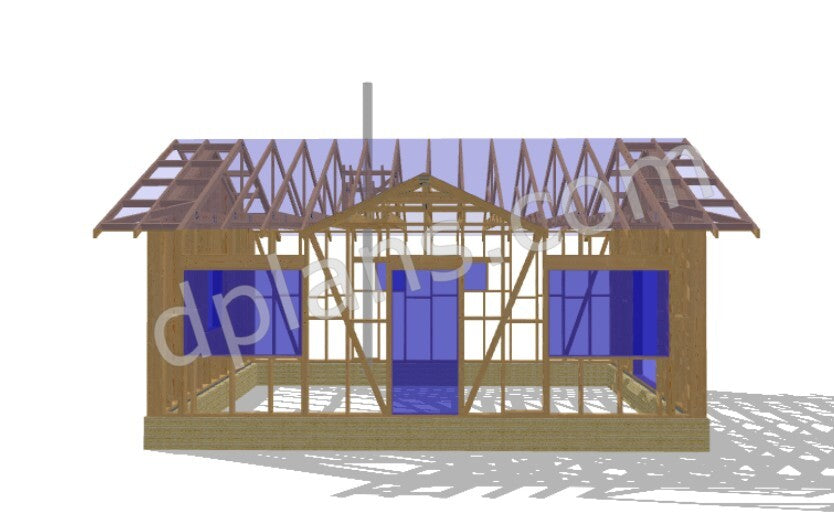

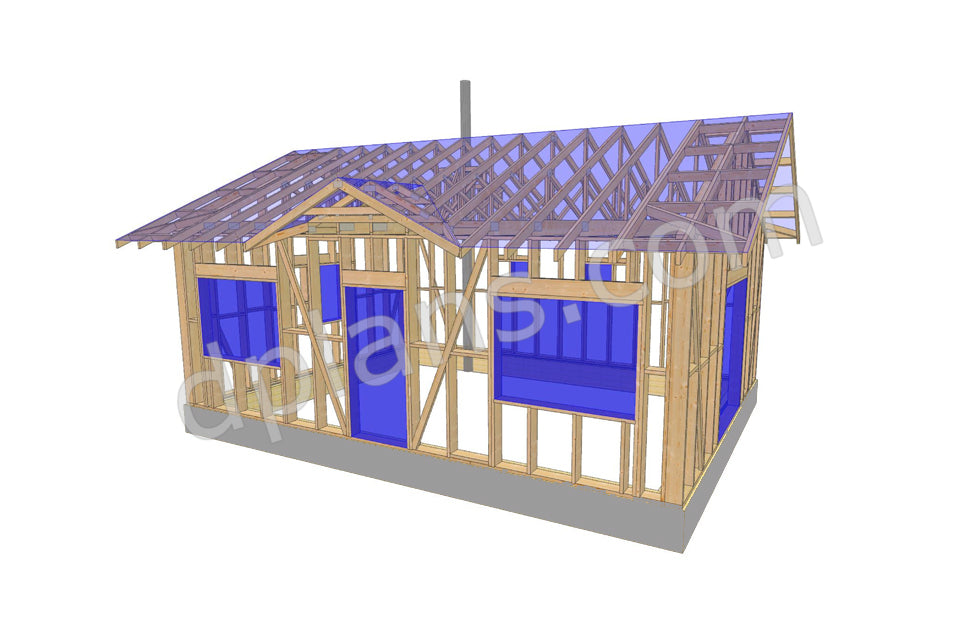

3D Visualization: Interactive 3D model accessible via QR code for spatial understanding
-
Dual Measurements: Separate folders with metric (mm) and imperial (inches) versions
This plan provides everything needed for construction. All structural connections are engineered with proper load distribution using MiTek's professional timber engineering system.
Choose Your Plan
Standard Plan includes complete PDF documentation - perfect for builders and contractors.
Pro Plan adds DWG files (for AutoCAD and CAD software), IFC files (for BIM applications like Revit), and access to MiTek Pamir viewer software for enhanced technical viewing. Choose Pro if you need to import plans into CAD software for modifications or work with BIM workflows.
