31' x 23' Sauna House Plans | Rafter-Roof Timber Frame Design

Sauna House 66.34m² (714 sq ft) - DP2024S541

374" x 275" (31'2" x 22'11") / 9490 x 6990 mm
Structure Type: Timber-frame sauna house with rafter roof and ridge beam
Building Footprint: 66.34m² (714 sq ft)
Wall Height: 3.19m (126" / 10'6")
Roof Pitch: 23°
Foundation Type: Concrete strip foundation
Ideal For: Traditional saunas, steam rooms, small cabins, wellness spaces, or guest cottages

Structure Details

This spacious sauna house features a traditional gable roof built on rafters and a central ridge beam at a 23° pitch, rising to a 4.86m (15'11") ridge. The 66.34m² (714 sq ft) footprint provides ample space for a sauna room, changing area, relaxation space, and storage, with 3.19m (10'6") walls for generous headroom. The timber-frame construction ensures proper structural support for high-humidity sauna environments. Large window openings maximize natural light throughout the interior. Structural members are optimized for standard dimensional lumber availability.

What's Included

Complete structural engineering package created with licensed MiTek Pamir software:

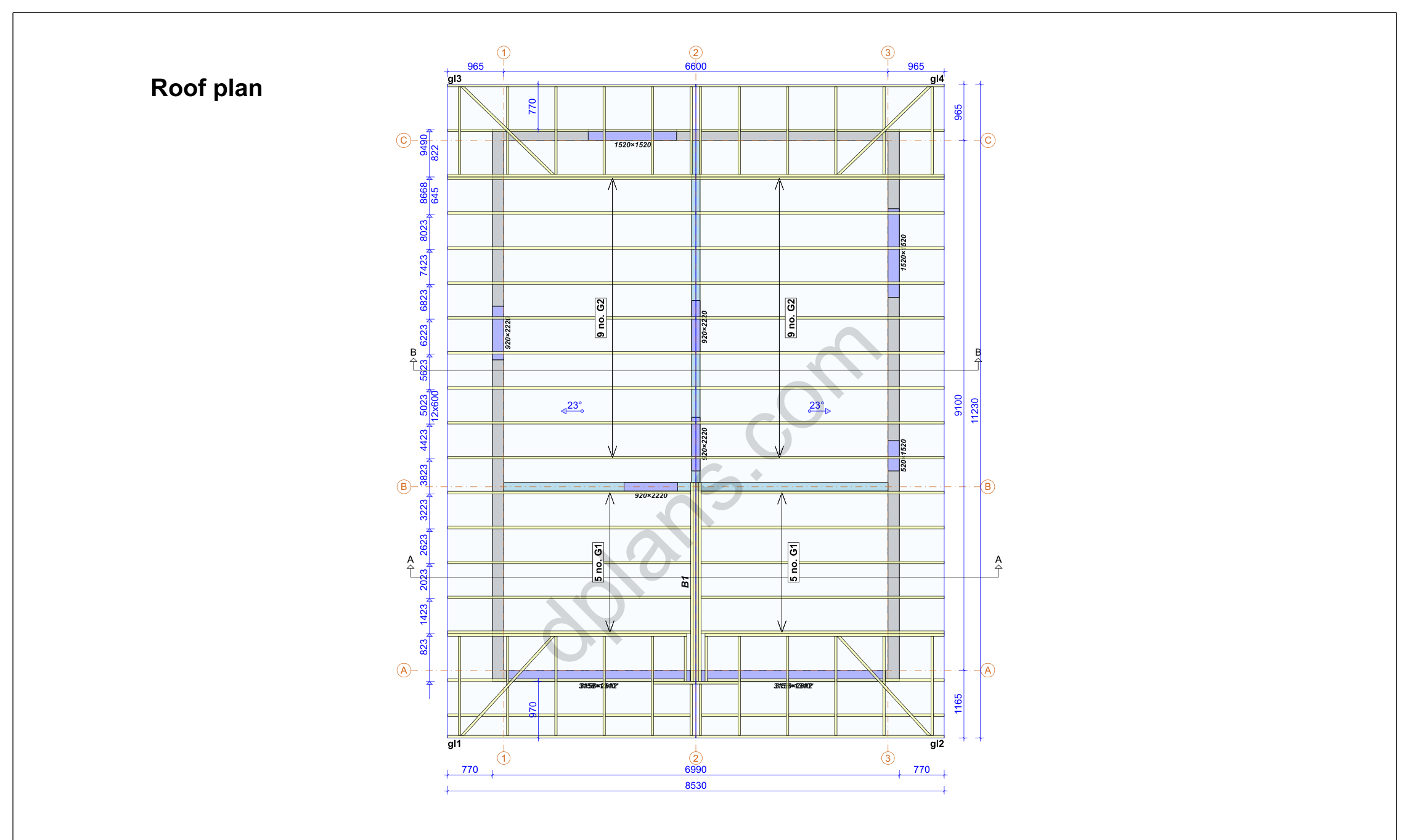

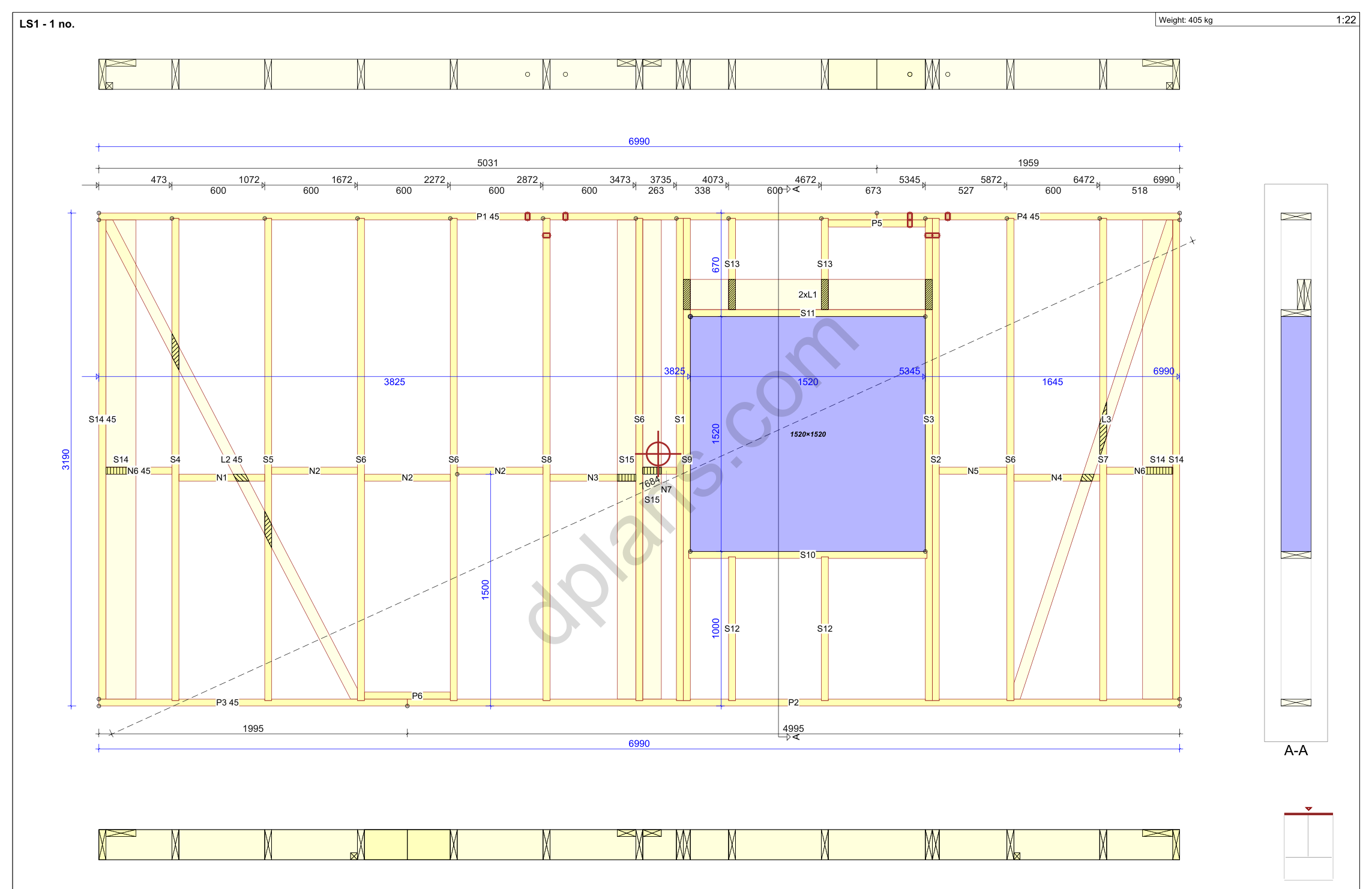

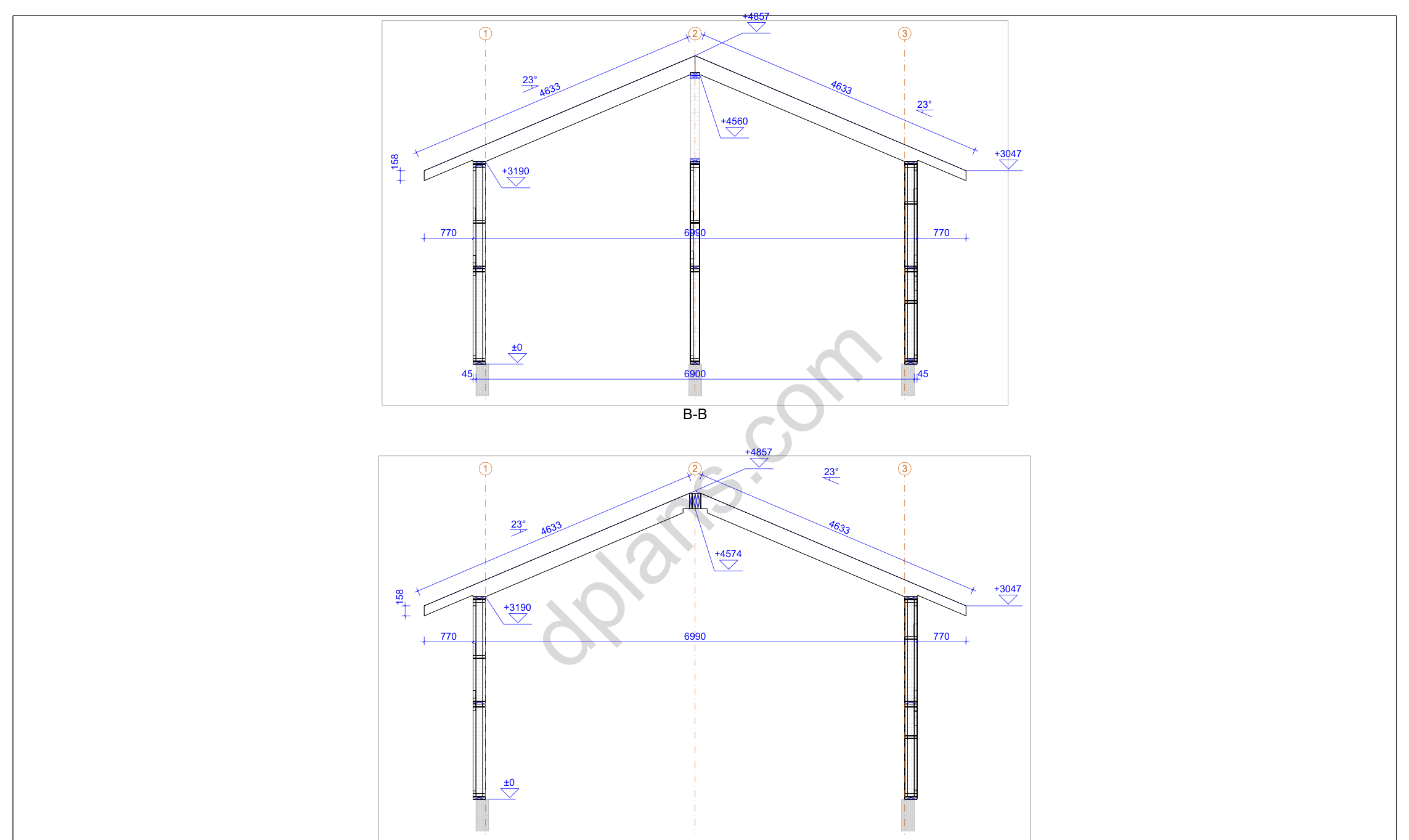

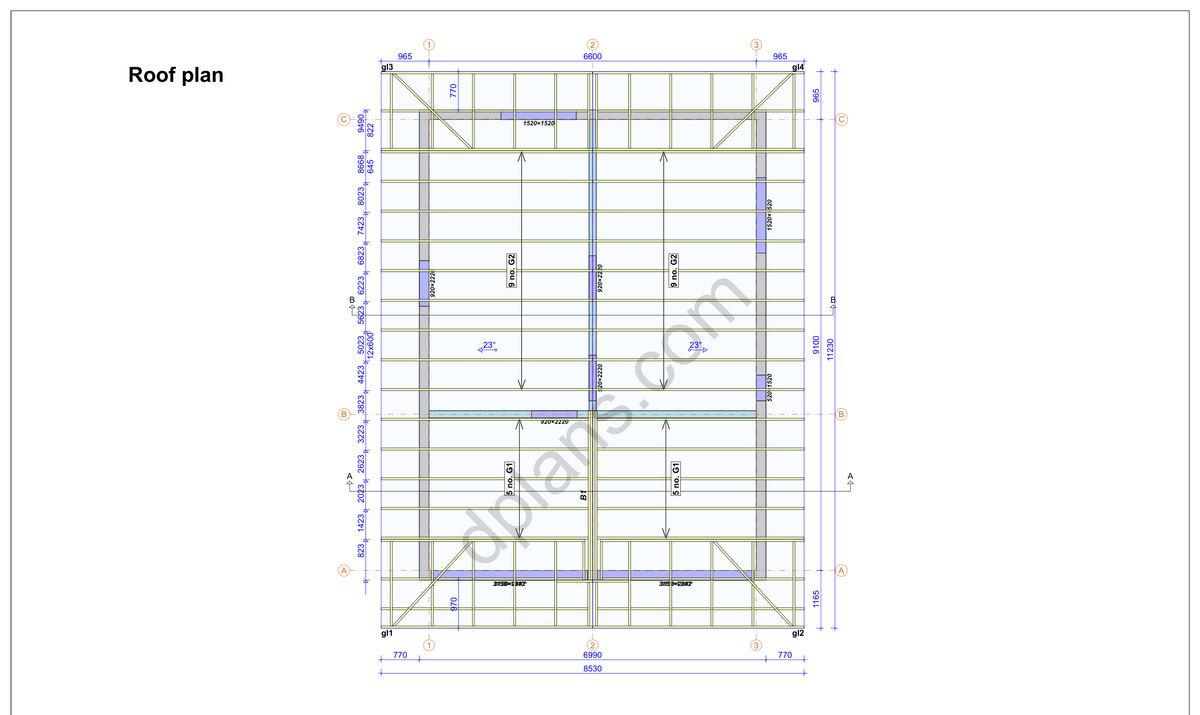

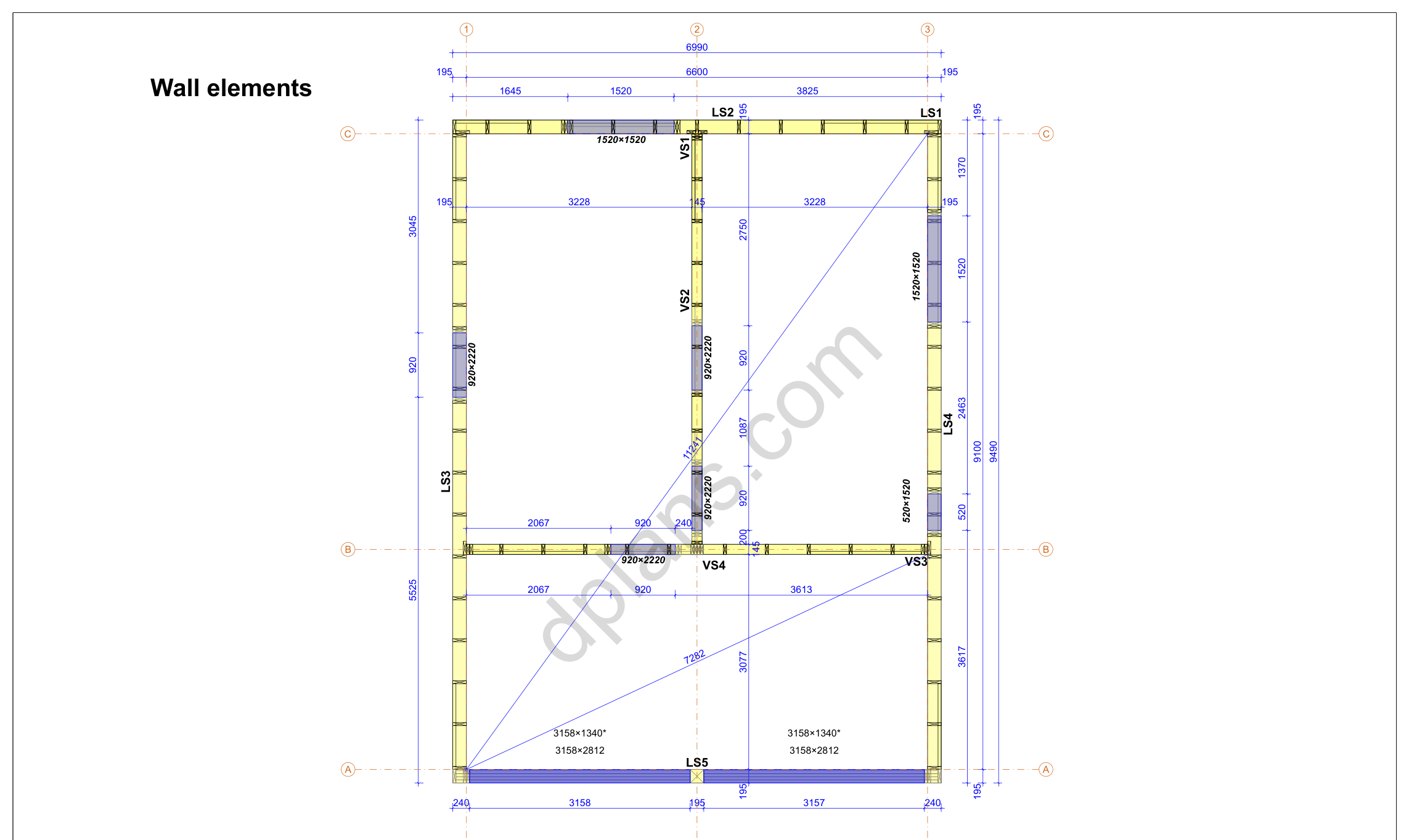

 • Structural Drawings: Detailed elevations, floor plan, roof framing layout, and wall sections showing all timber members and connections
 • Load Calculations: Full engineering analysis for dead loads, live loads, snow loads, and wind loads
 • Production Drawings: Connector plate specifications and placement (where applicable to the design)

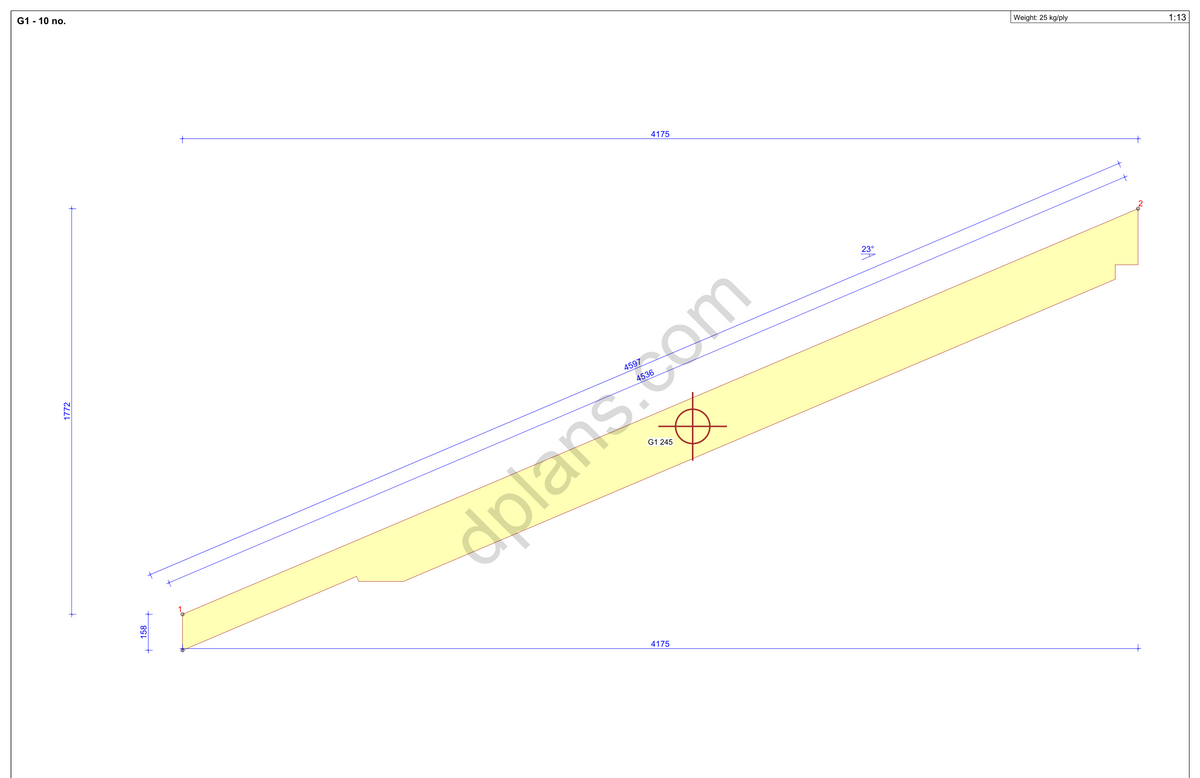

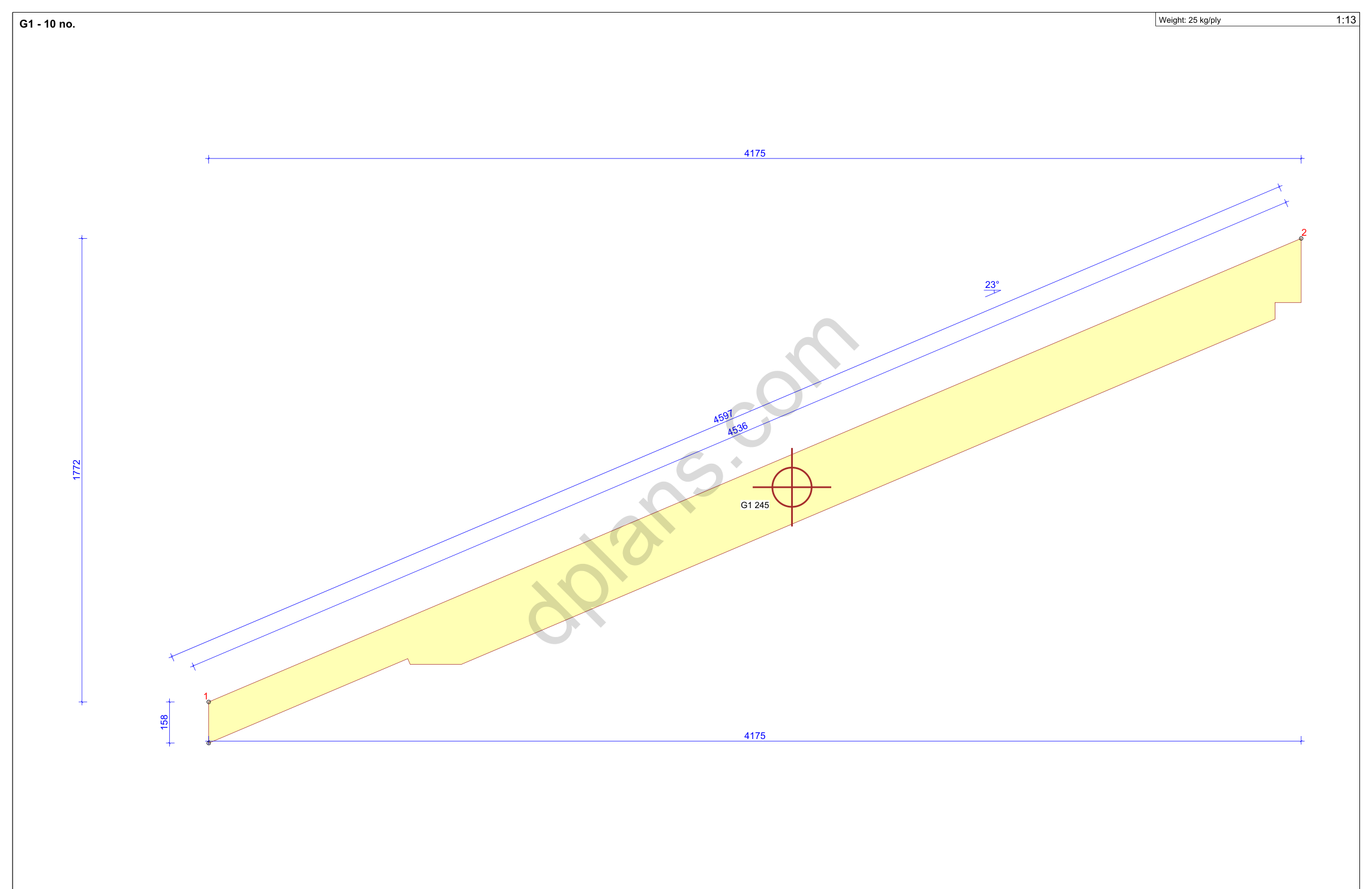

 • Cutting Bills: Exact dimensions and angles for every structural member - ready for cutting
 • Material Pick List: Complete timber quantities, fastener specifications, and hardware requirements

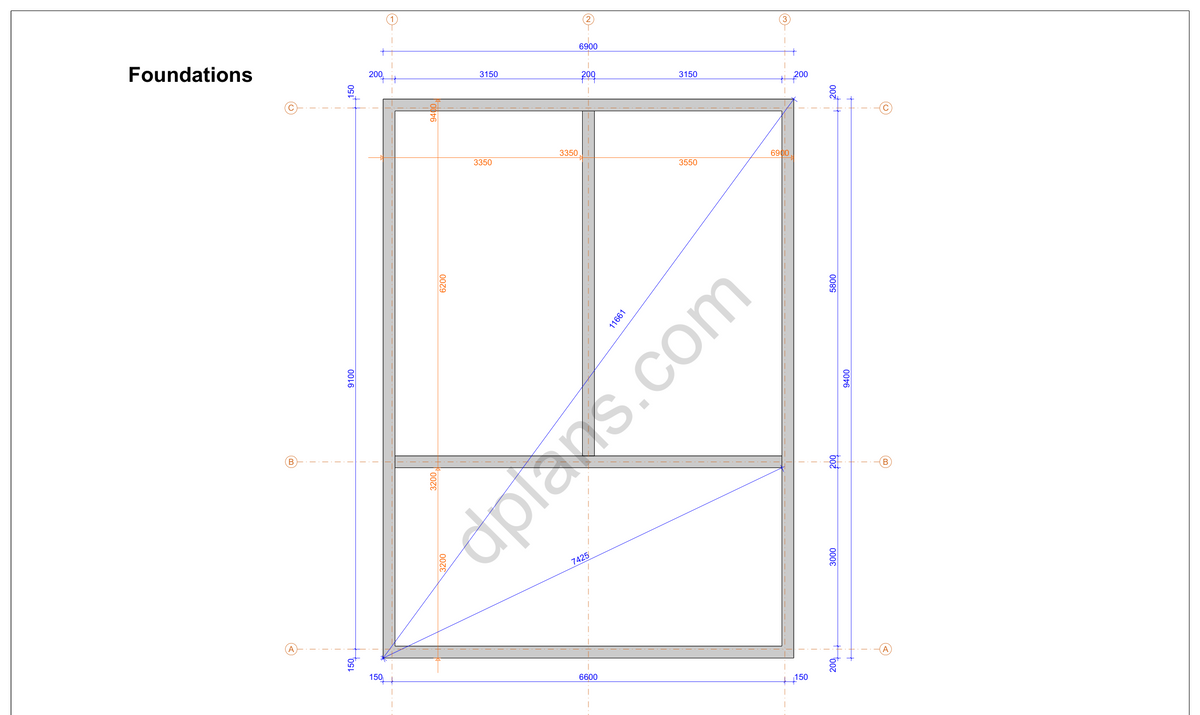

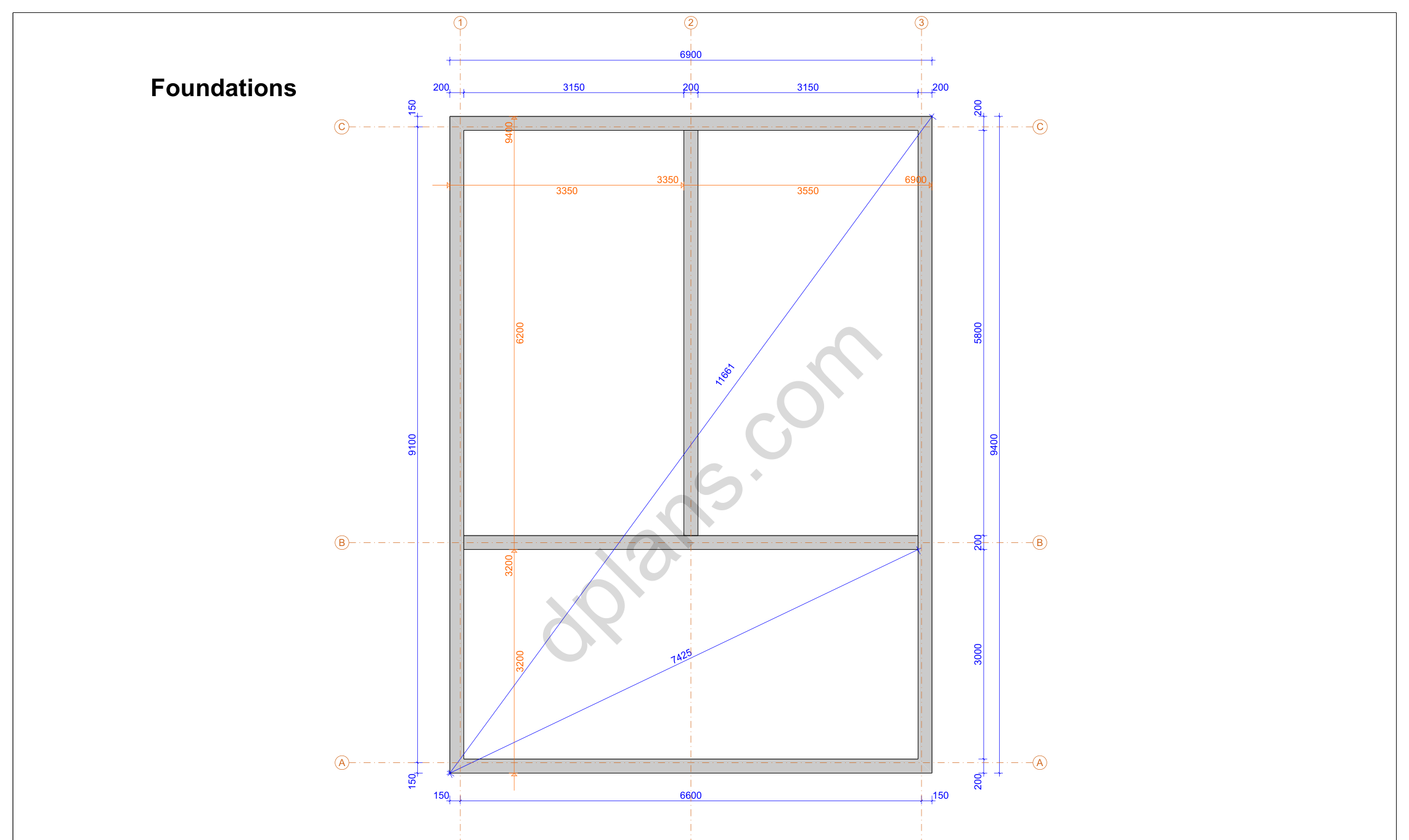

 • Foundation Layout: Perimeter and support structure details with anchor points

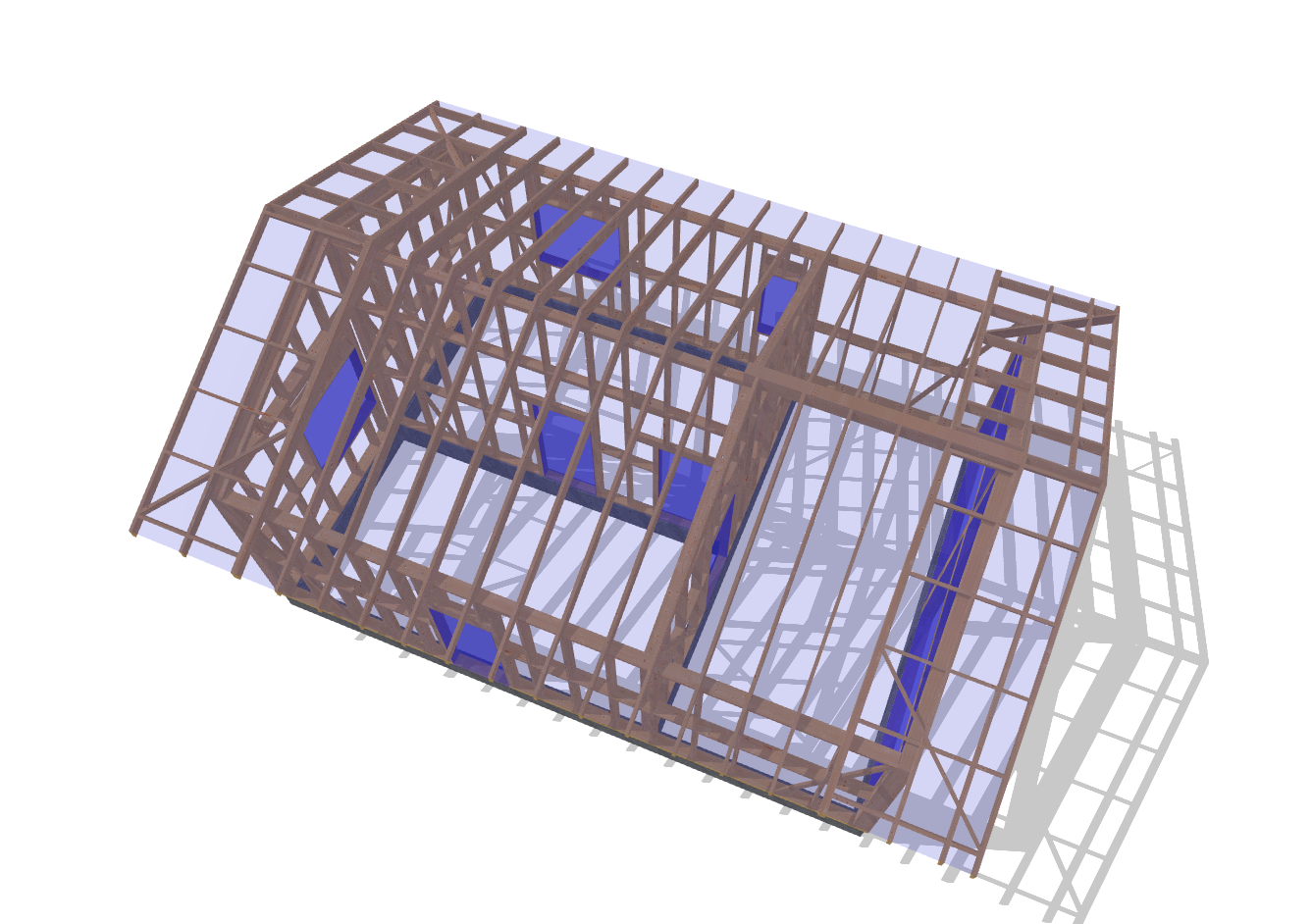

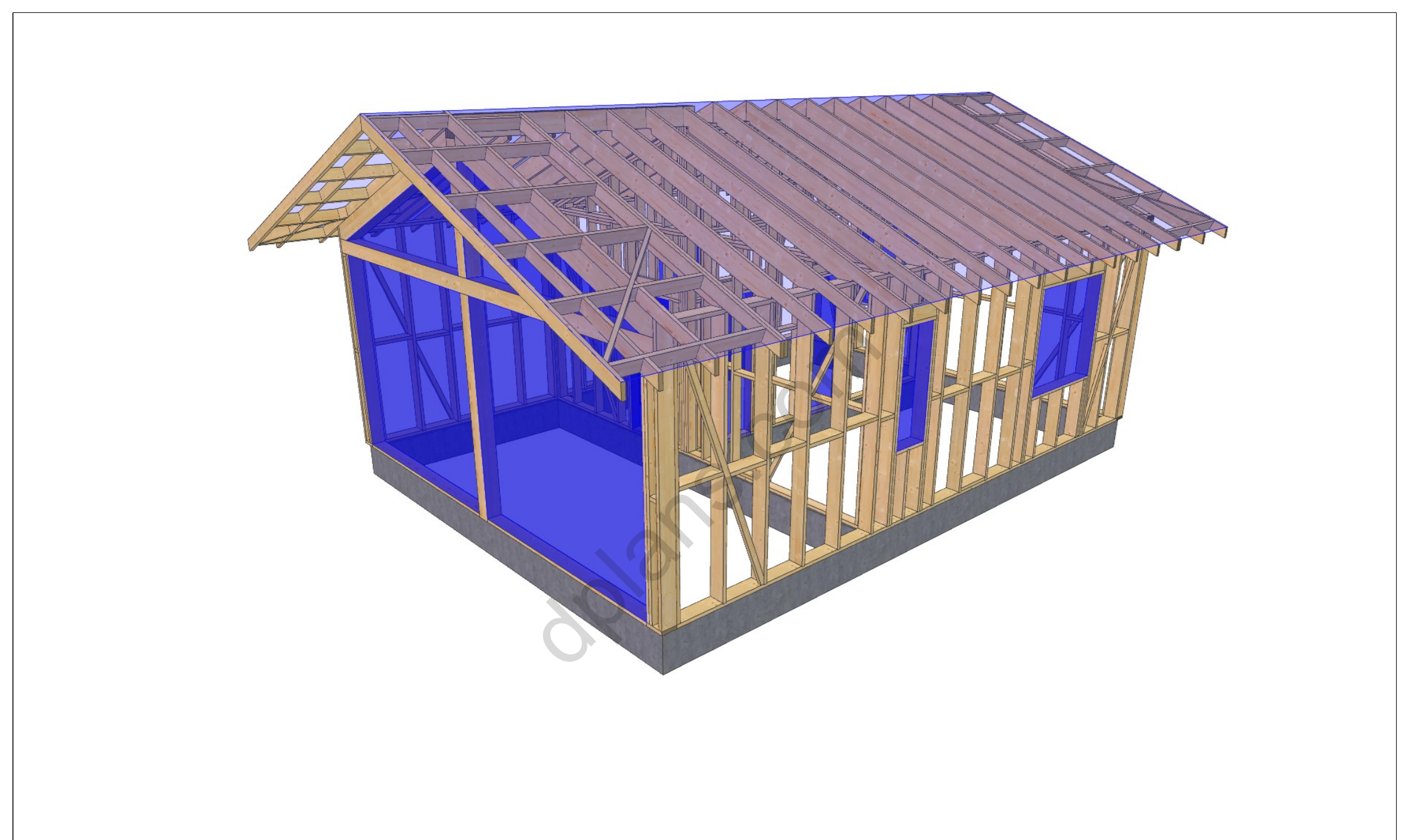

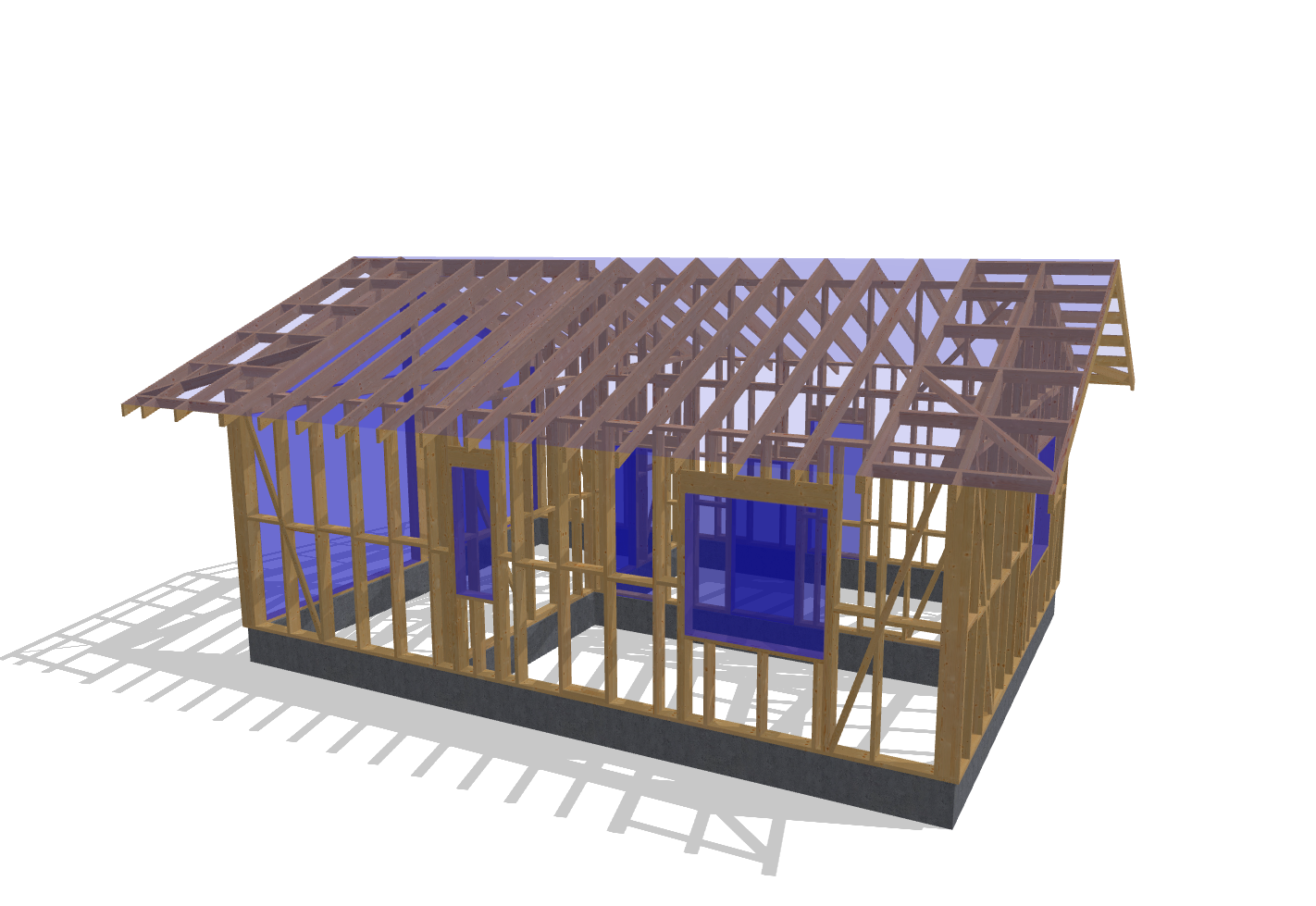

 • 3D Visualization: Interactive 3D model accessible via QR code for spatial understanding
 • Dual Measurements: Separate folders with metric (mm) and imperial (inches) versions

This plan provides everything needed for construction. All structural connections are engineered with proper load distribution using MiTek's professional timber engineering system.

Choose Your Plan

Standard Plan includes complete PDF documentation - perfect for builders and contractors.

Pro Plan adds DWG files (for AutoCAD and CAD software), IFC files (for BIM applications like Revit), and access to MiTek Pamir viewer software for enhanced technical viewing. Choose Pro if you need to import plans into CAD software for modifications or work with BIM workflows.
