A-Frame Holiday House - Project DP2024S524
Structure Type: Timber-frame A-frame cabin with loft
Building Footprint: 59m² (635 sq ft)
Loft Area: 7m² (75 sq ft)
Total Usable Space: 66m² (710 sq ft)
Foundation Type: Screw pile or timber beam foundation
Ideal For: Holiday retreats, weekend cabins, guest houses, rental properties, or vacation homes
Structure Details

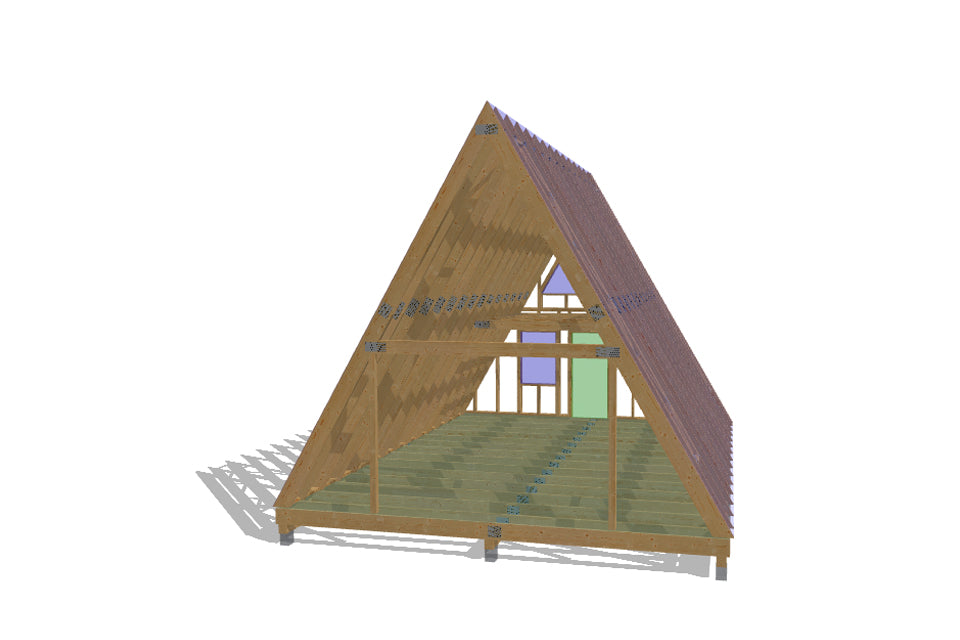

The steep-pitched A-frame roof extends to ground level, creating an efficient, weather-resistant envelope with 59m² (635 sq ft) of main floor space plus a 7m² (75 sq ft) loft area. The design maximizes interior volume while minimizing exterior surface area for excellent thermal performance. Structural members are optimized for standard dimensional lumber availability.
What's Included
Complete structural engineering package created with licensed MiTek Pamir software:
-

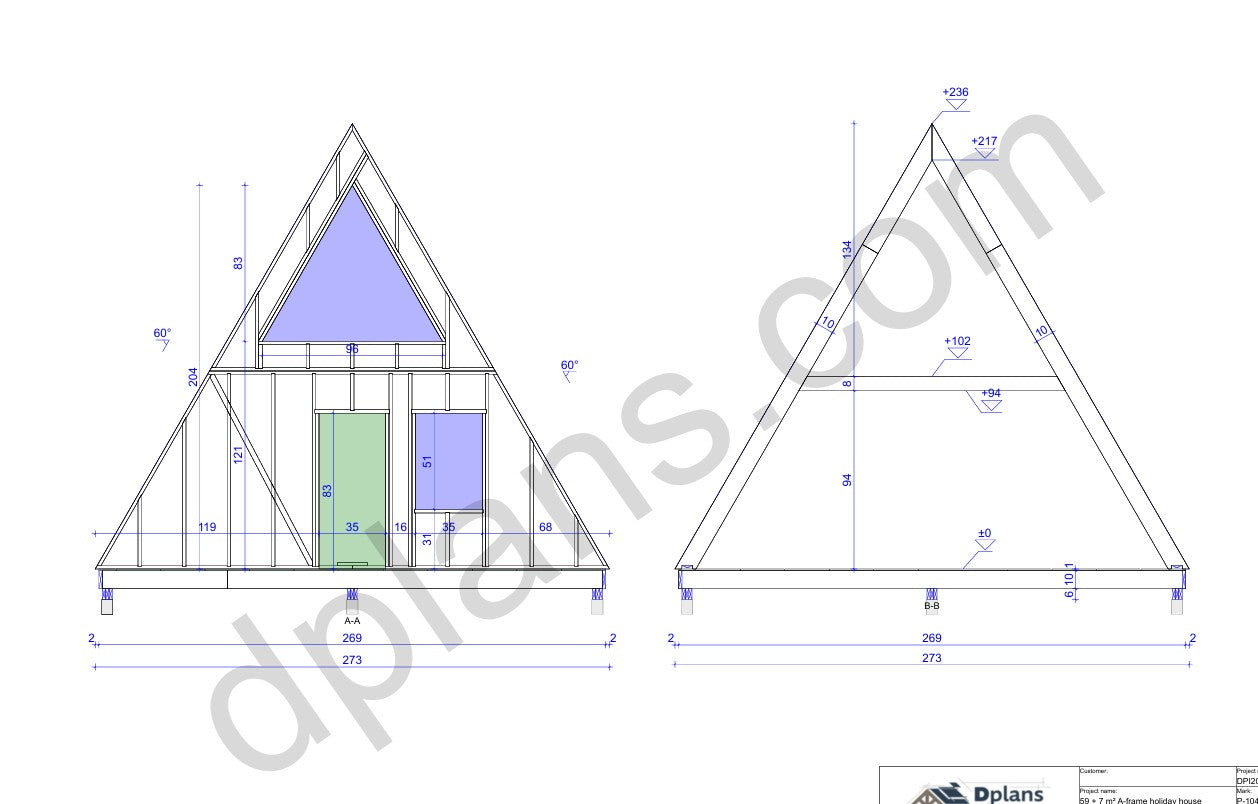

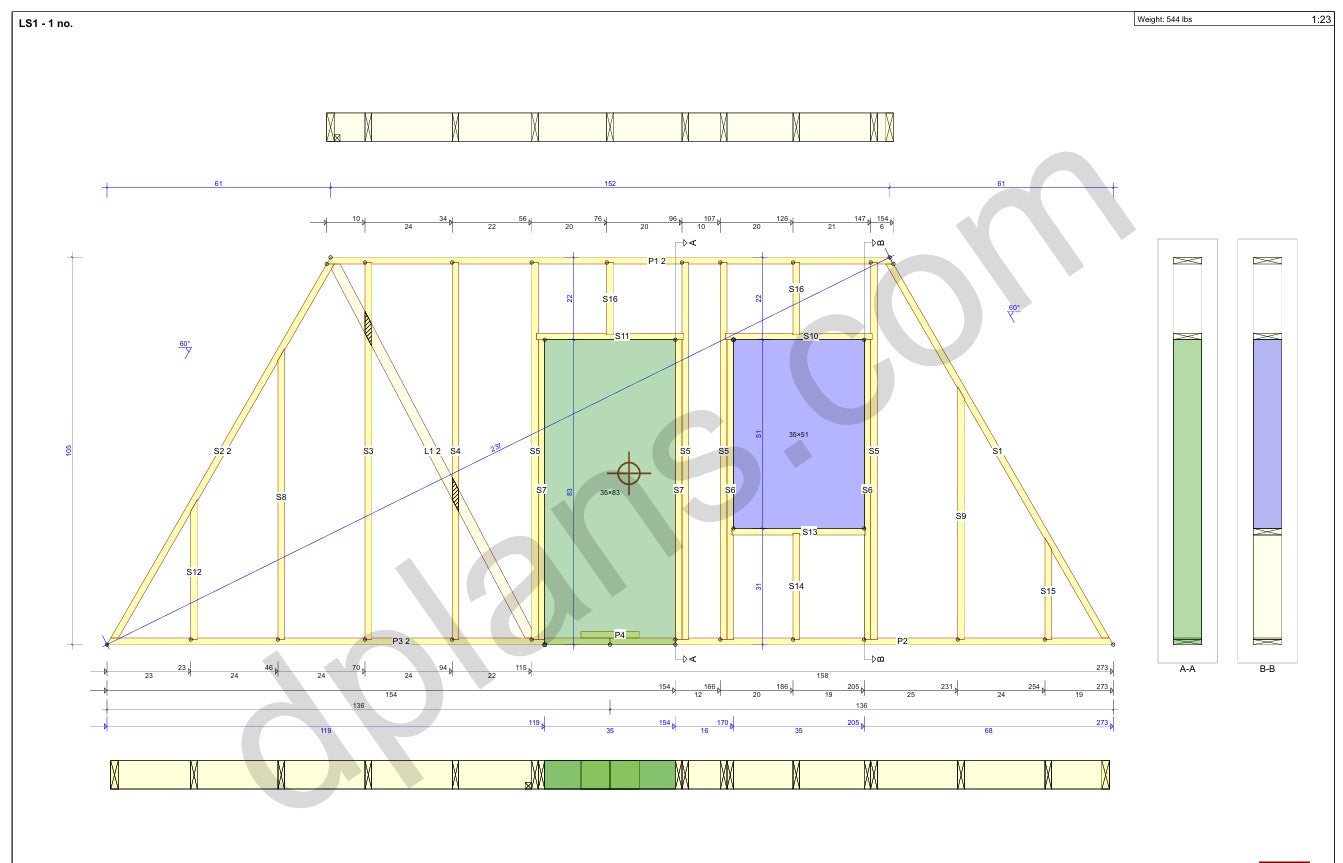

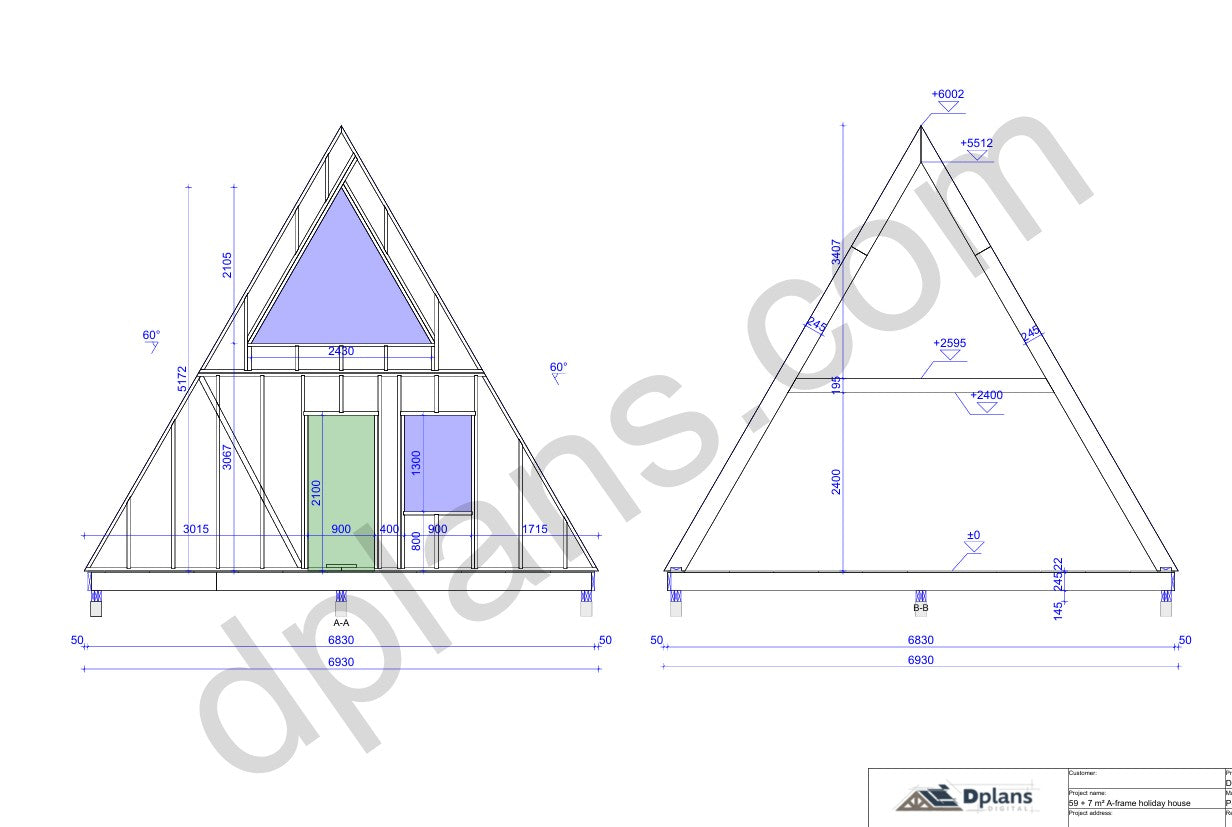

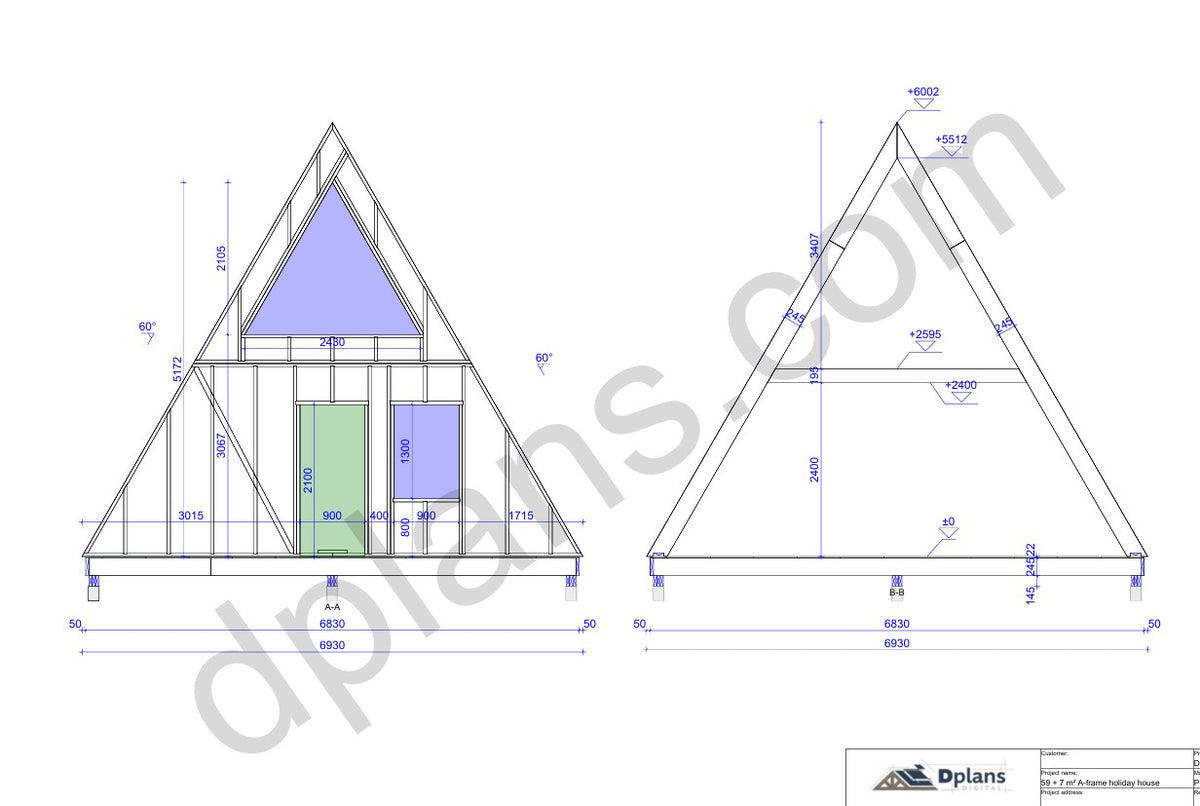

Structural Drawings: Detailed elevations, floor plan, roof framing layout, and wall sections showing all timber members and connections
-
Load Calculations: Full engineering analysis for dead loads, live loads, snow loads, and wind loads
-

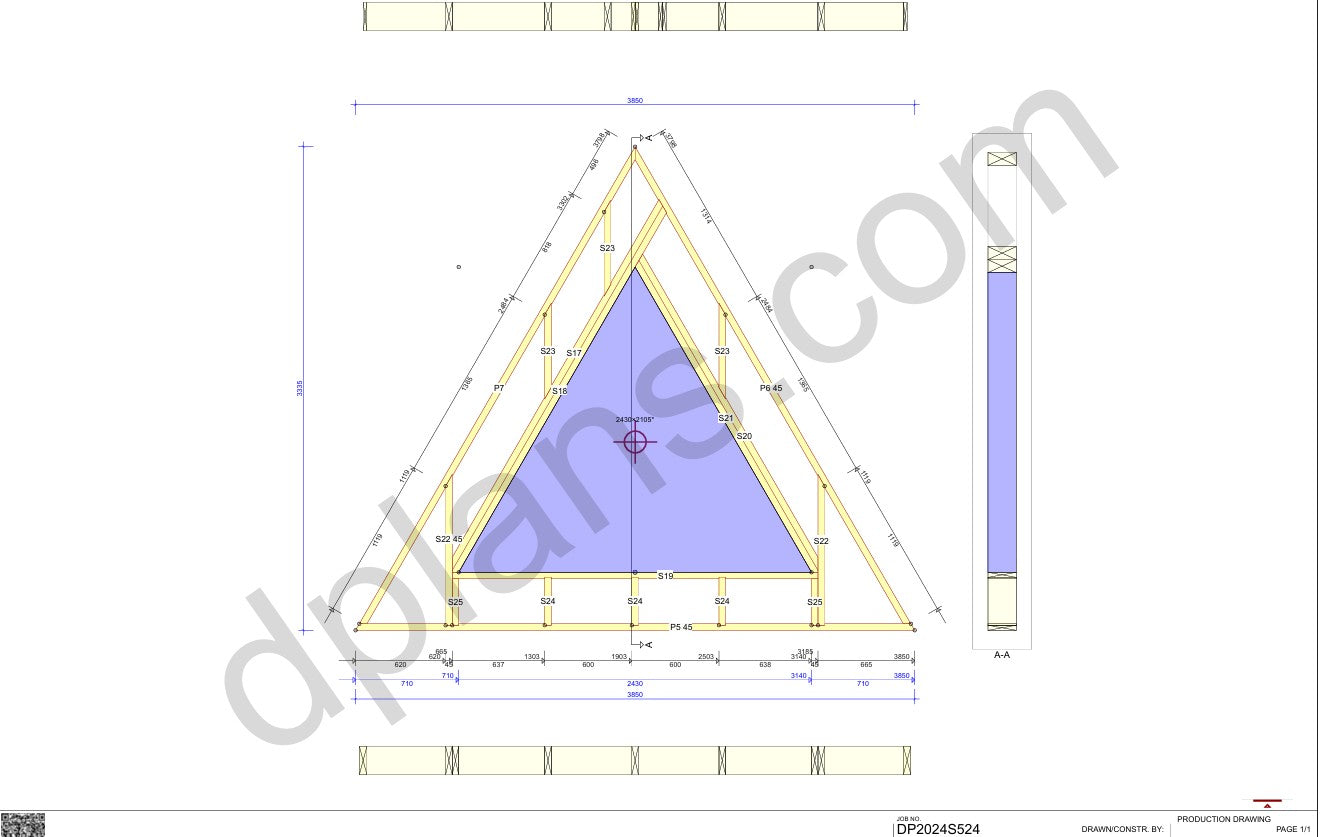

Production Drawings: Connector plate specifications and placement (where applicable to the design)
-

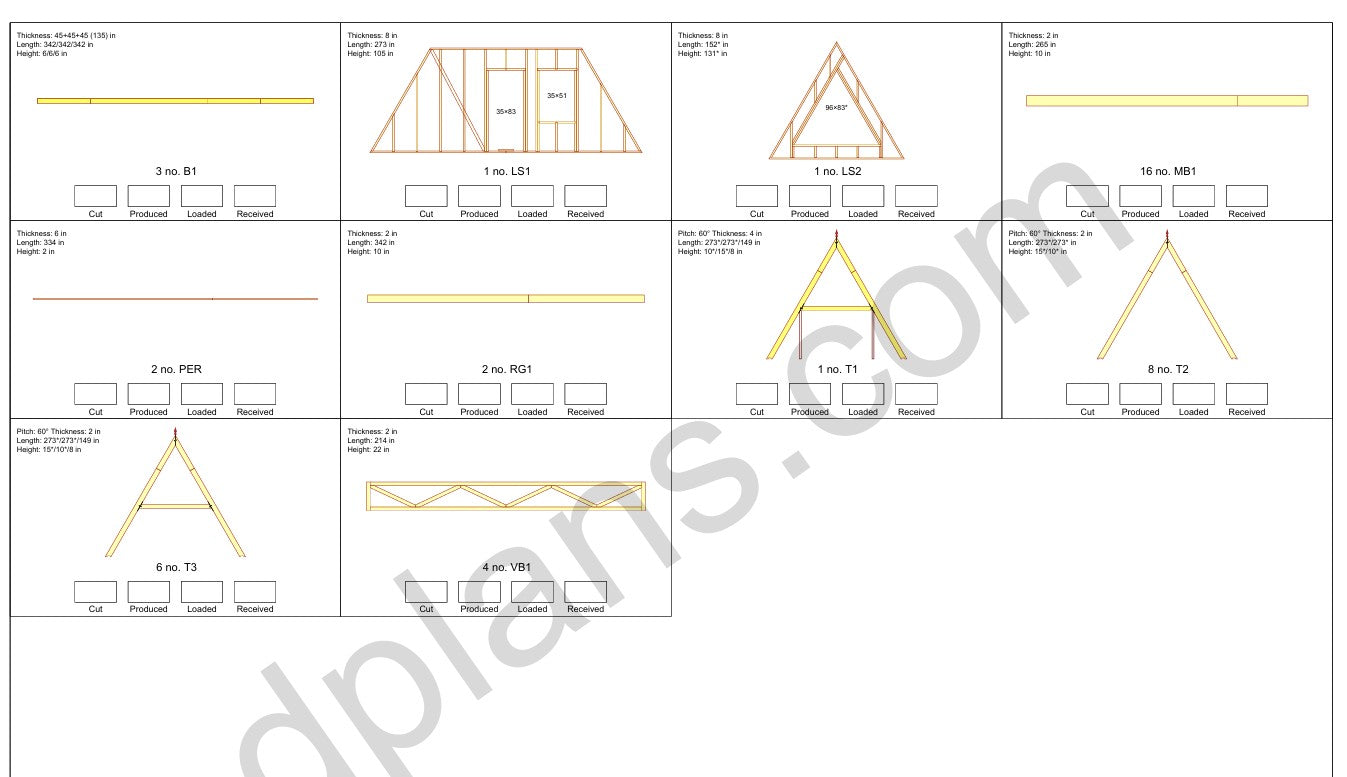

Cutting Bills: Exact dimensions and angles for every structural member - ready for cutting
-
Material Pick List: Complete timber quantities, fastener specifications, and hardware requirements
-
Foundation Layout: Perimeter and support structure details with anchor points
-

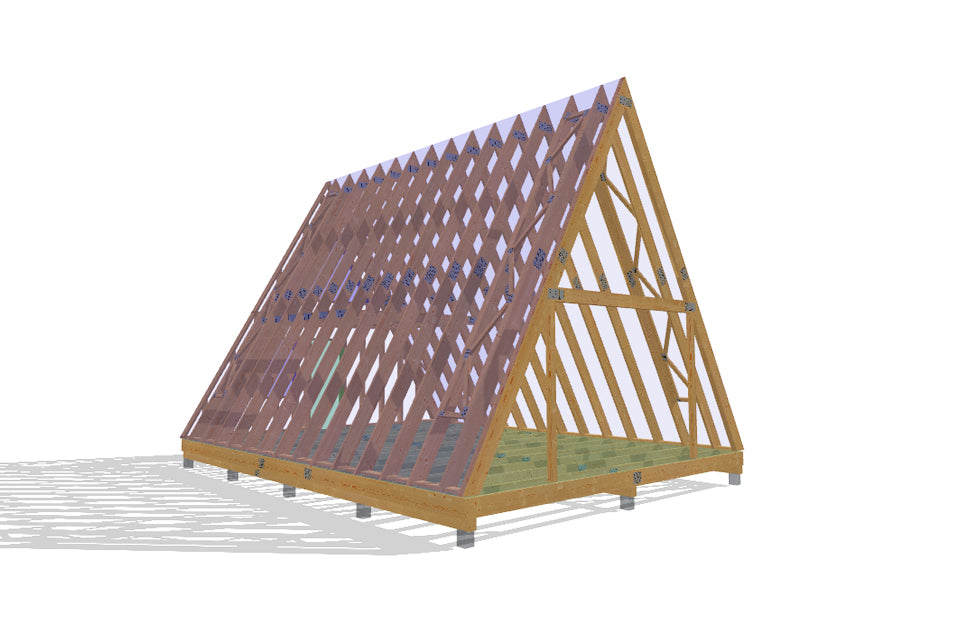

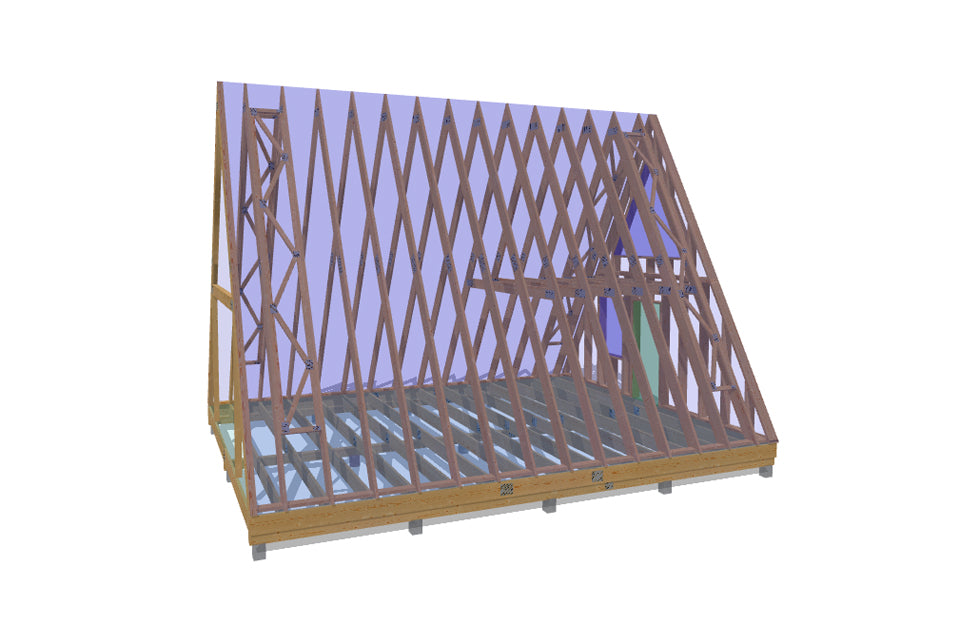

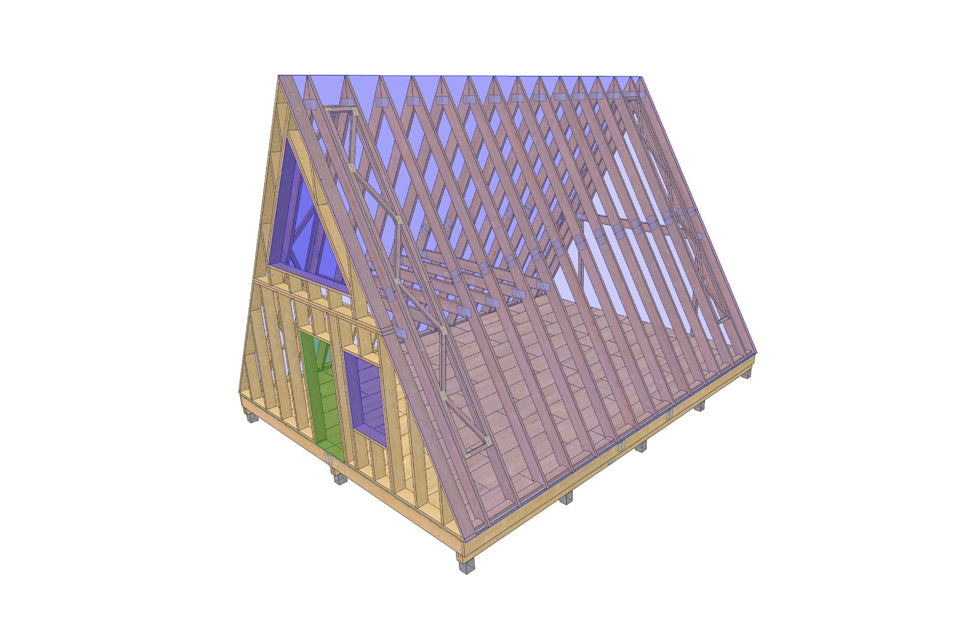

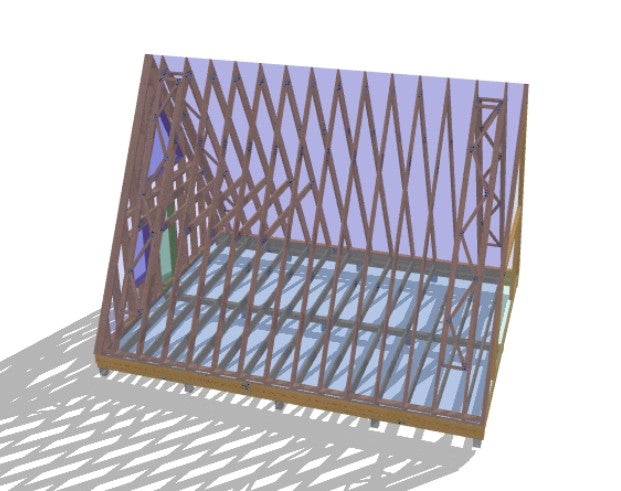

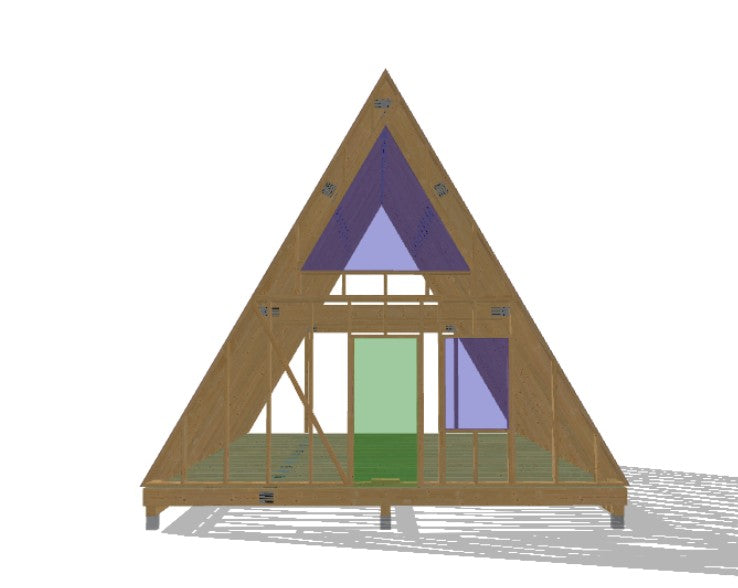

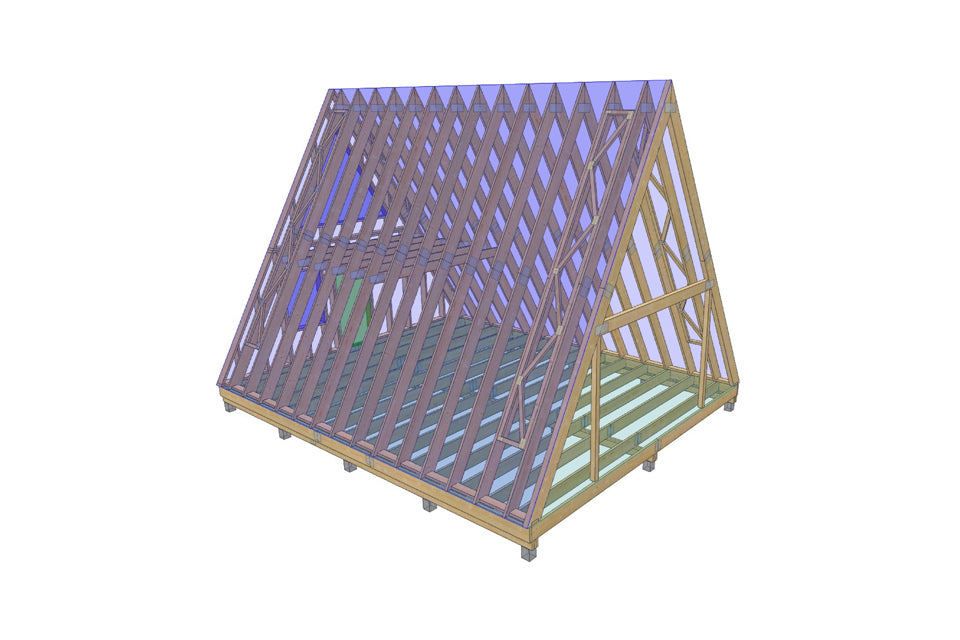

3D Visualization: Interactive 3D model accessible via QR code for spatial understanding
-
Dual Measurements: Separate folders with metric (mm) and imperial (inches) versions
All structural connections are engineered with proper load distribution using MiTek's professional timber engineering system.
Choose Your Plan
Standard Plan includes complete PDF documentation - perfect for builders and contractors.
Pro Plan adds DWG files (for AutoCAD and CAD software), IFC files (for BIM applications like Revit), and access to MiTek Pamir viewer software for enhanced technical viewing. Choose Pro if you need to import plans into CAD software for modifications or work with BIM workflows.
