Timber-Frame Garage - DP2024S520
Structure Type: Timber-frame garage with engineered roof trusses
Building Footprint: 49m² (527 sq ft)
Foundation Type: Concrete slab foundation
Ideal For: Residential garages, workshops, equipment storage, or hobby spaces
Structure Details

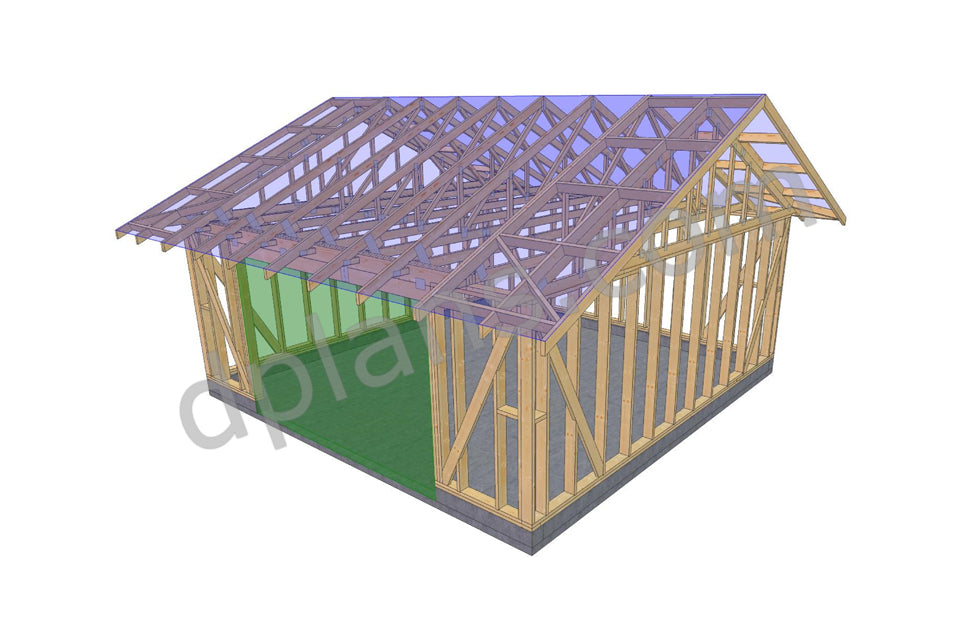

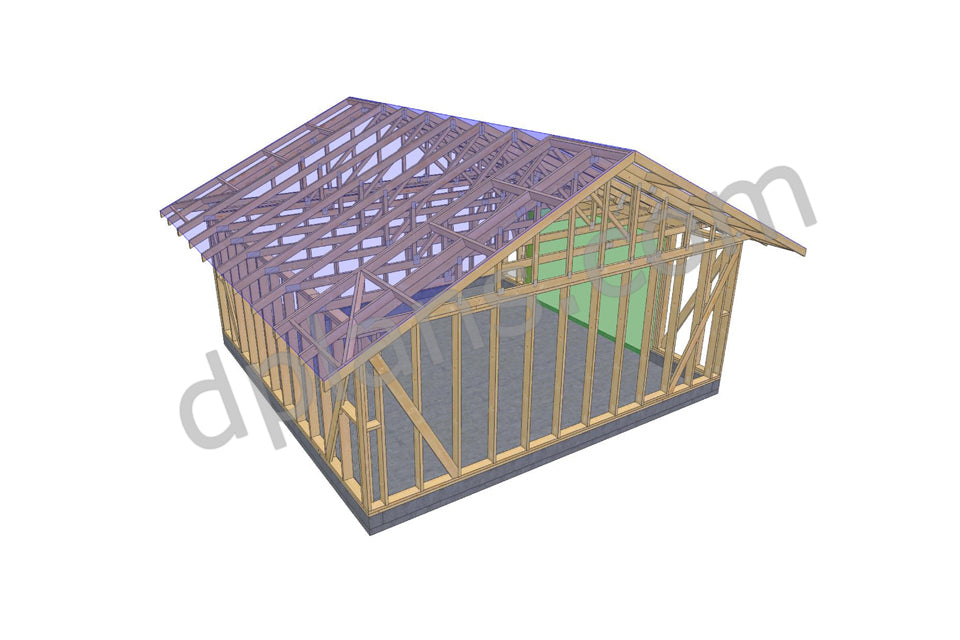

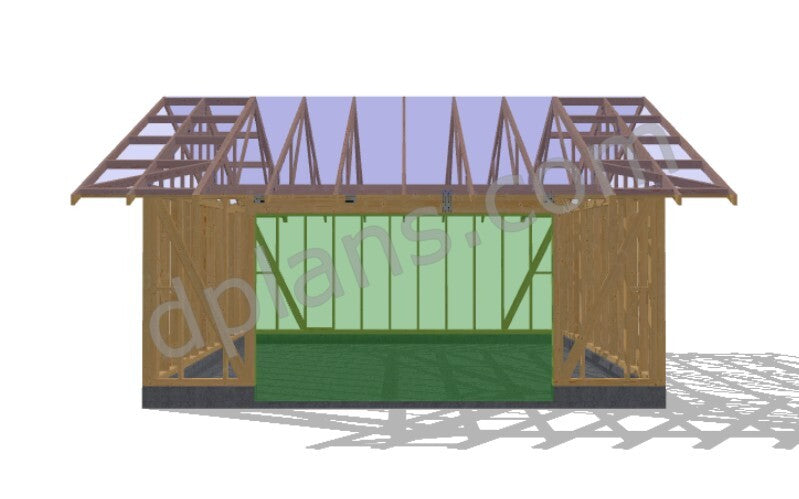

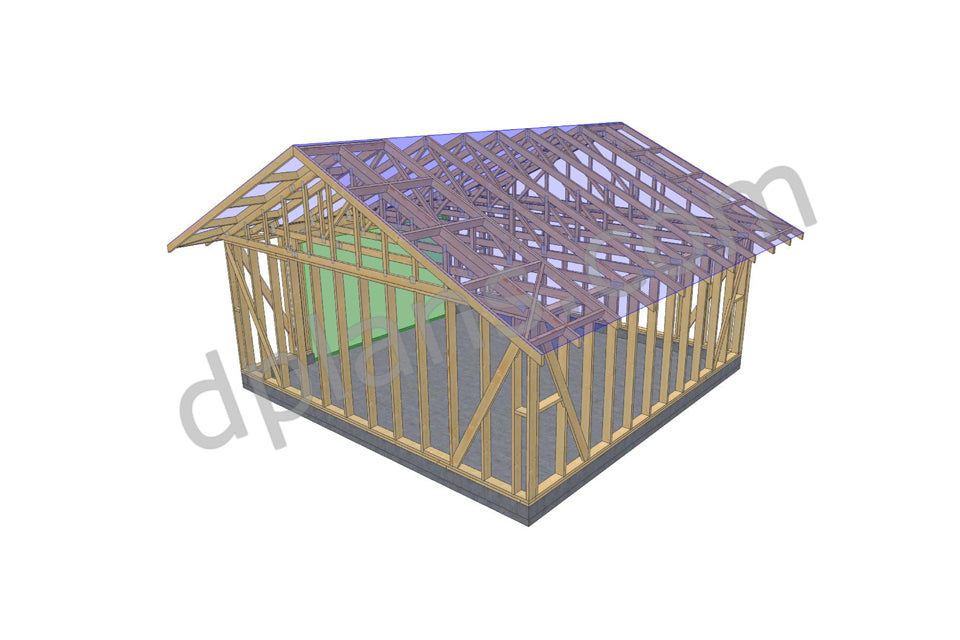

This garage features a traditional gable roof design with engineered roof trusses for maximum interior clearance and structural efficiency. The 49m² (527 sq ft) footprint provides ample space for one to two vehicles plus storage or workbench area. The timber-frame construction with professionally engineered trusses ensures long-term durability and stability. Structural members are optimized for standard dimensional lumber availability.
What's Included
Complete structural engineering package created with licensed MiTek Pamir software:
-

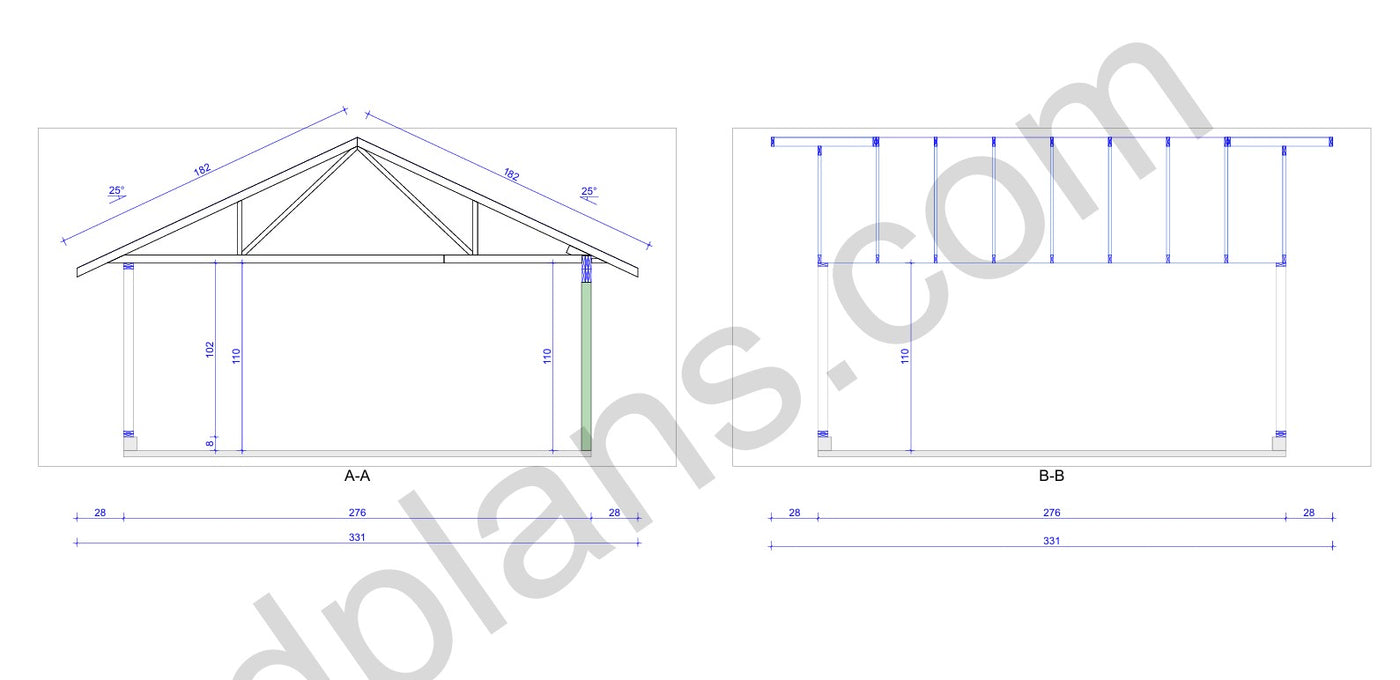

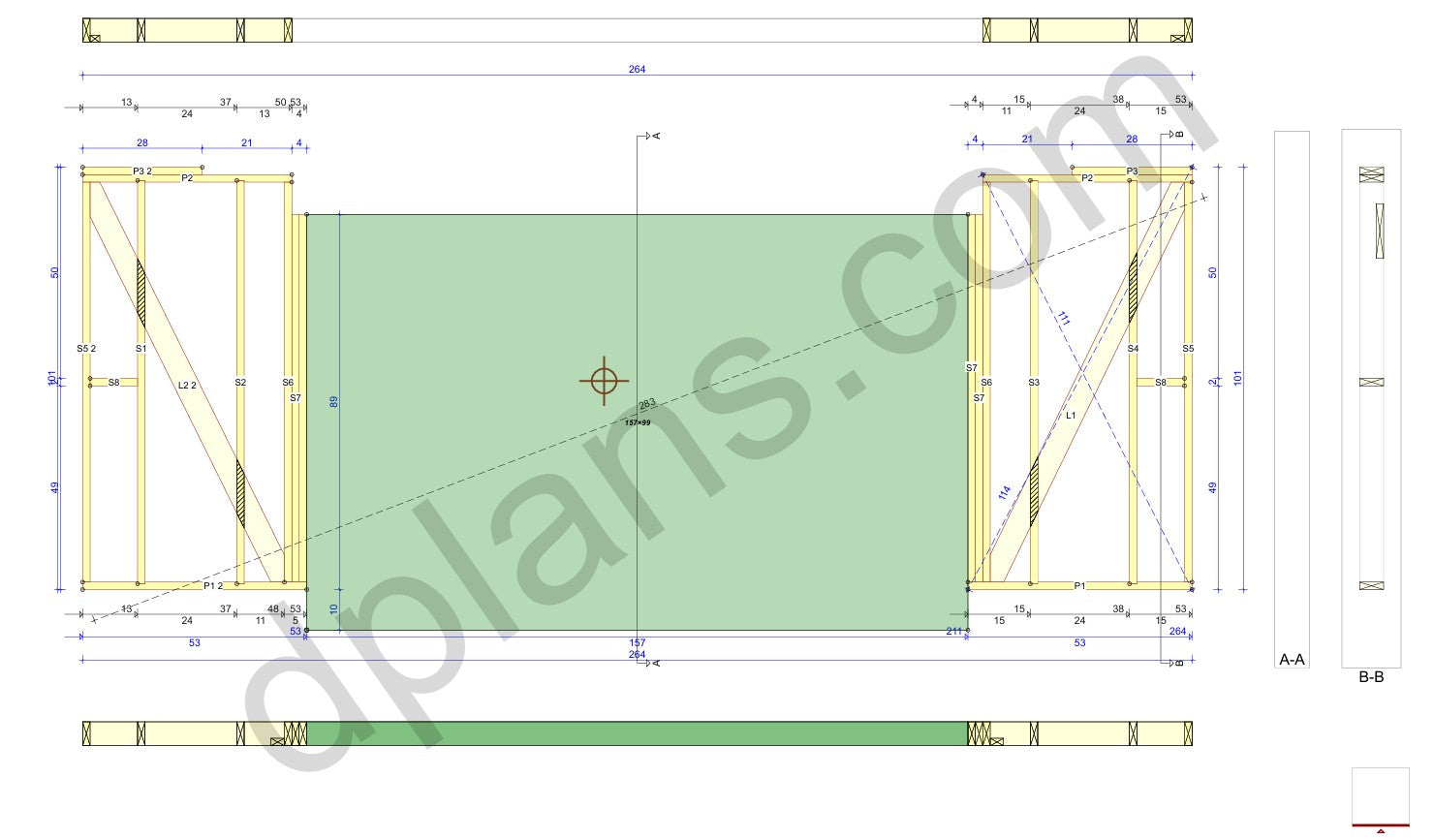

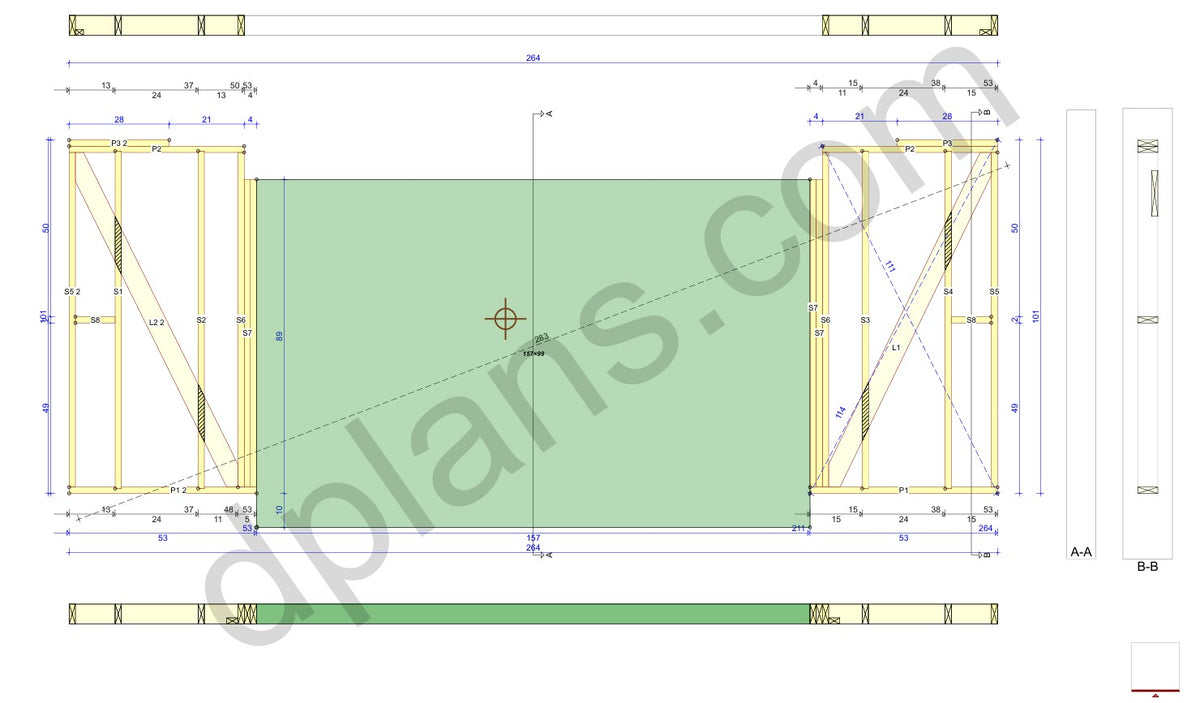

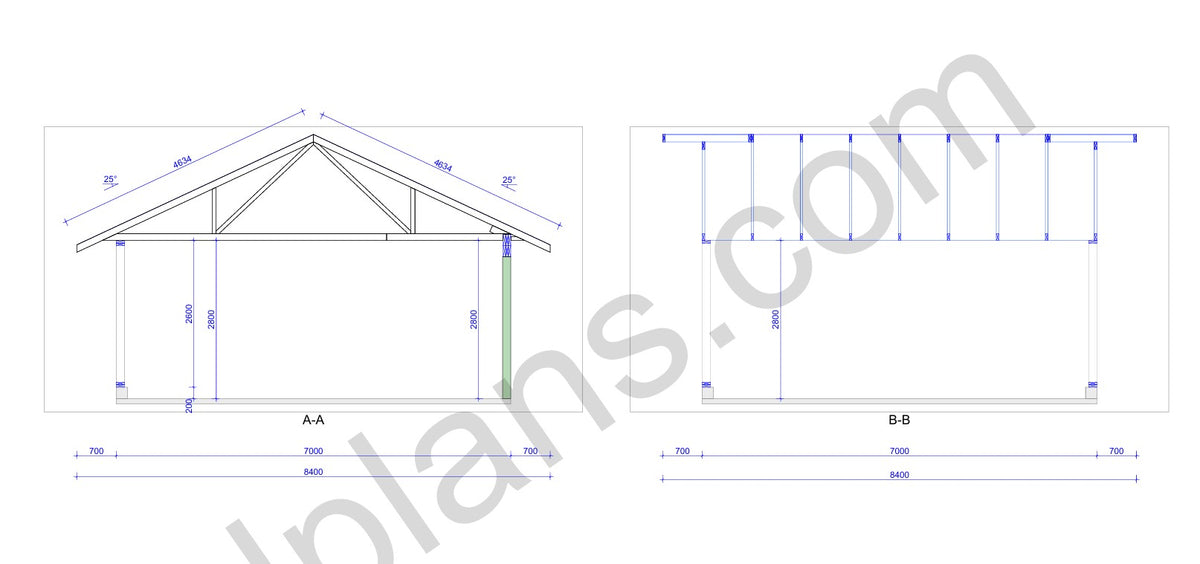

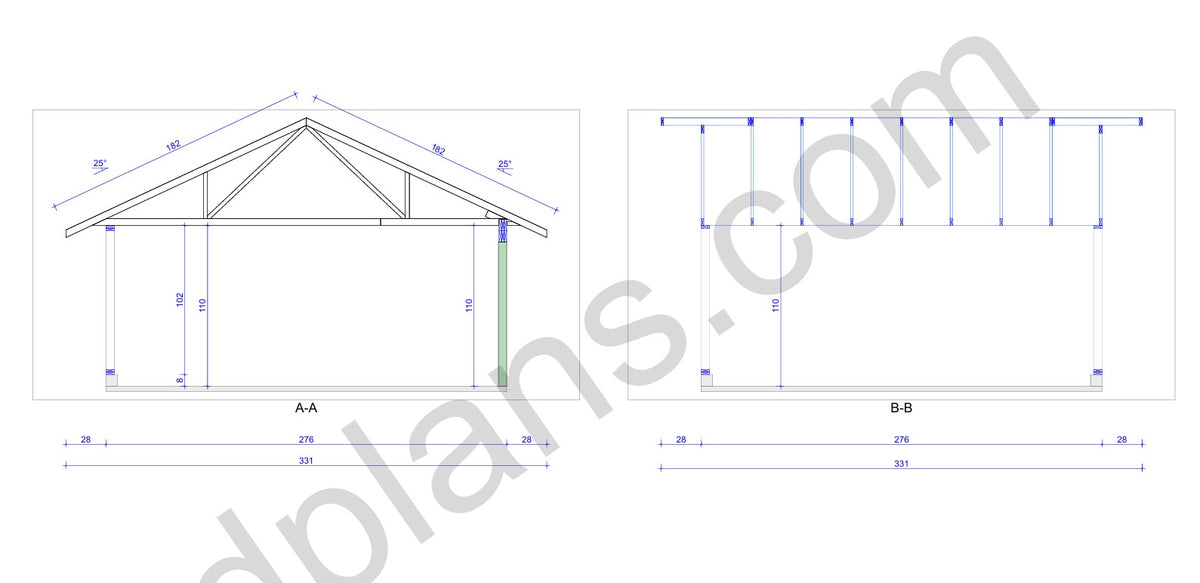

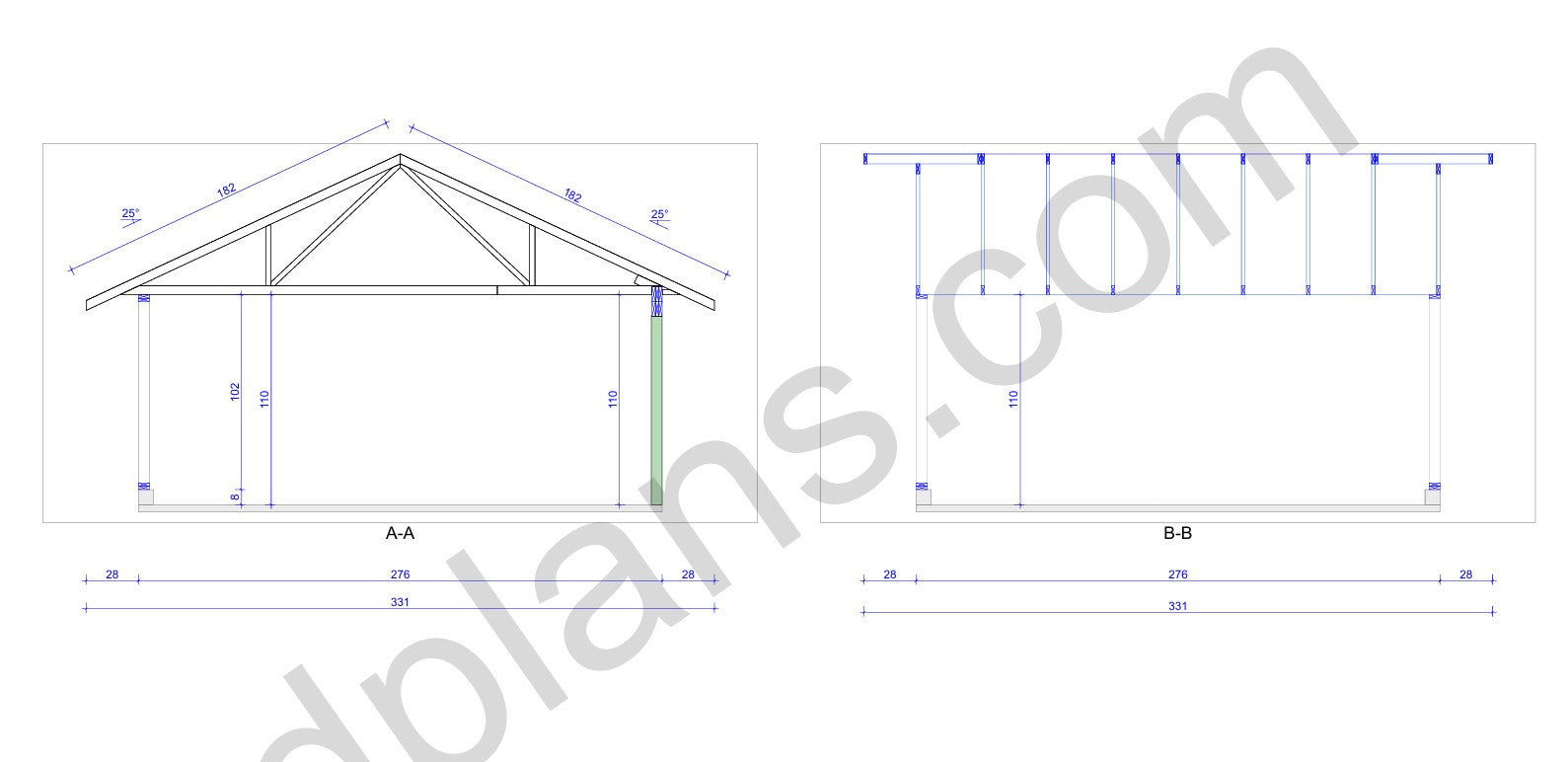

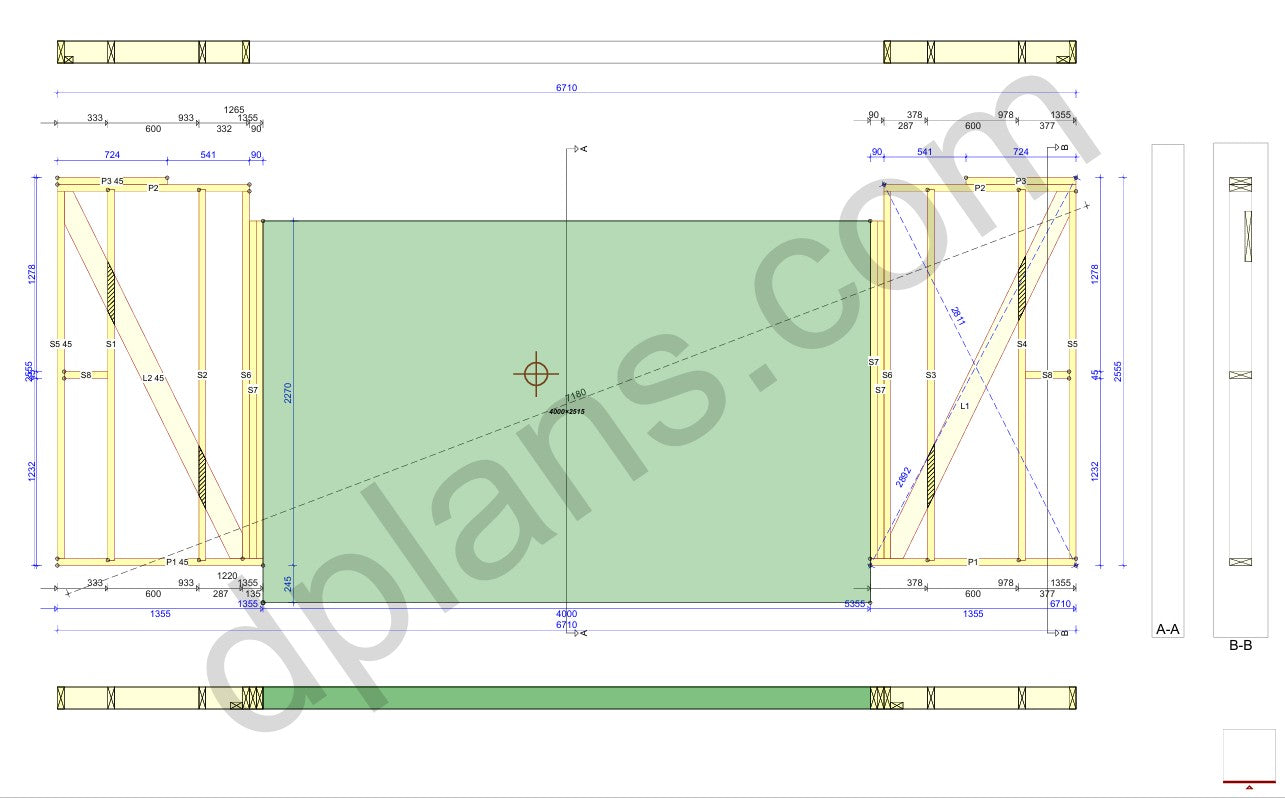

Structural Drawings: Detailed elevations, floor plan, roof framing layout, and wall sections showing all timber members and connections
-
Load Calculations: Full engineering analysis for dead loads, live loads, snow loads, and wind loads
-

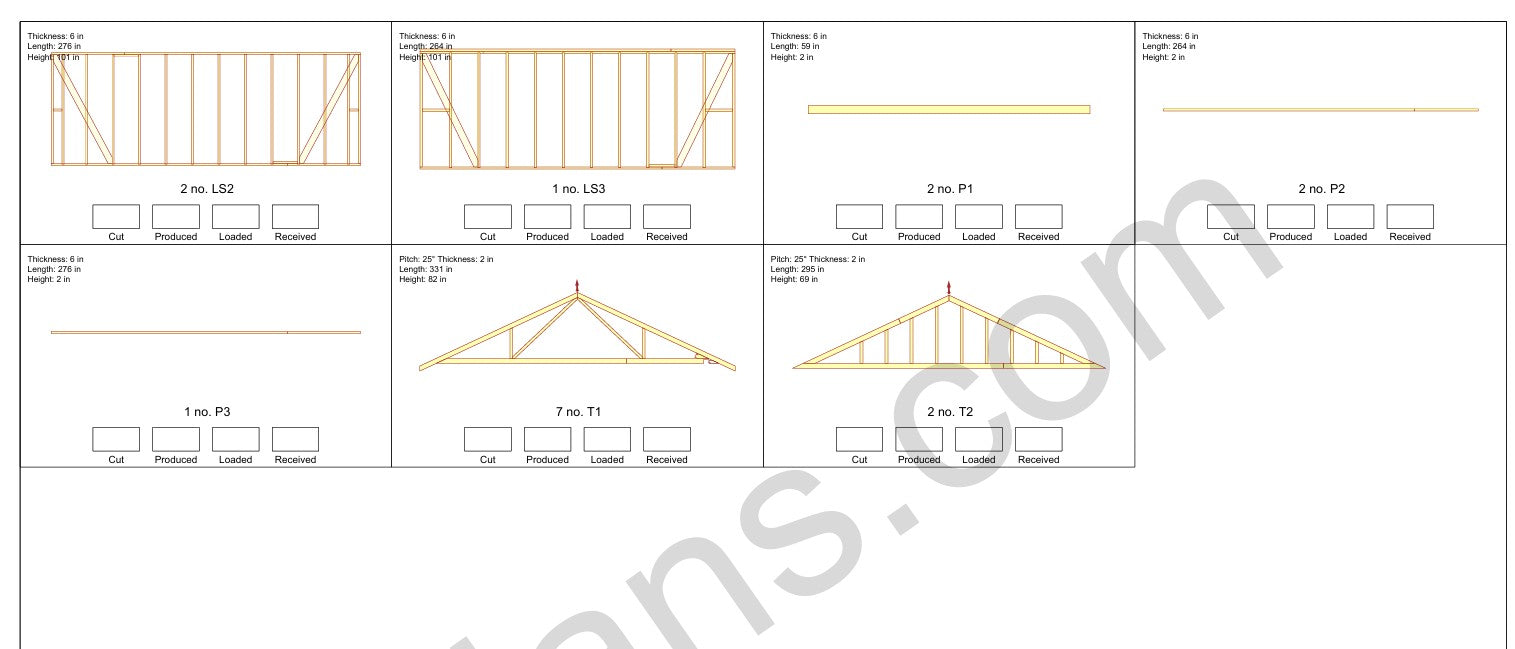

Production Drawings: Connector plate specifications and placement (where applicable to the design)
-

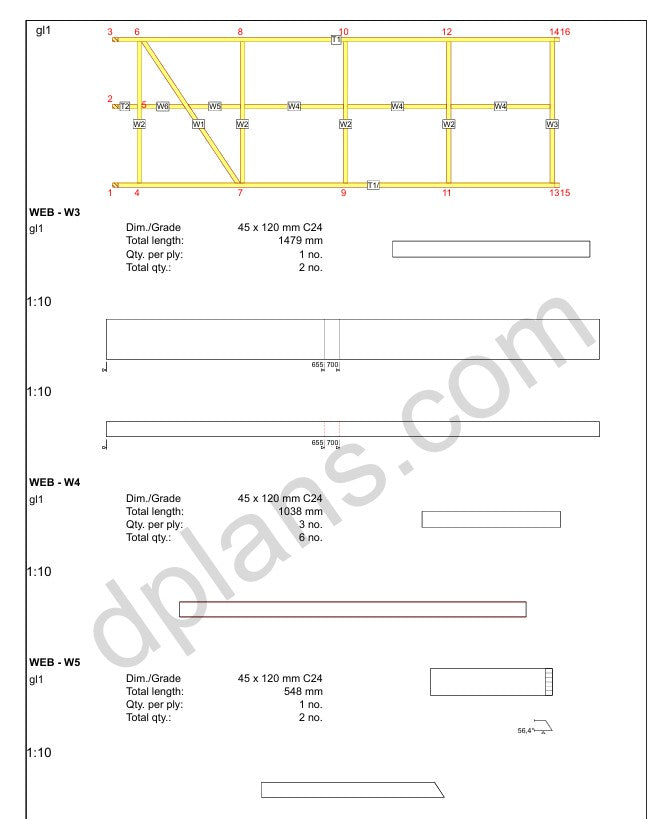

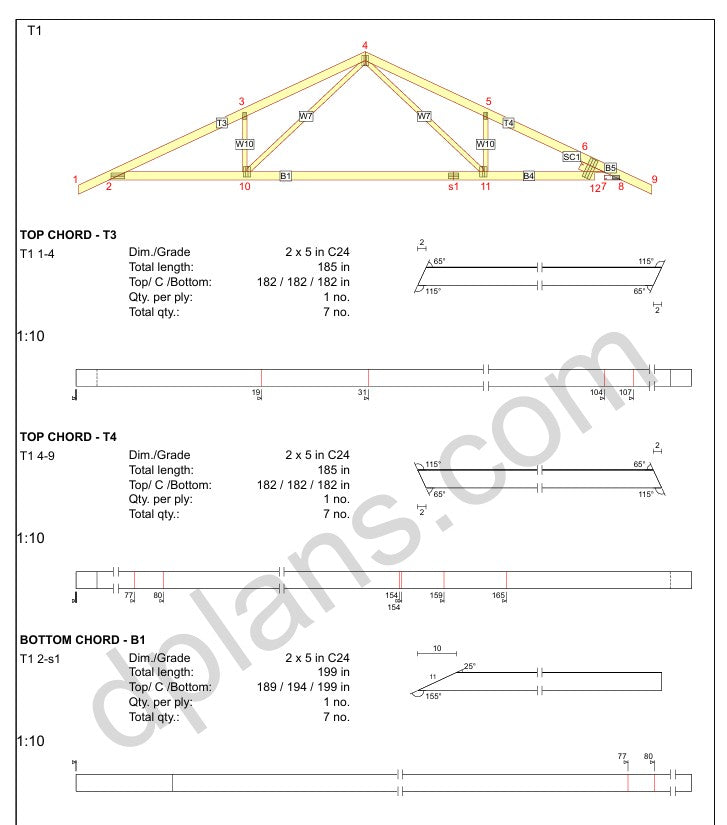

Cutting Bills: Exact dimensions and angles for every structural member - ready for cutting
-
Material Pick List: Complete timber quantities, fastener specifications, and hardware requirements
-

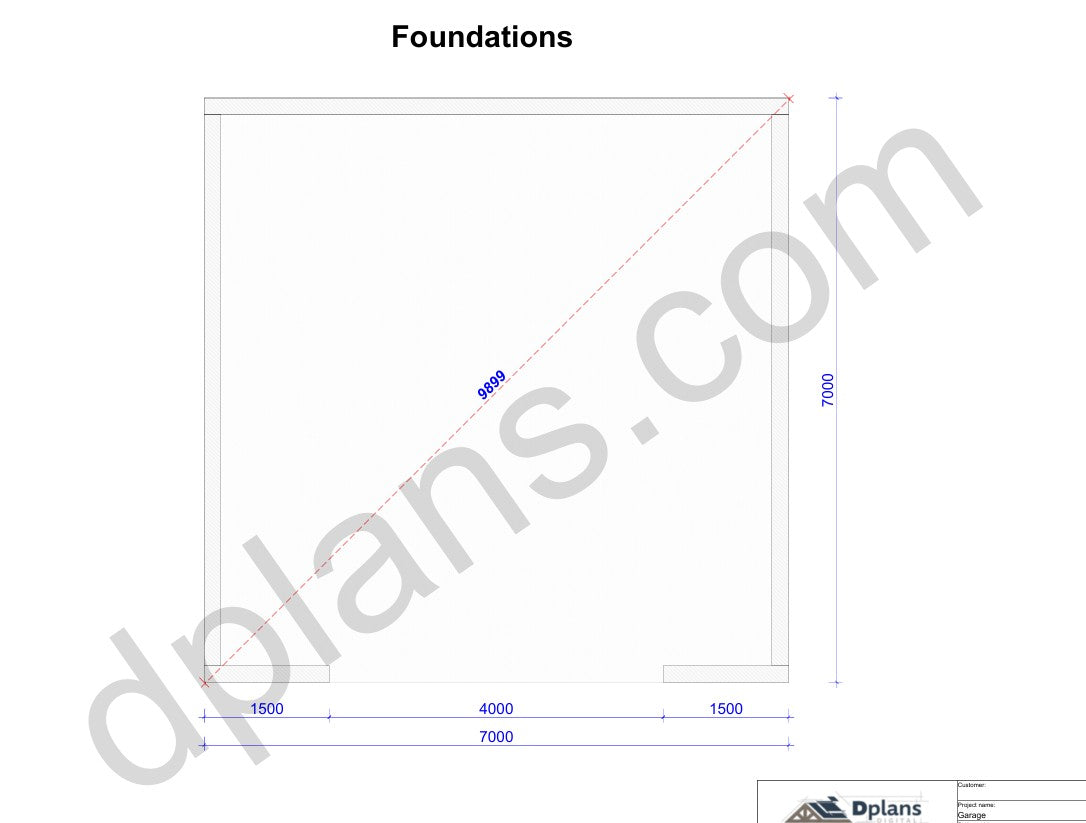

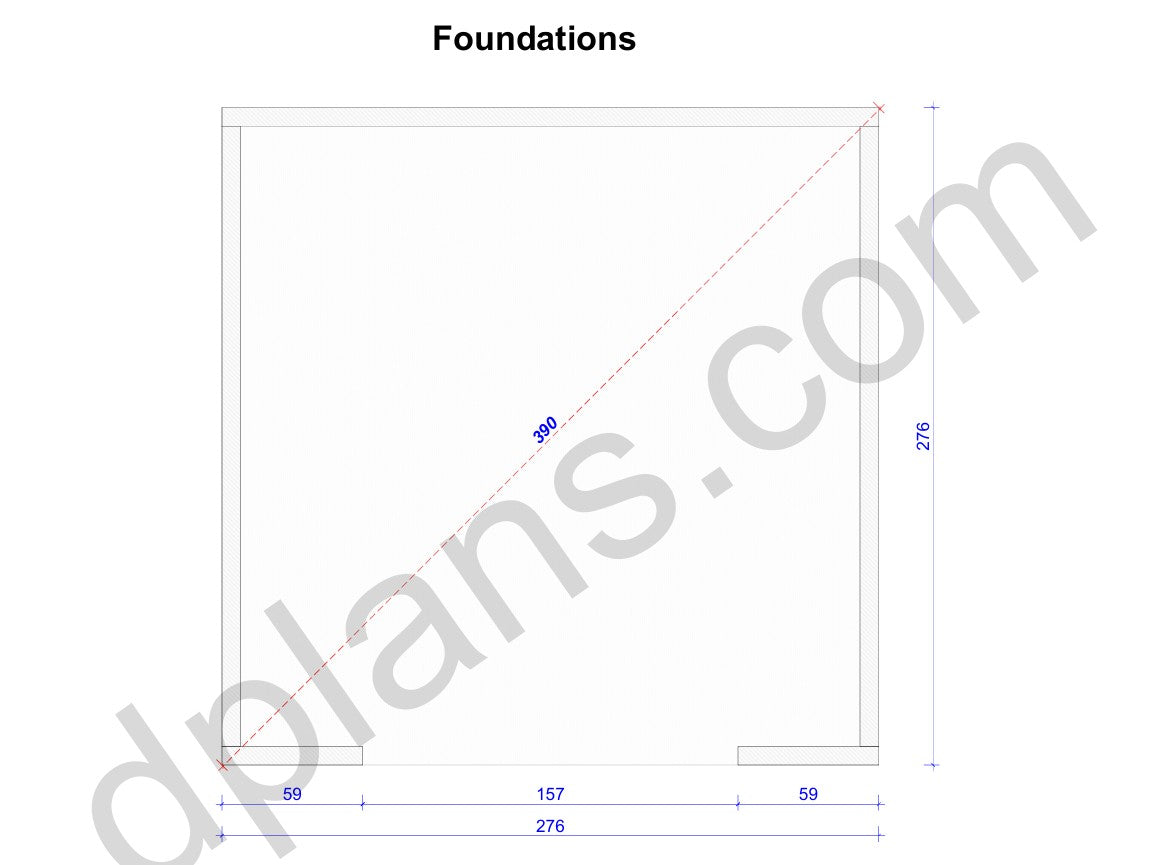

Foundation Layout: Perimeter and support structure details with anchor points
-

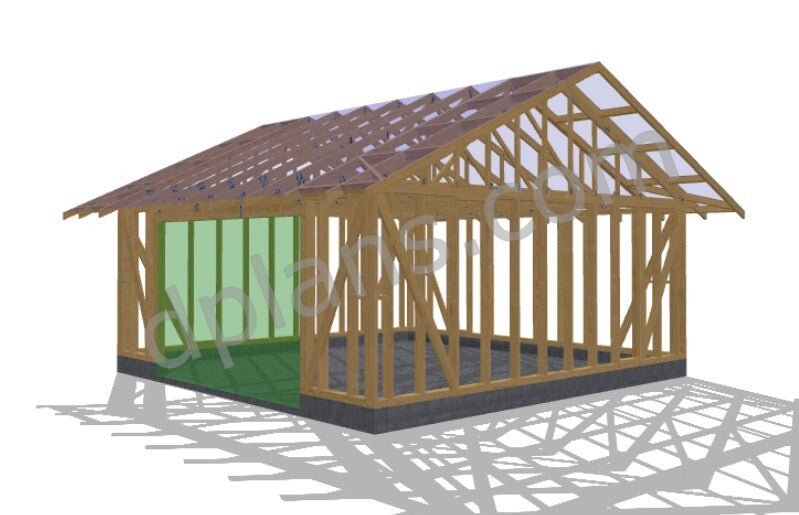

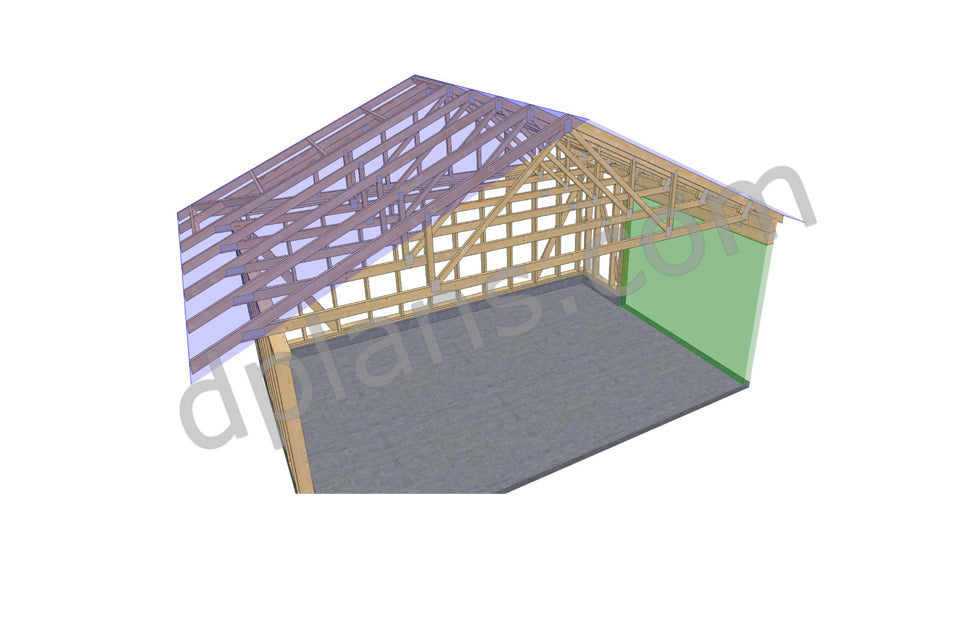

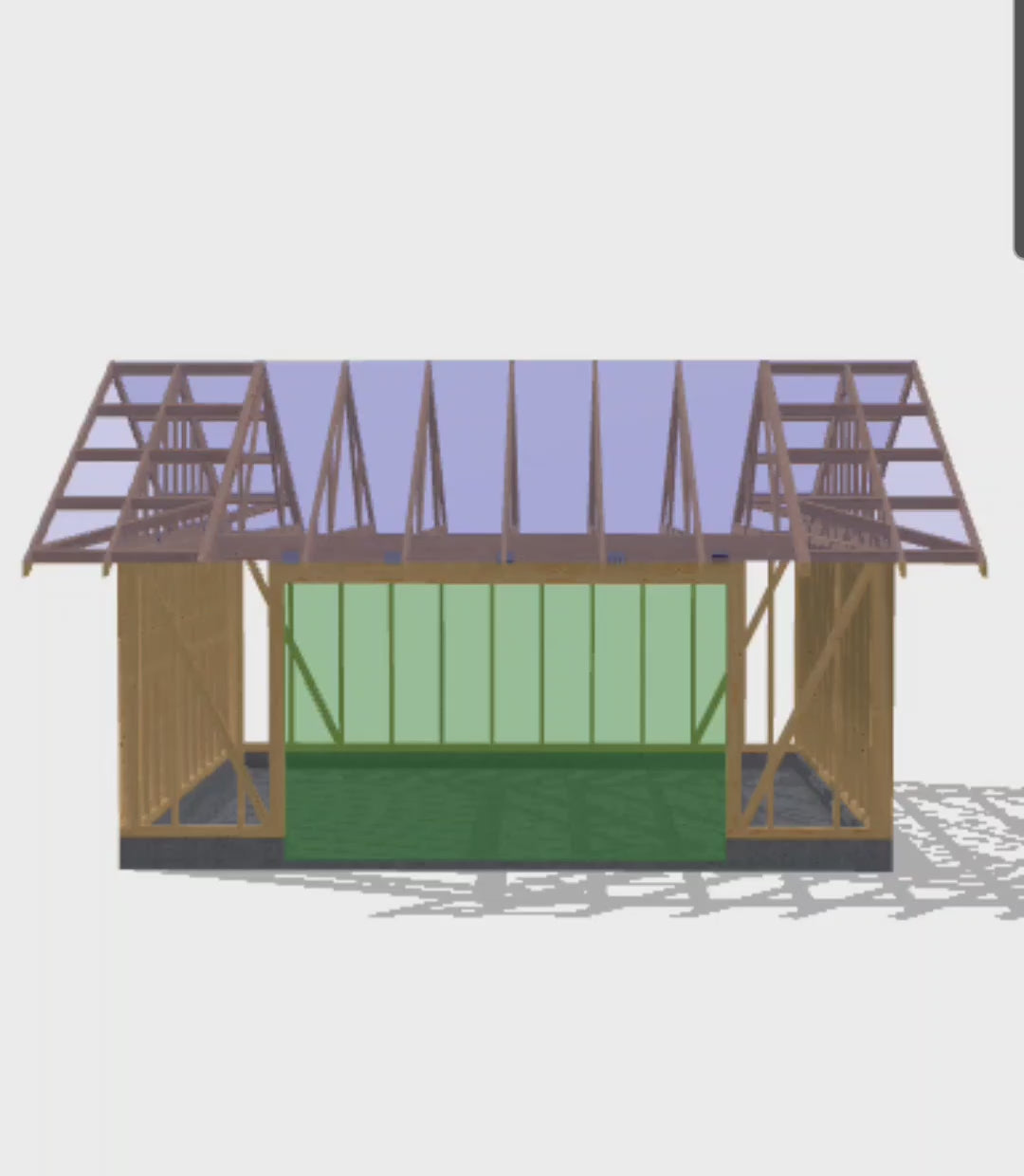

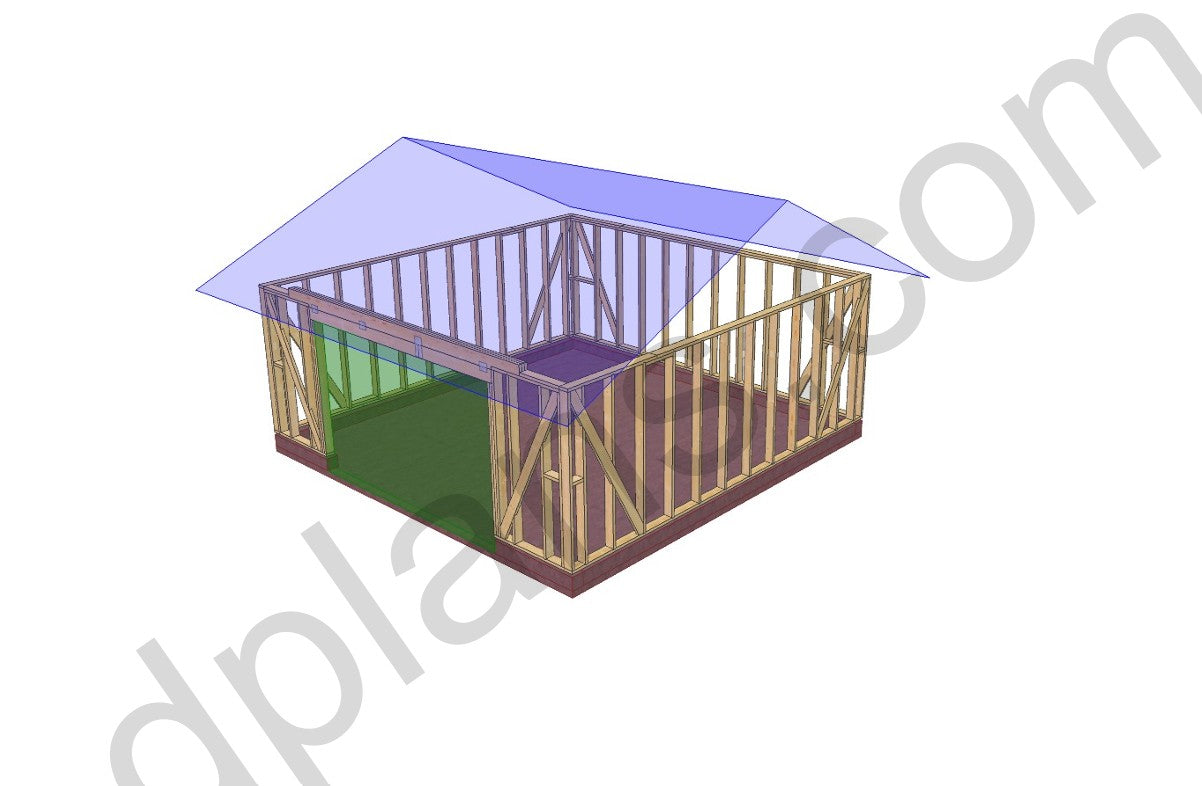

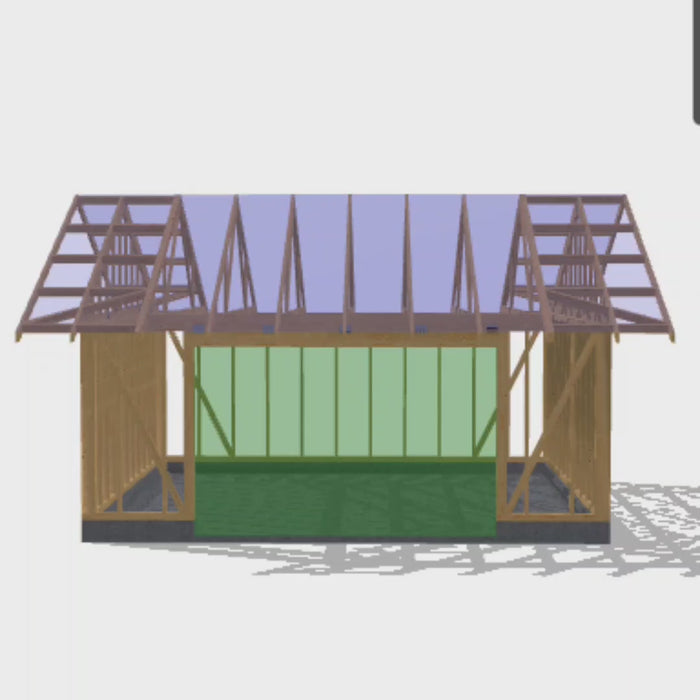

3D Visualization: Interactive 3D model accessible via QR code for spatial understanding
-
Dual Measurements: Separate folders with metric (mm) and imperial (inches) versions
This plan provides everything needed for construction. All structural connections are engineered with proper load distribution using MiTek's professional timber engineering system.
Choose Your Plan
Standard Plan includes complete PDF documentation - perfect for builders and contractors.
Pro Plan adds DWG files (for AutoCAD and CAD software), IFC files (for BIM applications like Revit), and access to MiTek Pamir viewer software for enhanced technical viewing. Choose Pro if you need to import plans into CAD software for modifications or work with BIM workflows.
