Movable Timber-Frame Cabin 22m² (237 sq ft) - DP2025P034
Structure Type: Timber-frame movable cabin on elevated foundation
Building Area: 22m² (237 sq ft)
Foundation Type: Screw/pile foundation
Ideal For: Portable cabins, temporary housing, seasonal structures, remote site offices, or relocatable guest houses
Structure Details

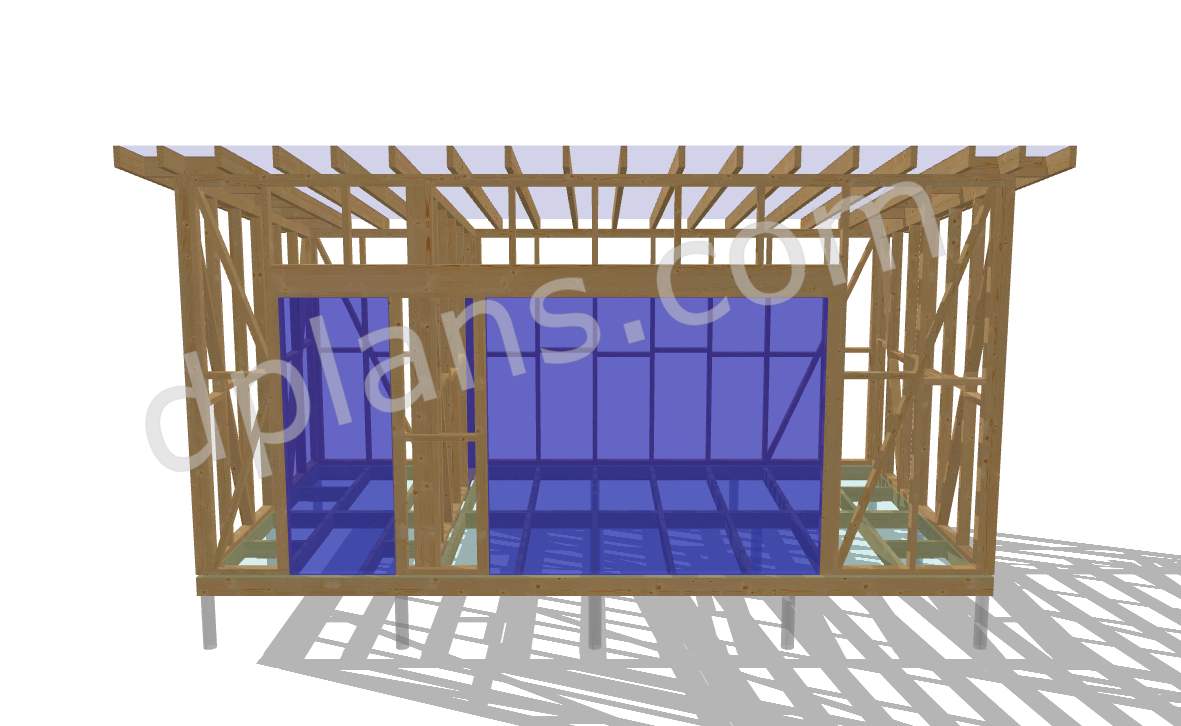

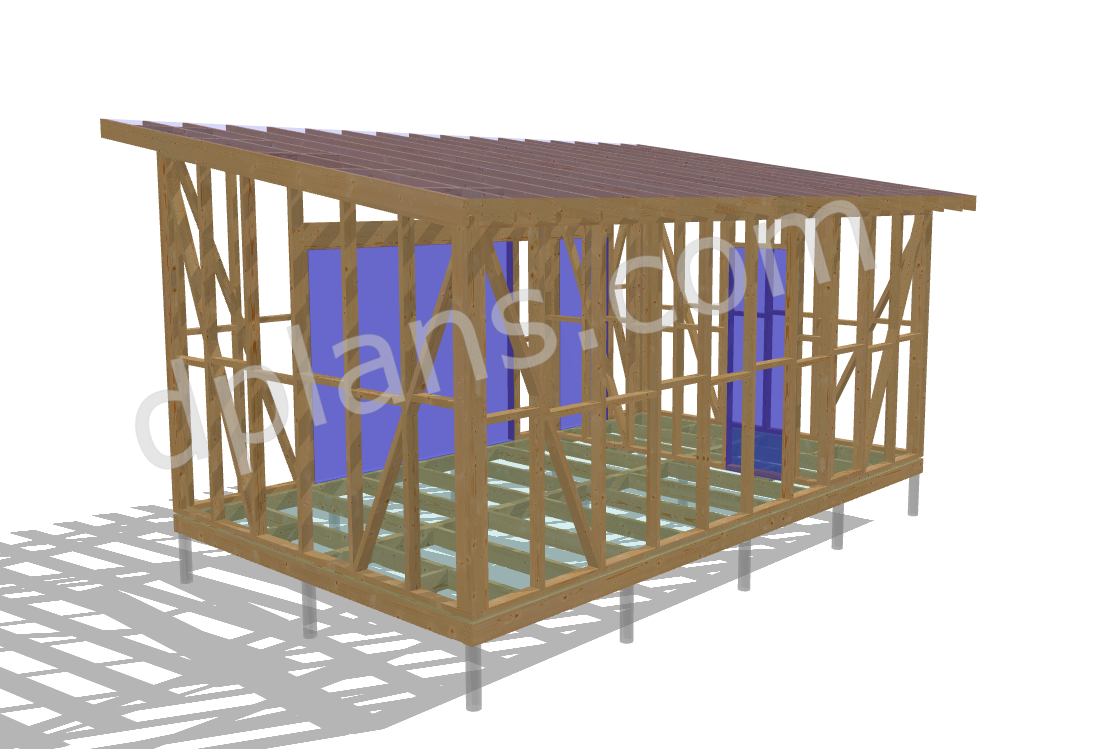

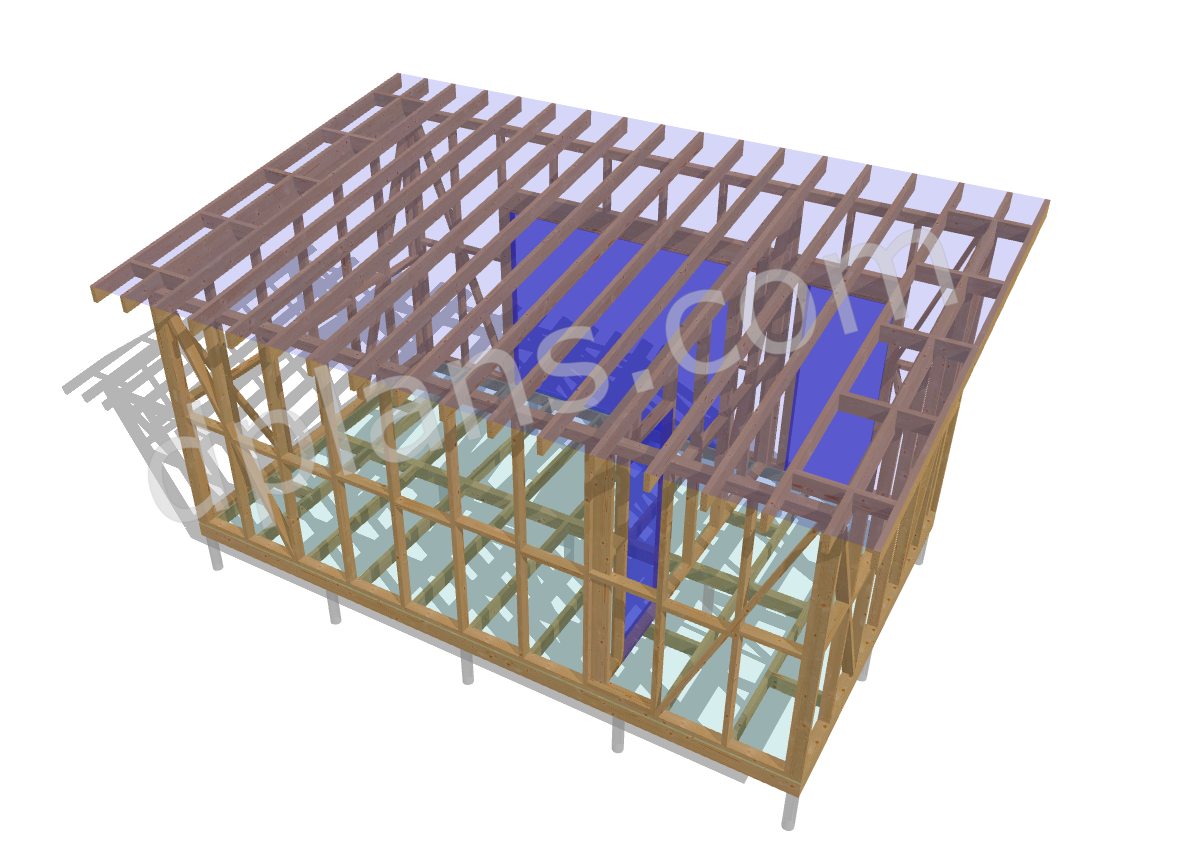

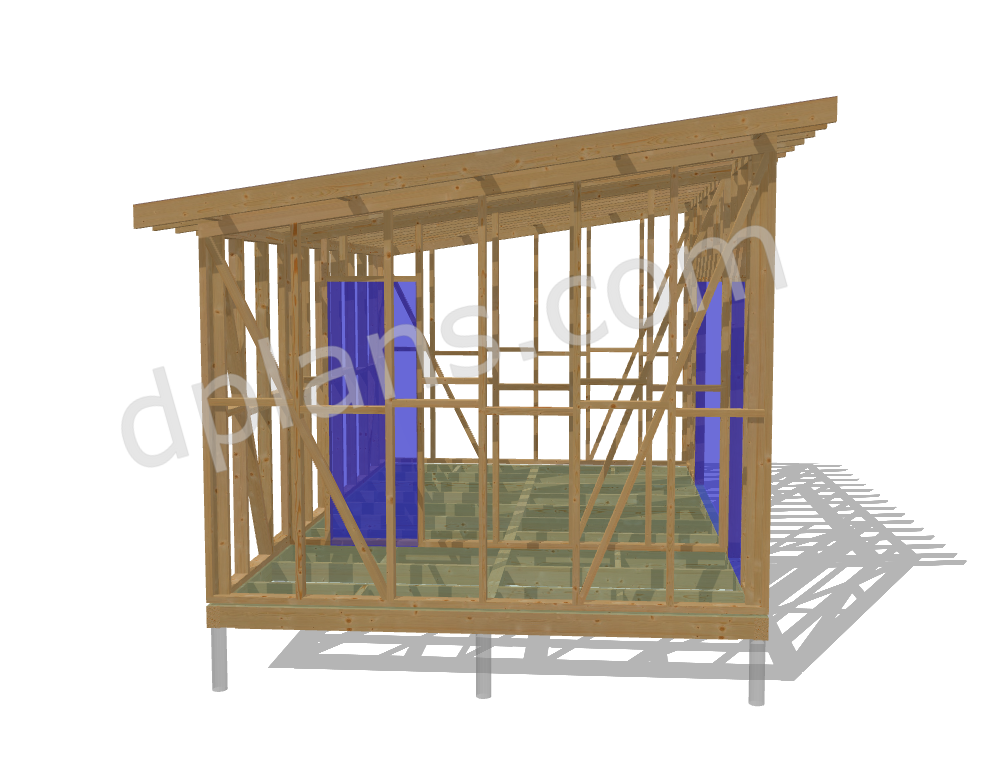

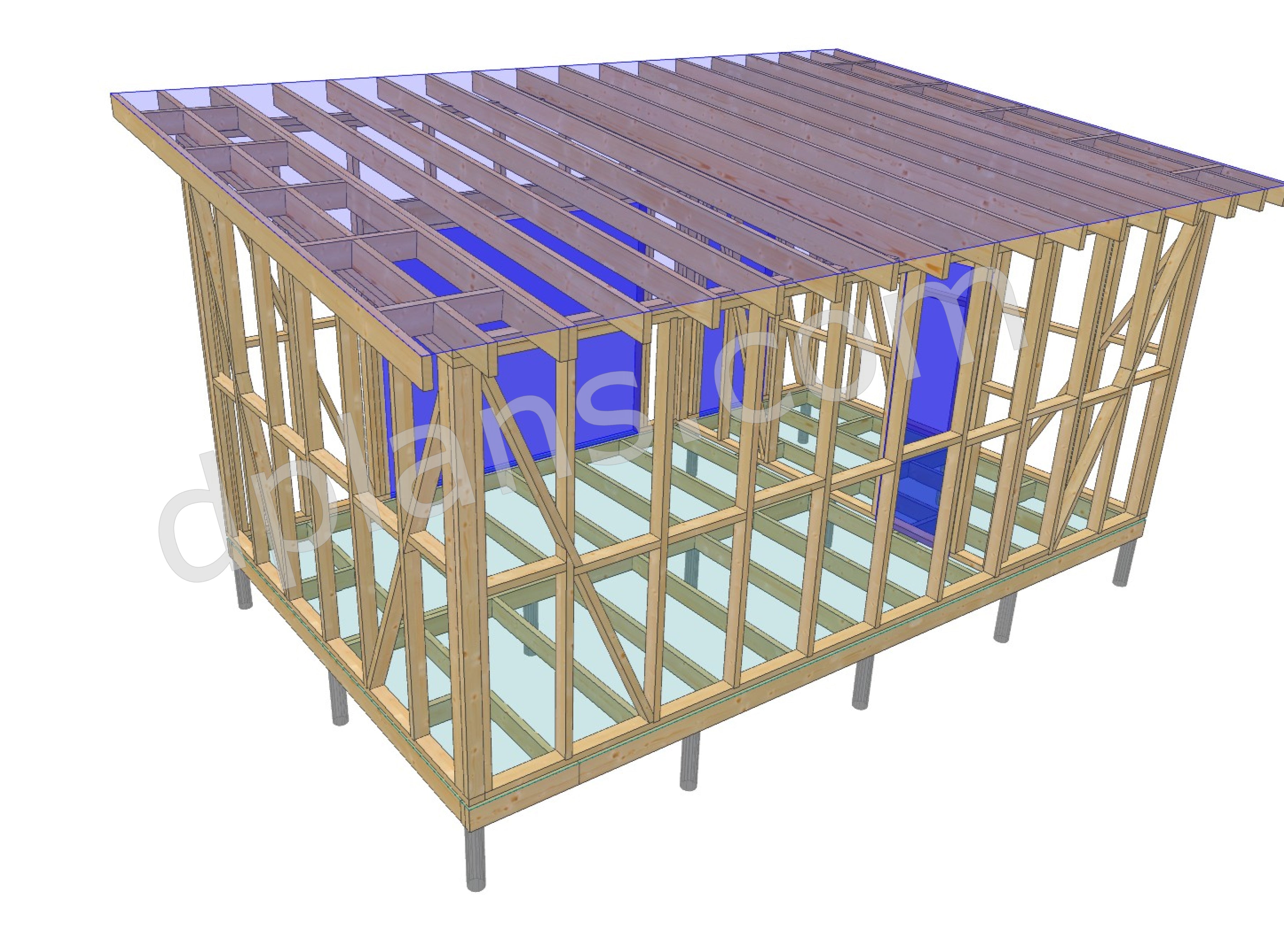

This compact movable cabin features a shed-style roof design with an elevated foundation system. The 22m² (237 sq ft) interior provides flexible space for temporary or seasonal housing, remote work offices, or guest accommodations. The elevated screw/pile foundation allows for installation on various terrain types and enables potential relocation if needed. The timber-frame construction ensures structural stability while maintaining the possibility of disassembly and relocation. Large window openings maximize natural light throughout the interior. Structural members are optimized for standard dimensional lumber availability.
What's Included
Complete structural engineering package created with licensed MiTek Pamir software:
-

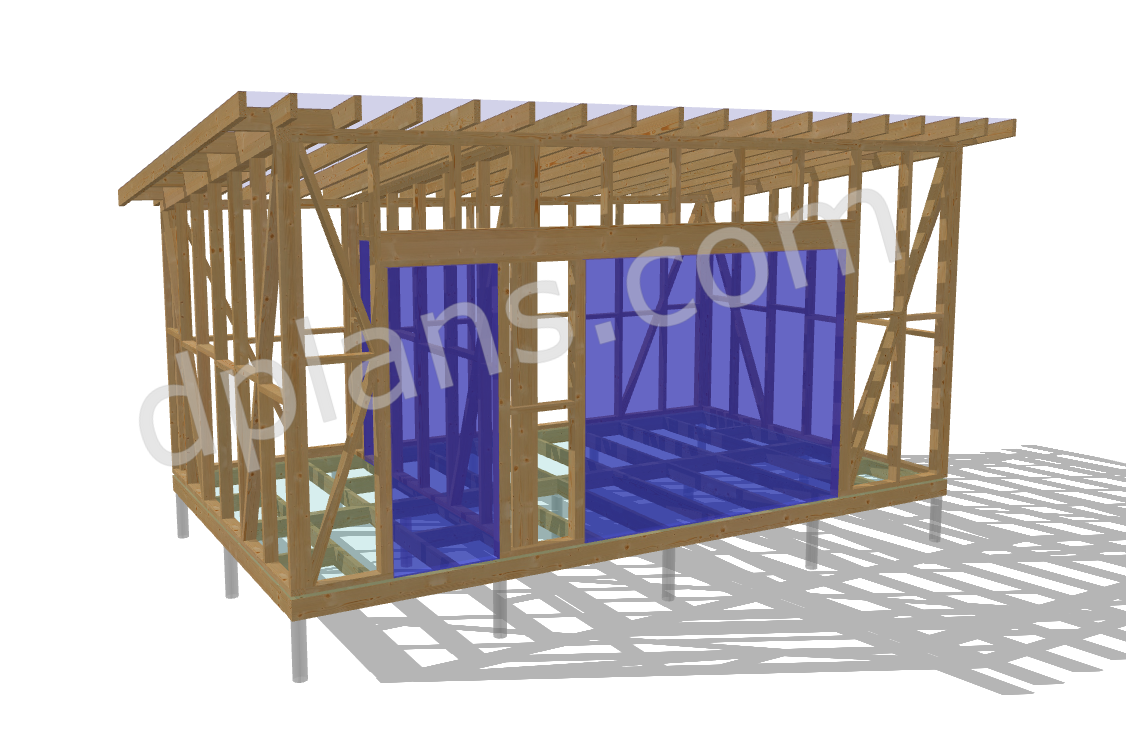

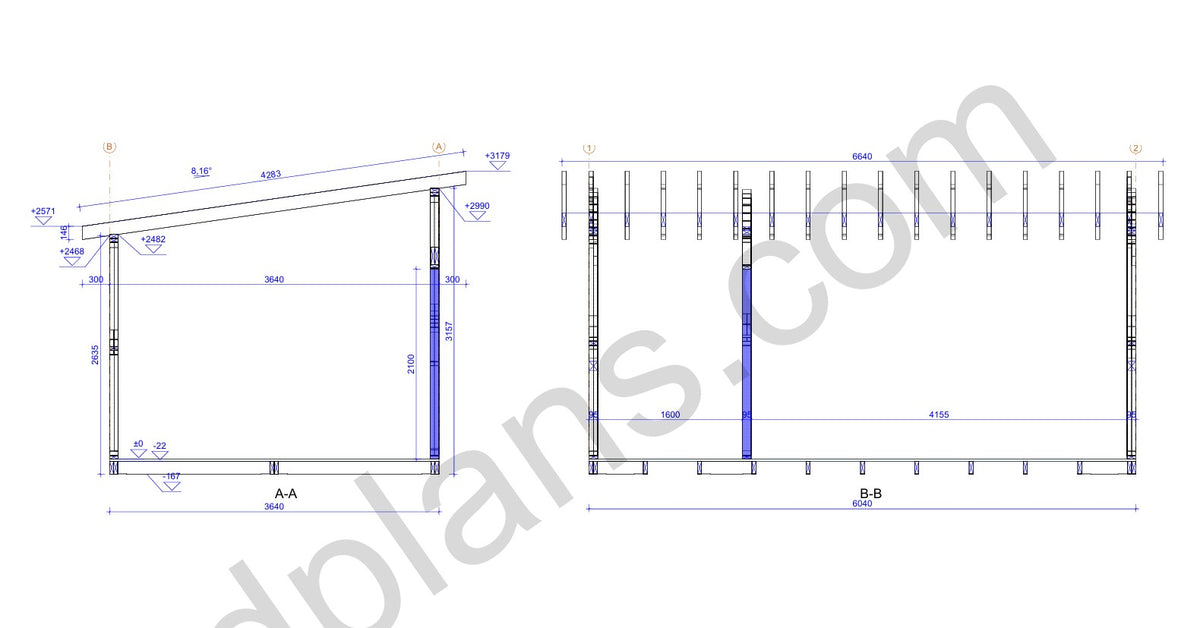

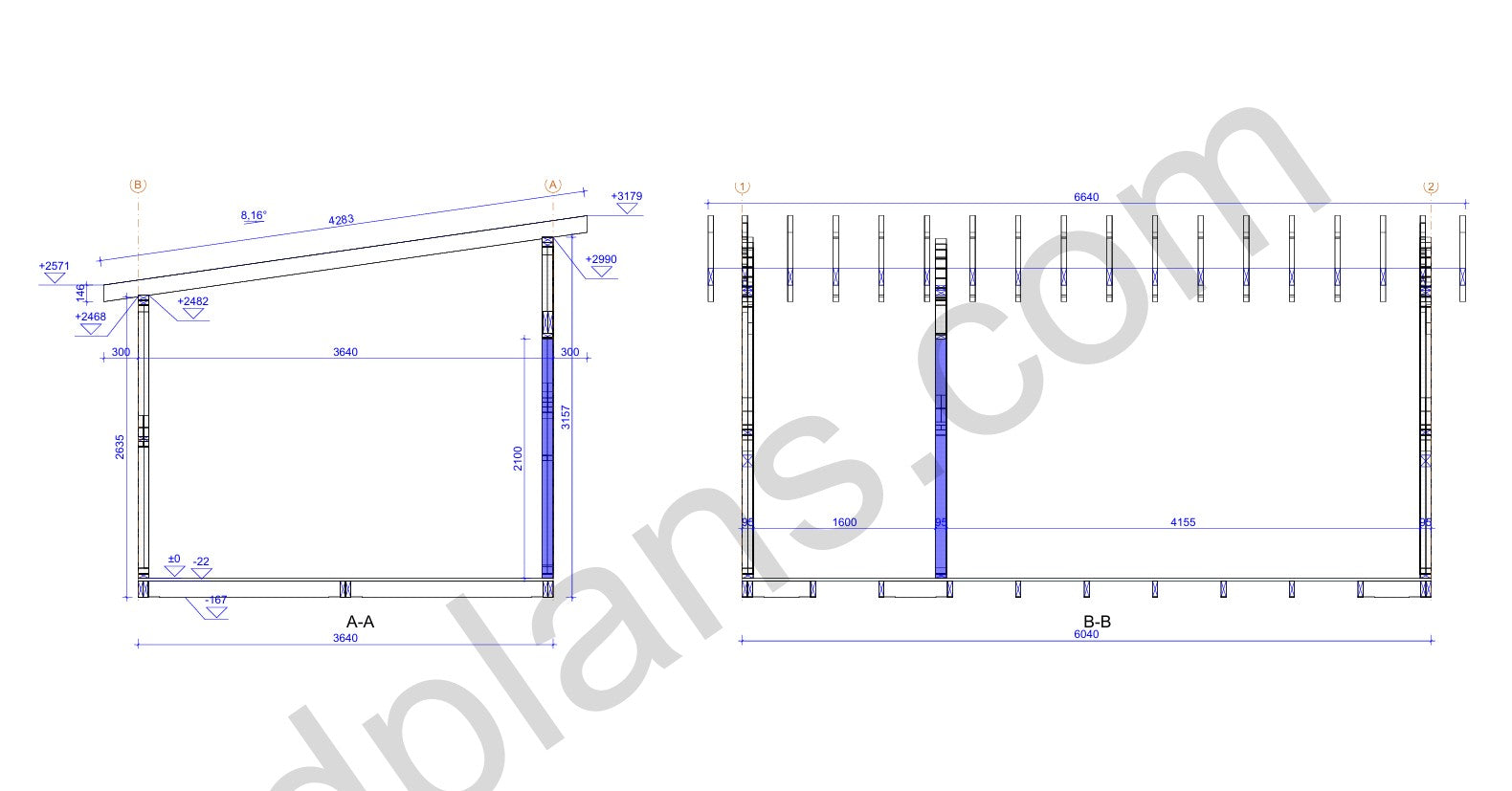

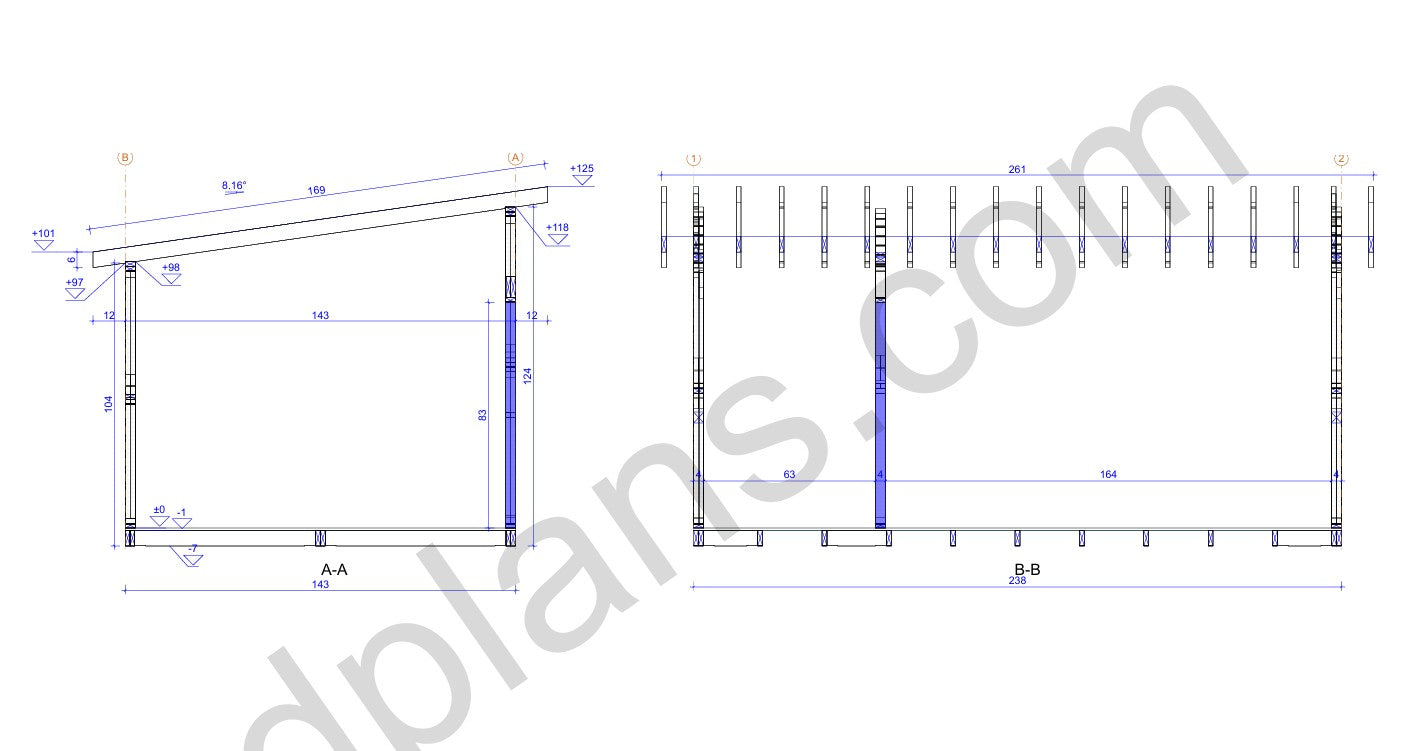

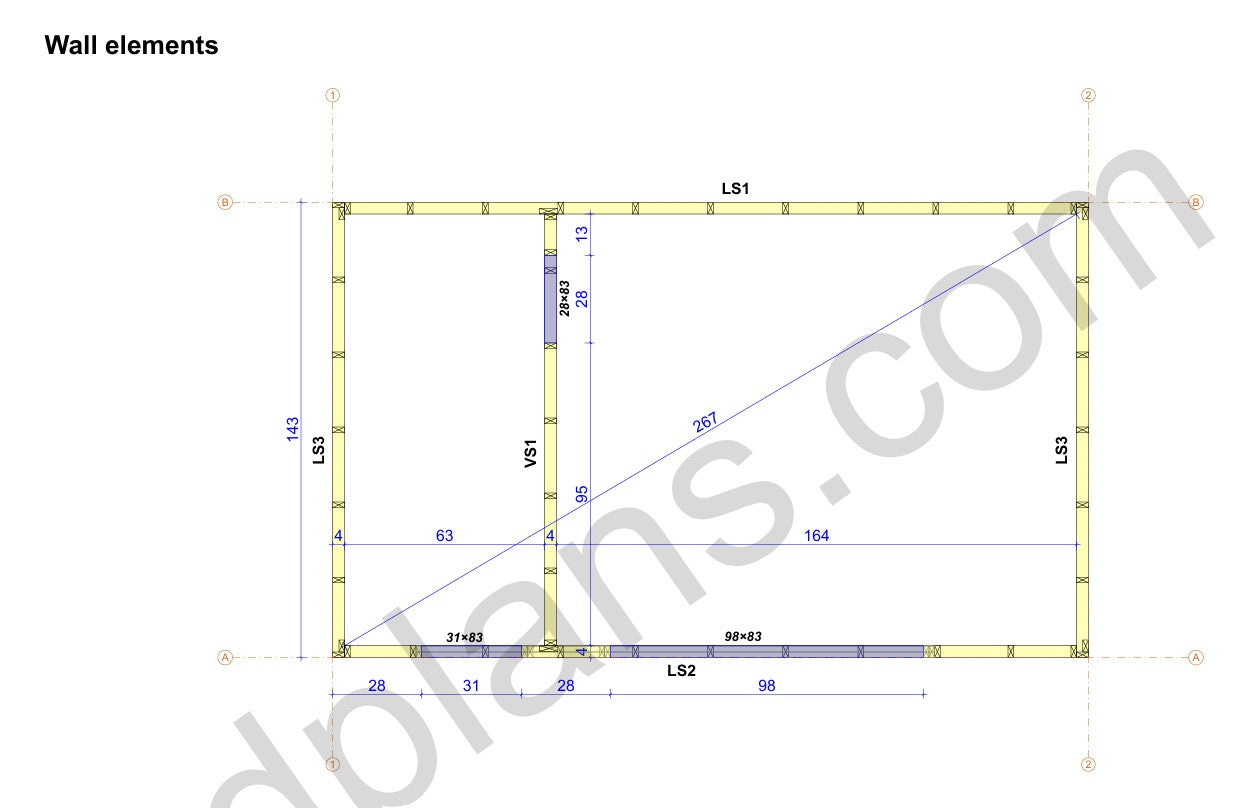

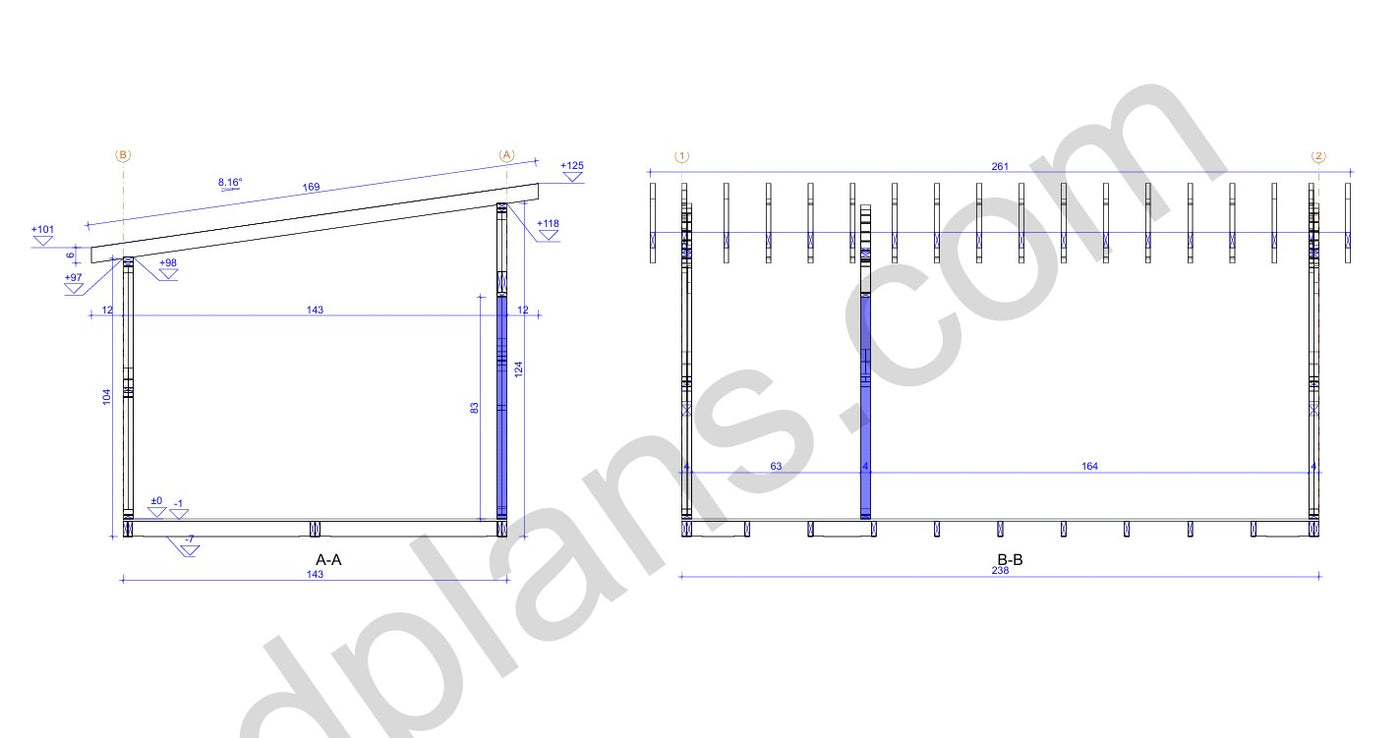

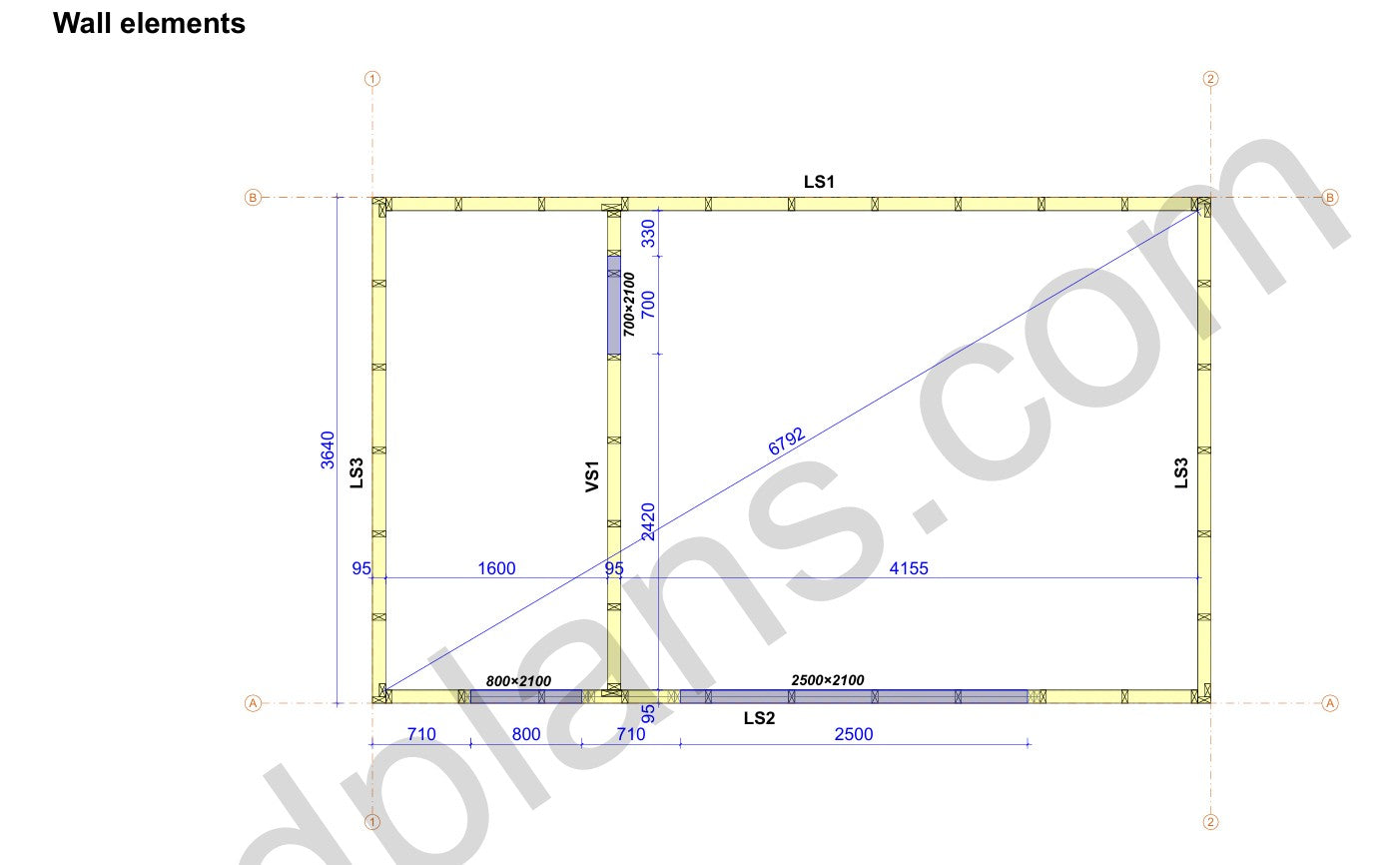

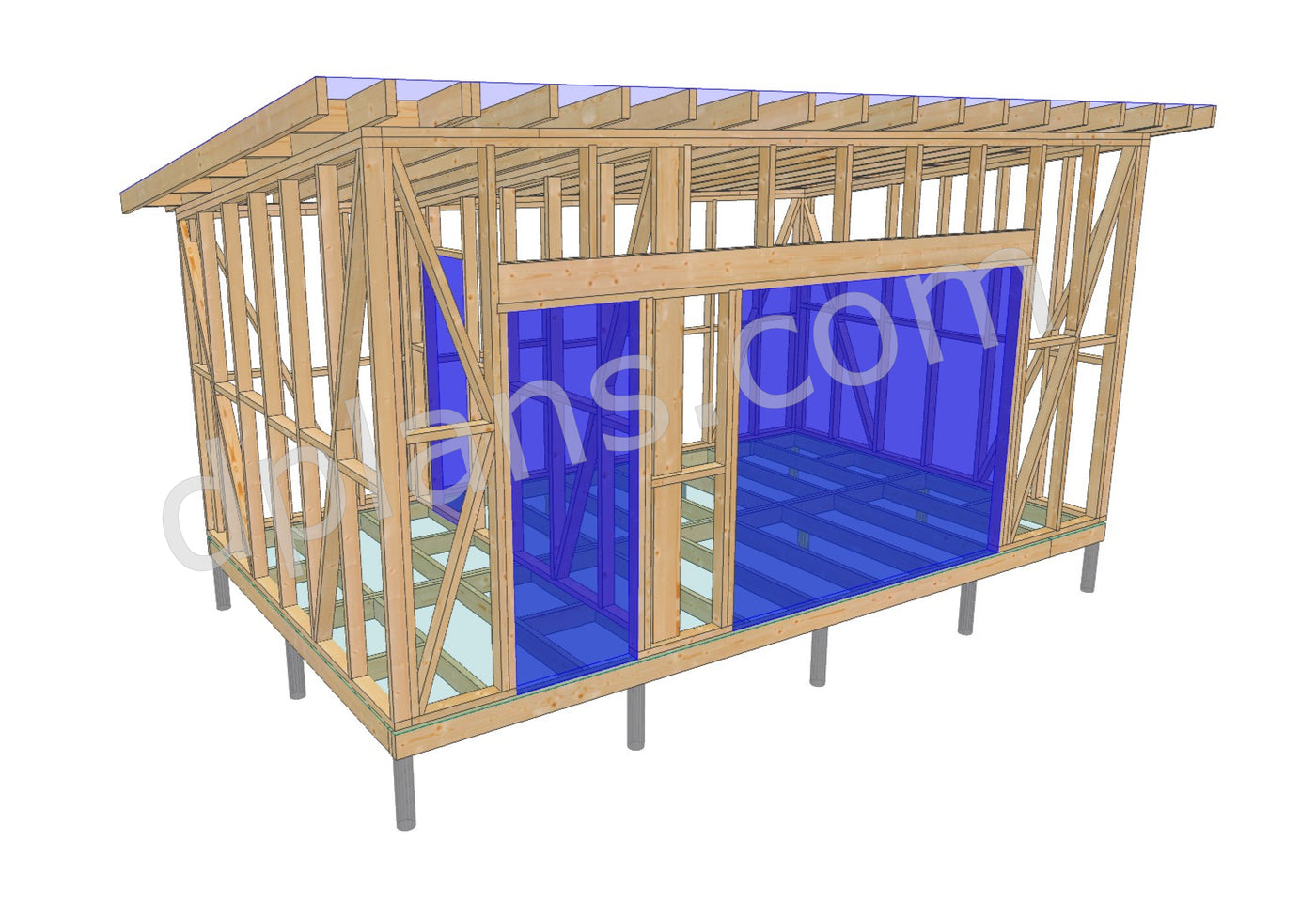

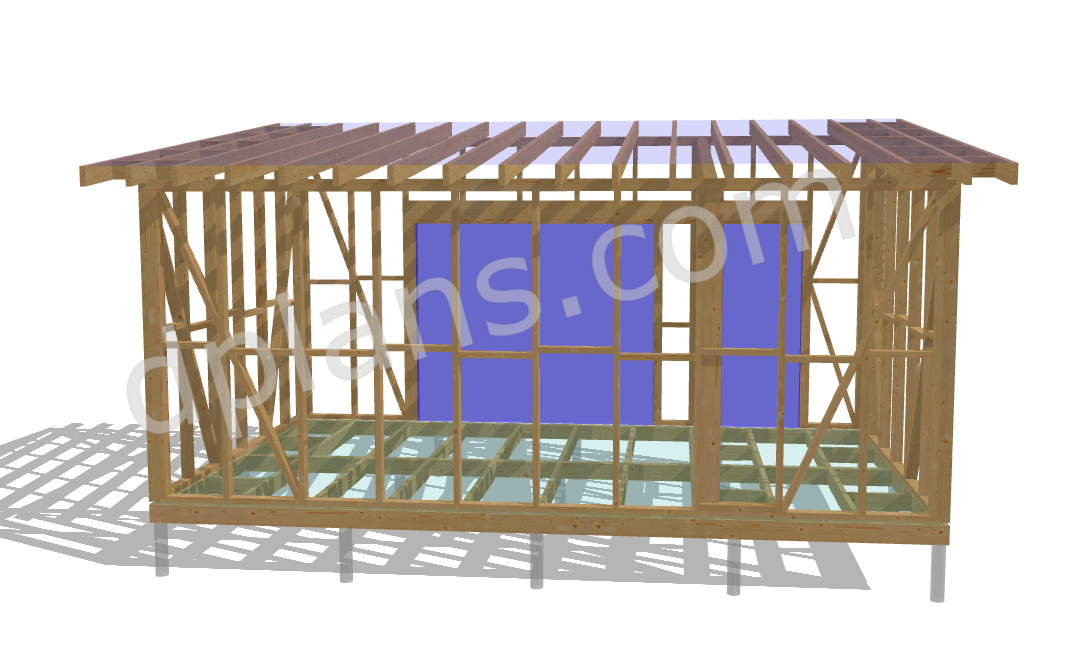

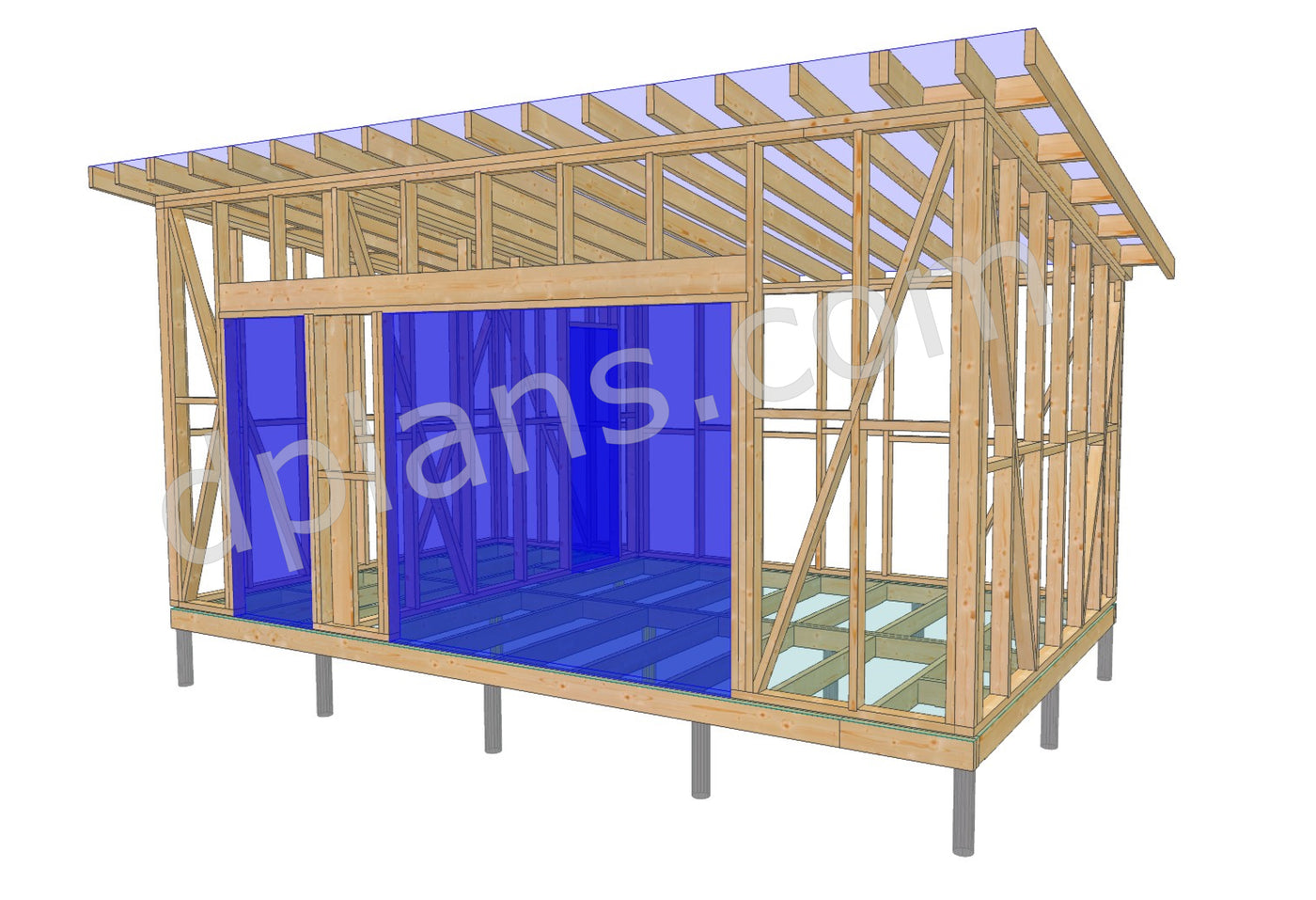

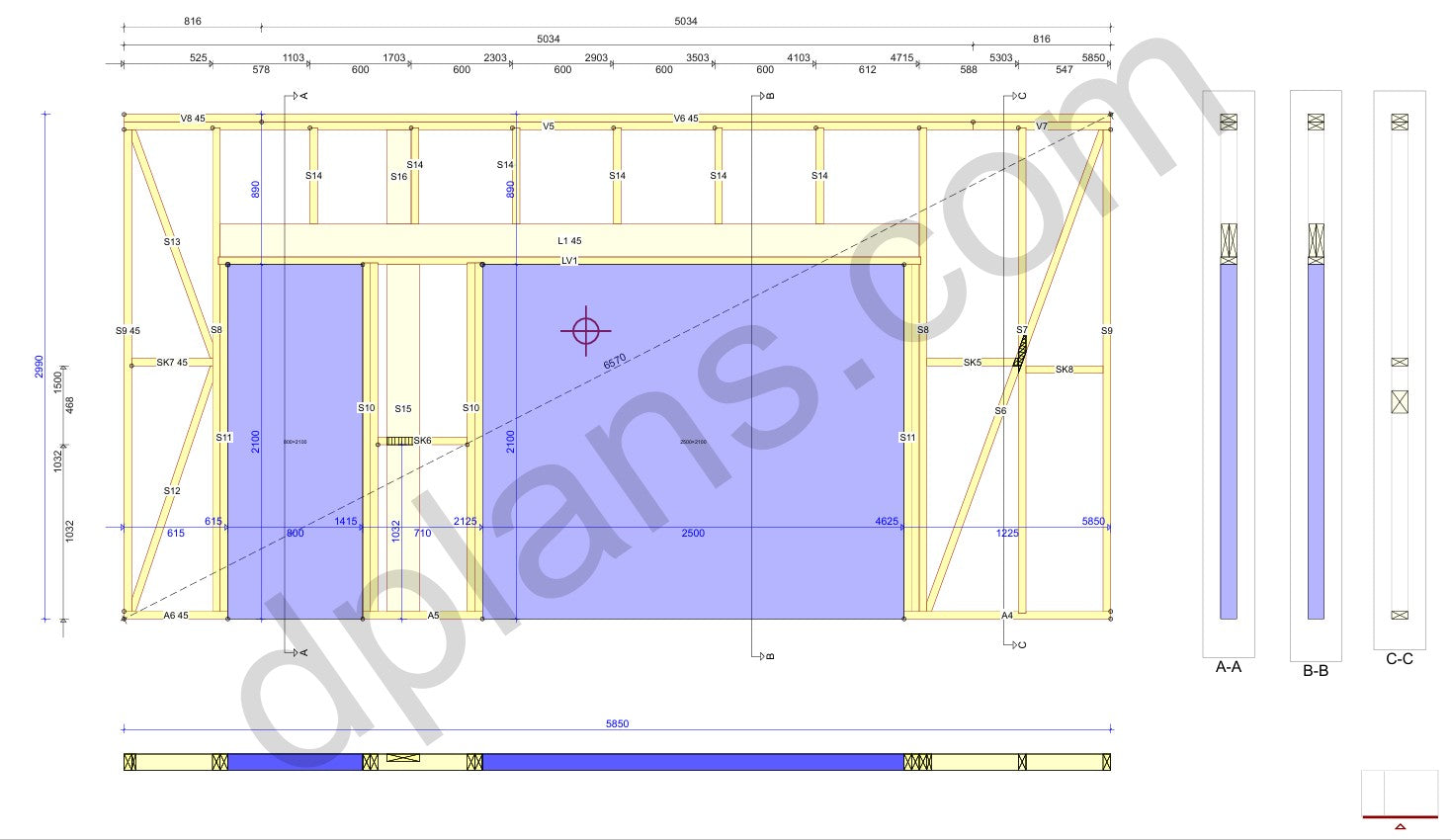

Structural Drawings: Detailed elevations, floor plan, roof framing layout, and wall sections showing all timber members and connections
-
Load Calculations: Full engineering analysis for dead loads, live loads, snow loads, and wind loads
-
Production Drawings: Connector plate specifications and placement (where applicable to the design)
-

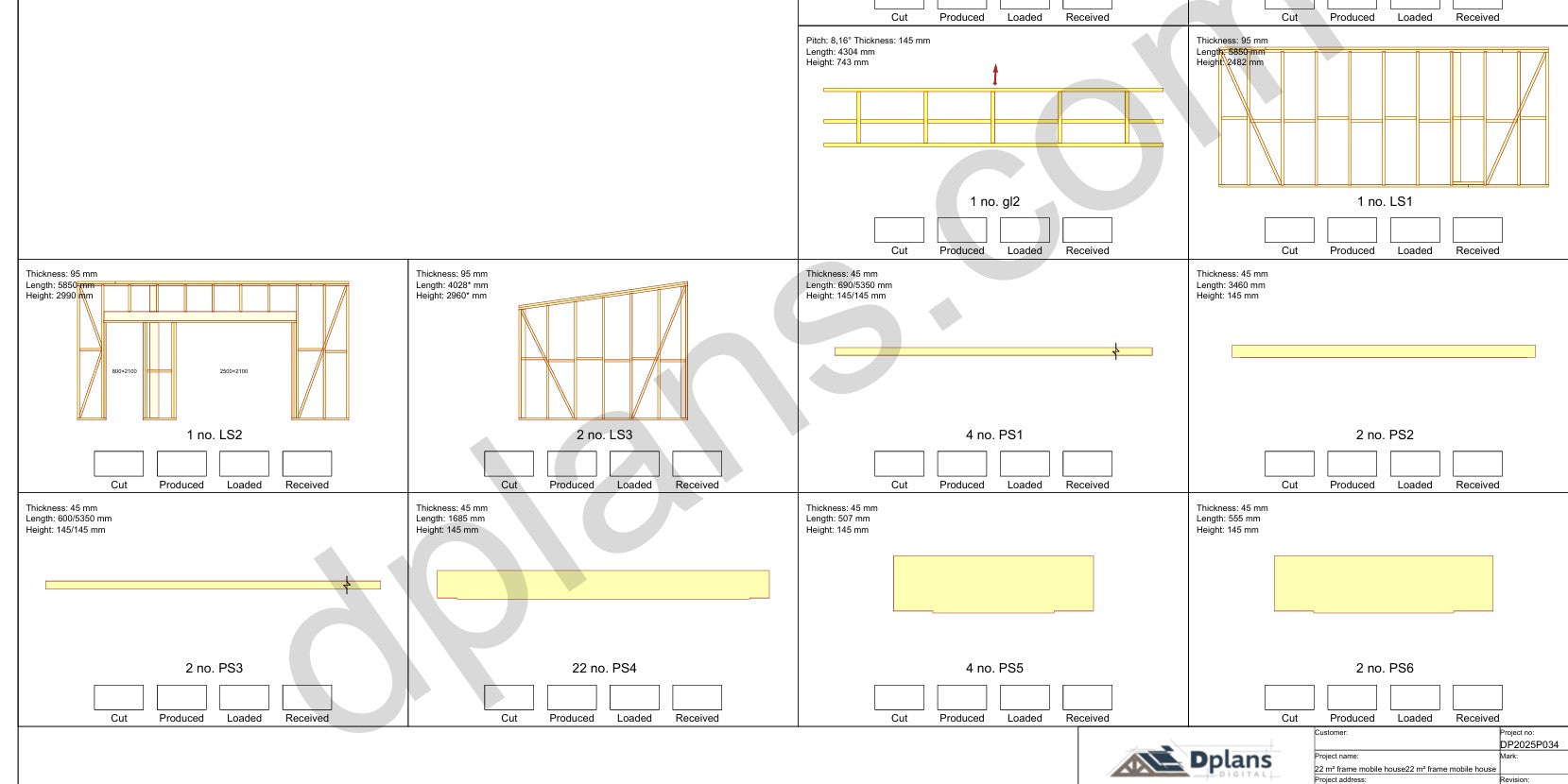

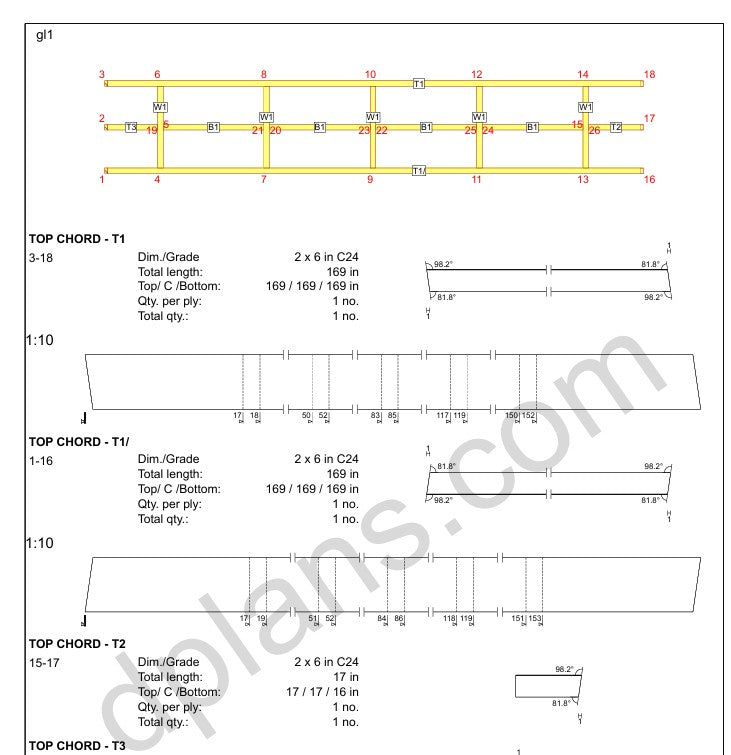

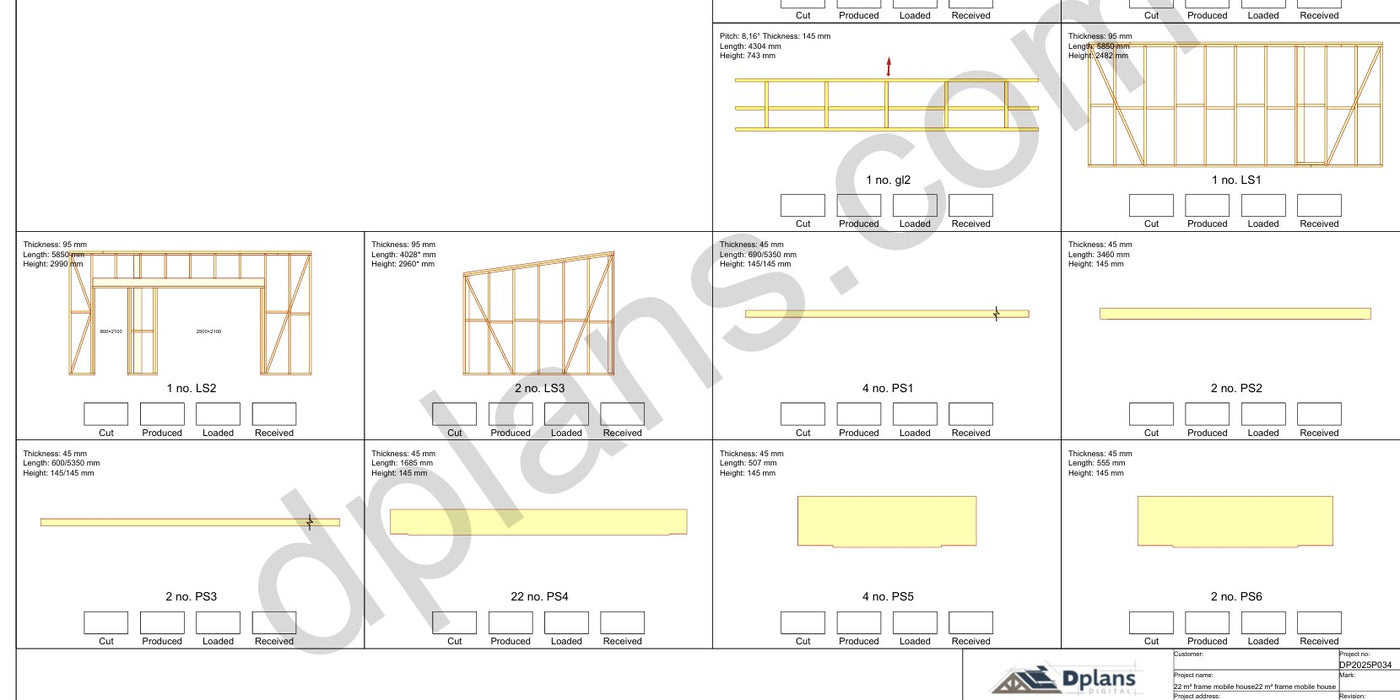

Cutting Bills: Exact dimensions and angles for every structural member - ready for cutting
-
Material Pick List: Complete timber quantities, fastener specifications, and hardware requirements
-
Foundation Layout: Perimeter and support structure details with anchor points
-

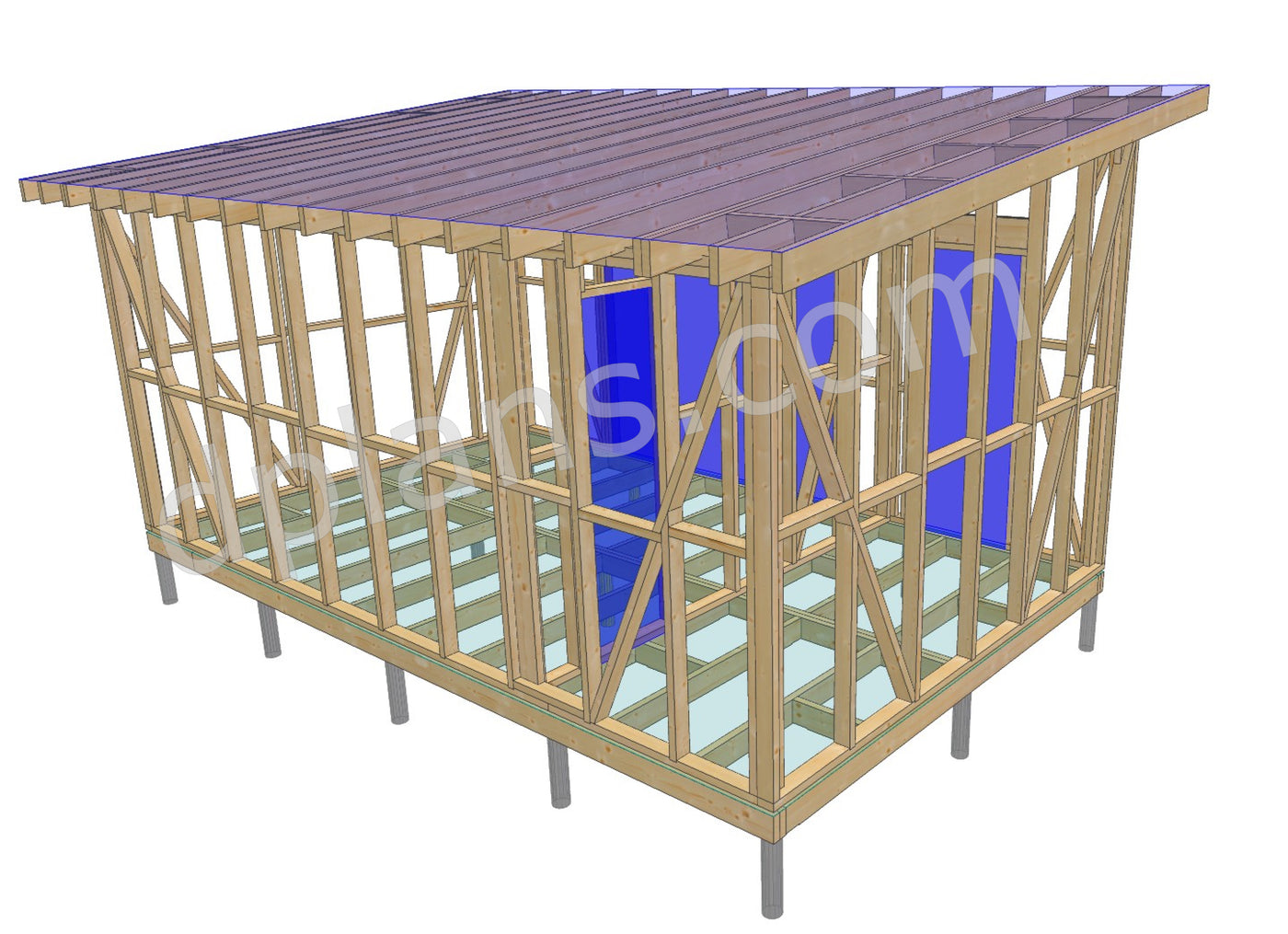

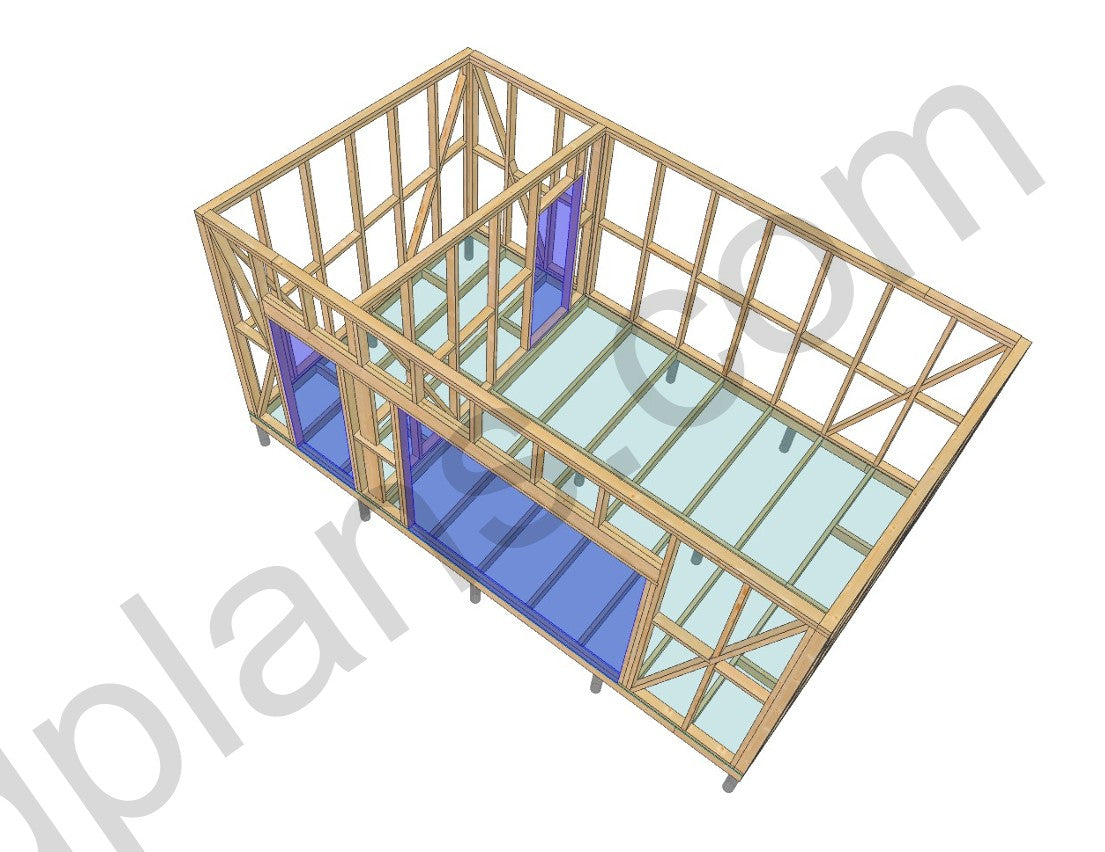

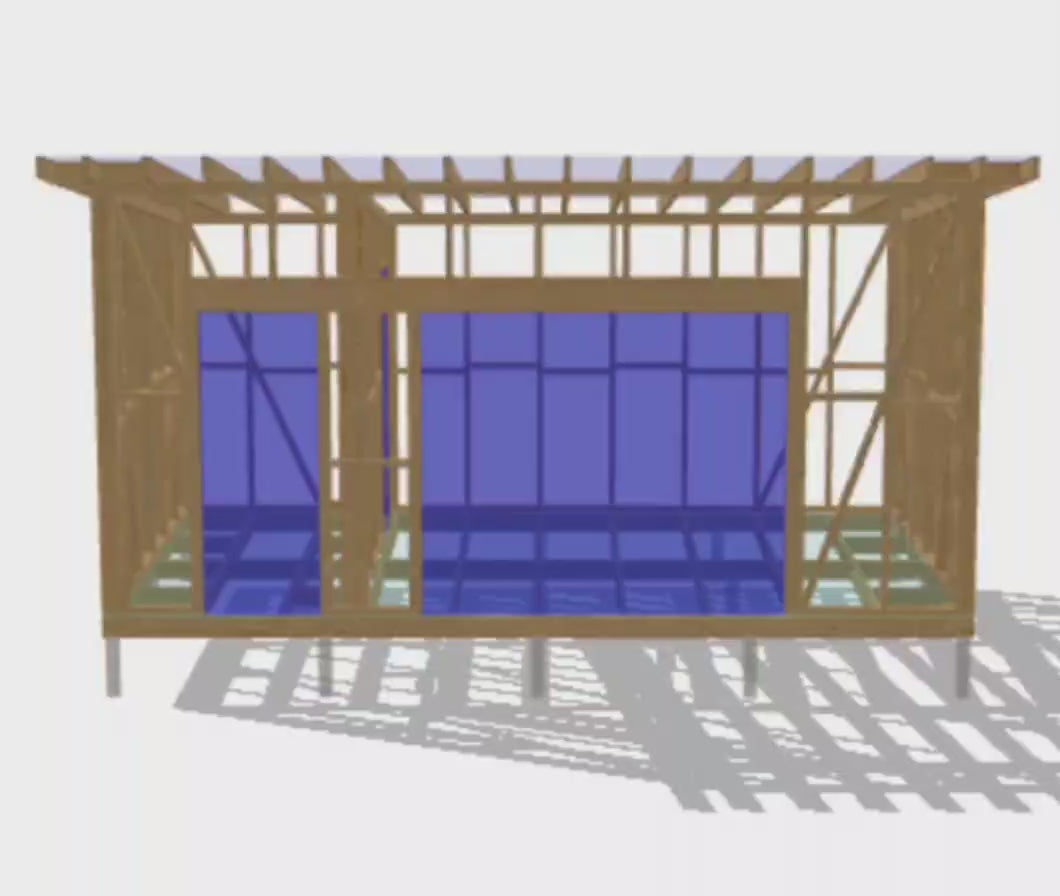

3D Visualization: Interactive 3D model accessible via QR code for spatial understanding
-
Dual Measurements: Separate folders with metric (mm) and imperial (inches) versions
This plan provides everything needed for construction. All structural connections are engineered with proper load distribution using MiTek's professional timber engineering system.
Choose Your Plan
Standard Plan includes complete PDF documentation - perfect for builders and contractors.
Pro Plan adds DWG files (for AutoCAD and CAD software), IFC files (for BIM applications like Revit), and access to MiTek Pamir viewer software for enhanced technical viewing. Choose Pro if you need to import plans into CAD software for modifications or work with BIM workflows.
