Garage Project Plans
14'5" x 18'4" / 4400 x 5600 mm
Structure Type: Timber-frame garage
Building Footprint: 24.64m² (265 sq ft)
Total Usable Space: 24.64m² (265 sq ft)
Foundation Type: Concrete slab foundation
Ideal For: Residential garages, storage buildings, workshop spaces, or utility structures
Structure Details
The design features 24.64m² (265 sq ft) of enclosed space with a pitched roof structure, suitable for vehicle storage, workshop use, or general storage needs.
What's Included
Complete structural engineering package created with licensed MiTek Pamir software:

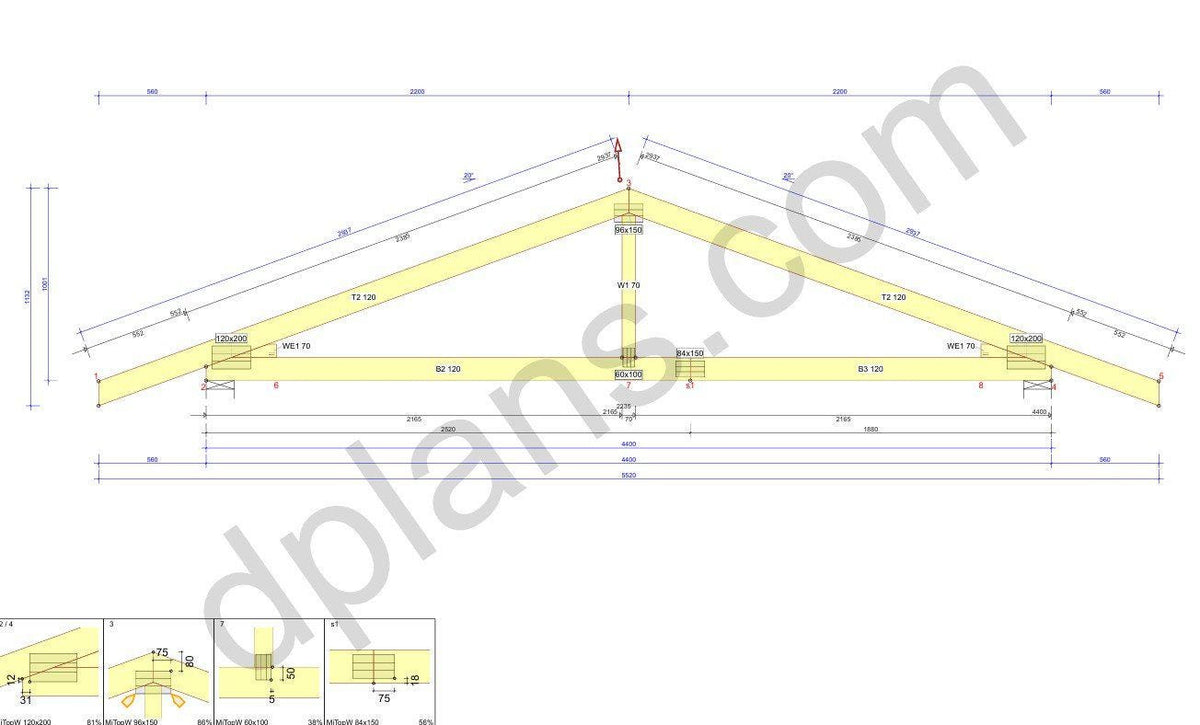

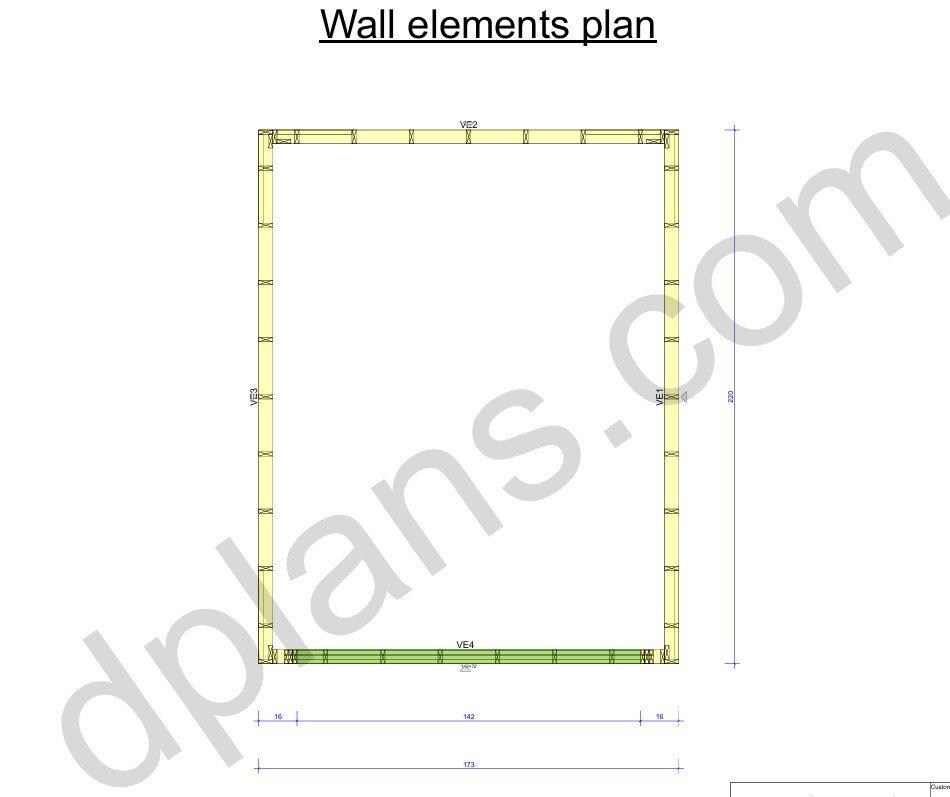

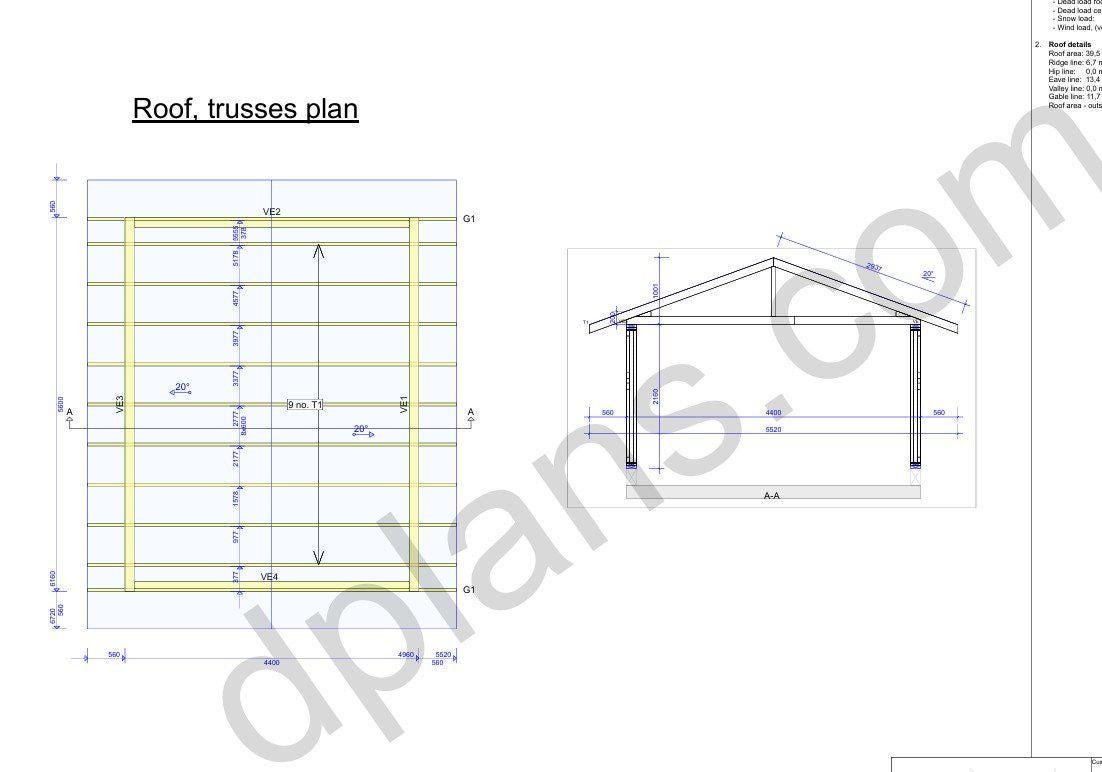

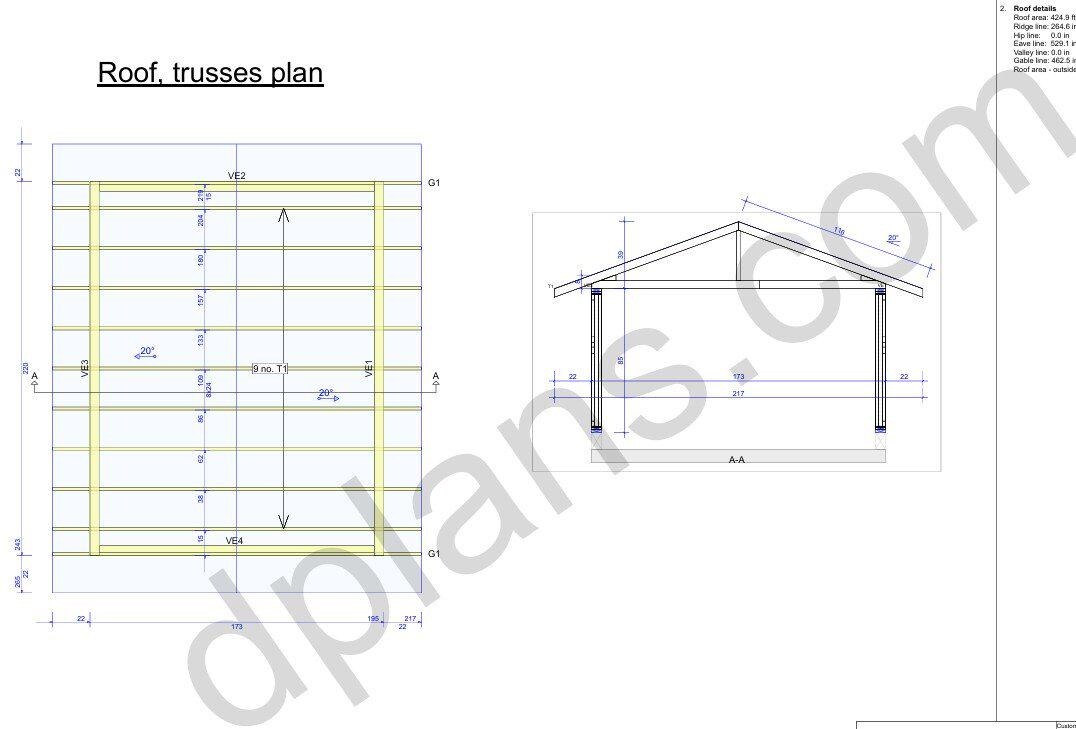

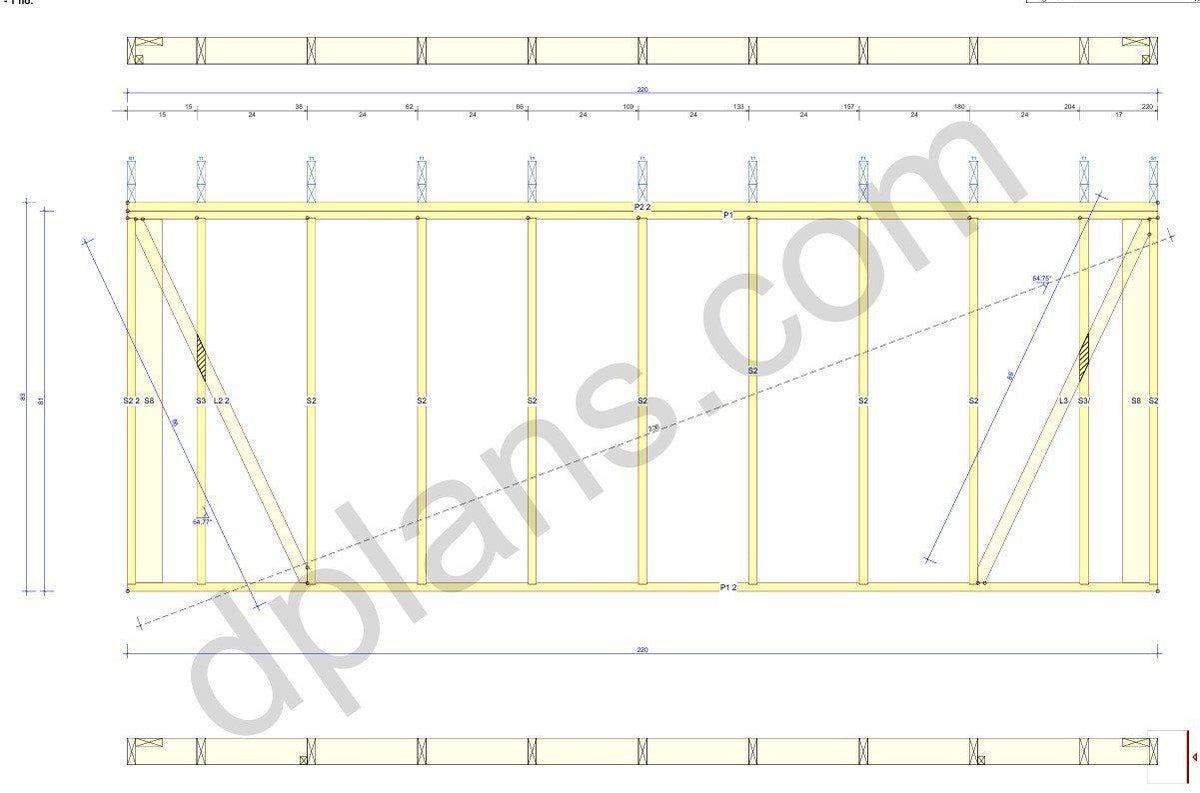

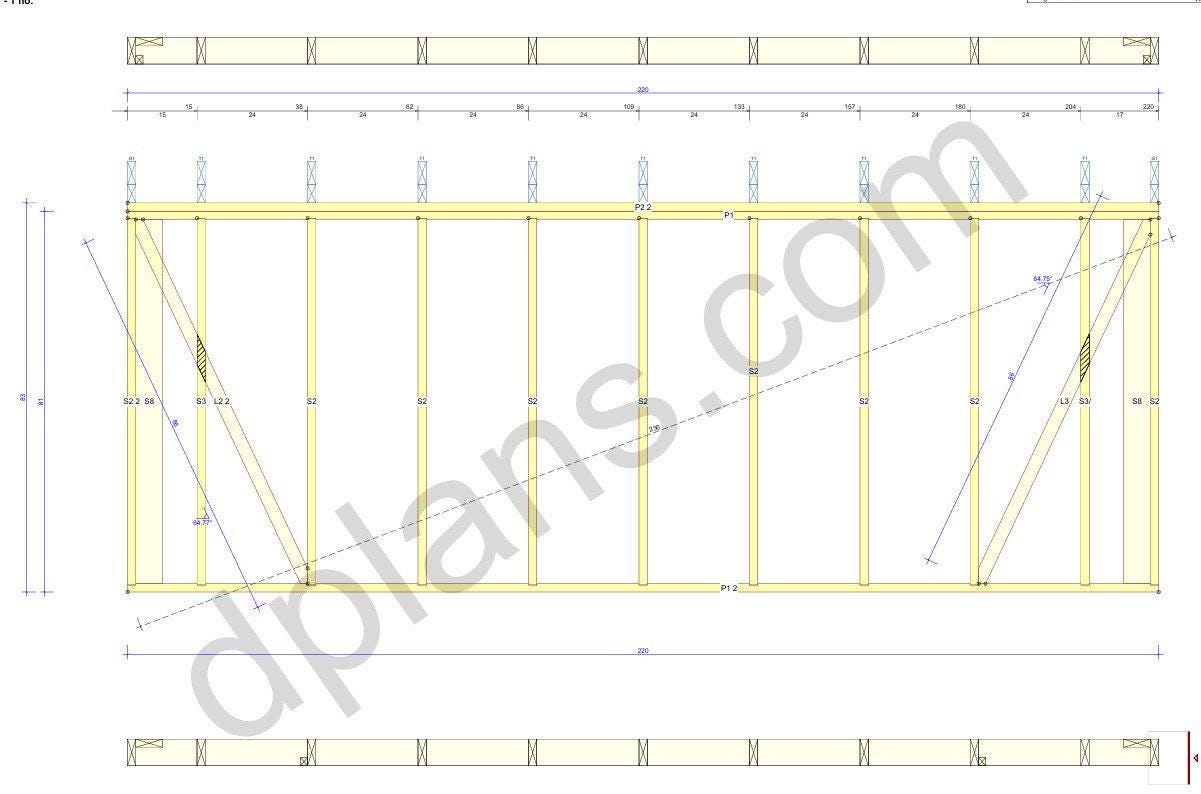

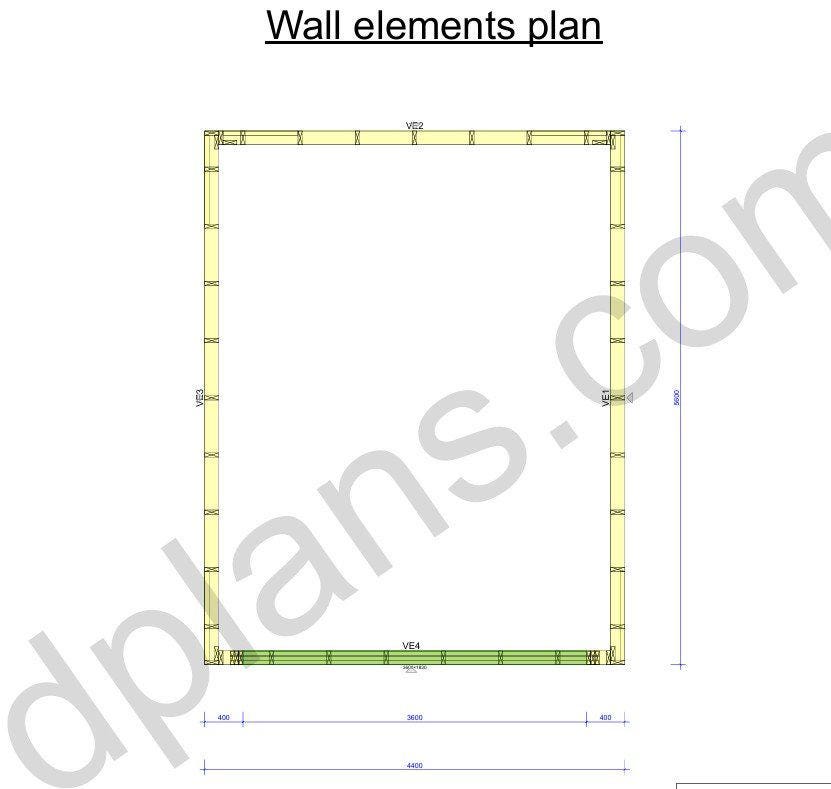

Structural Drawings: Detailed elevations, floor plan, roof framing layout, and wall sections showing all timber members and connections
Load Calculations: Full engineering analysis for dead loads, live loads, snow loads, and wind loads

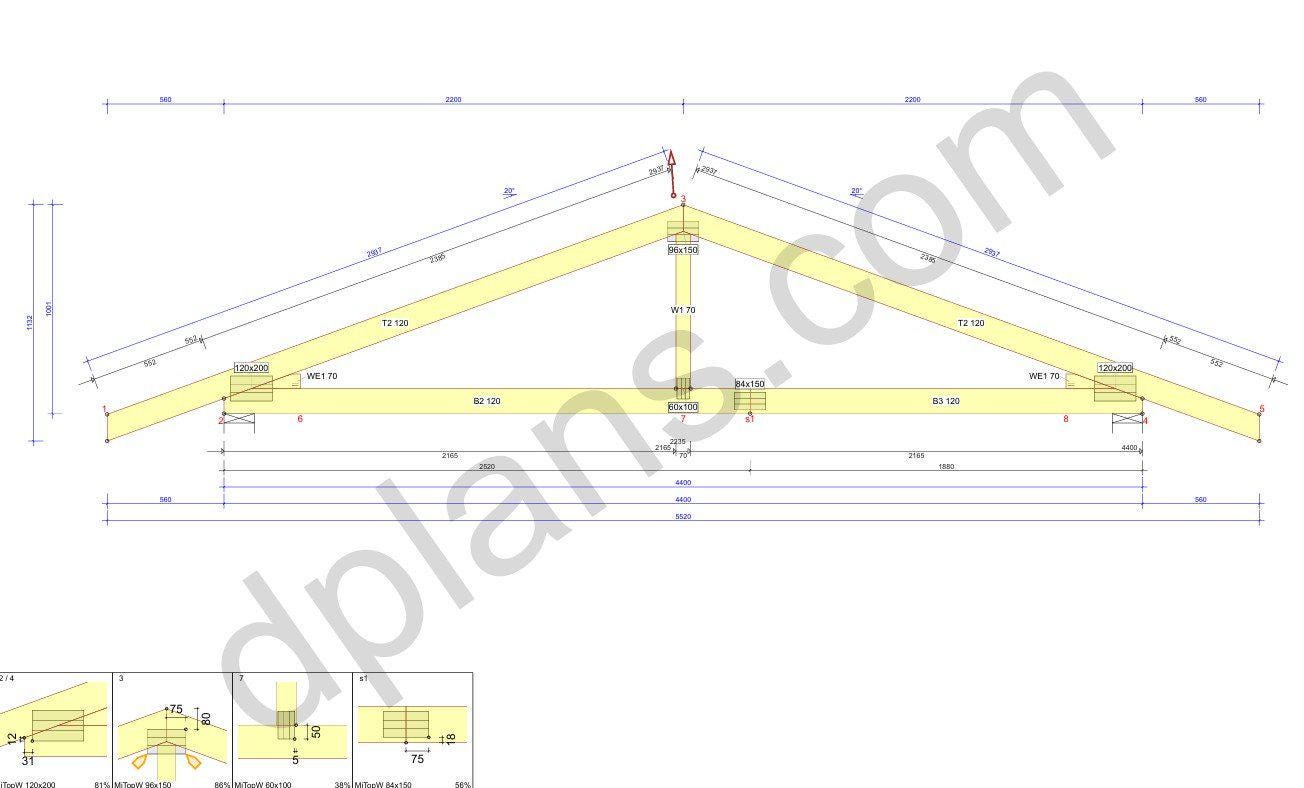

Production Drawings: Connector plate specifications and placement (where applicable to the design)

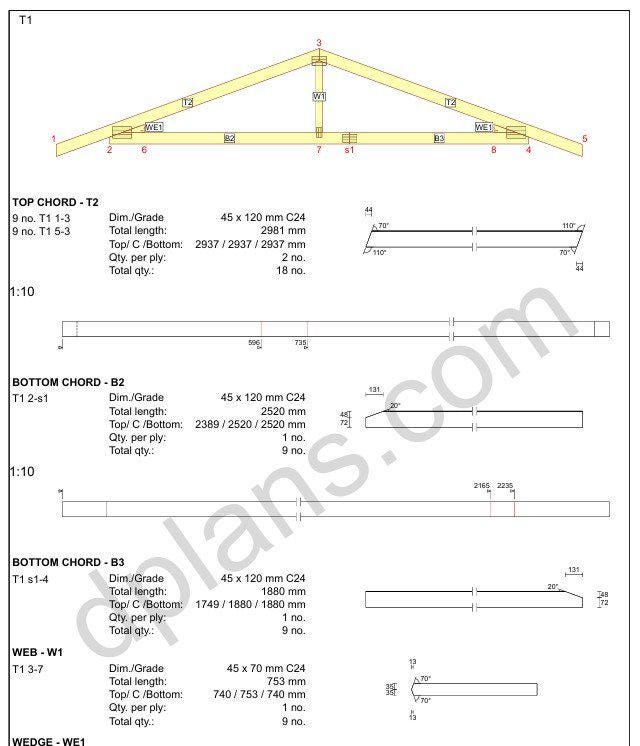

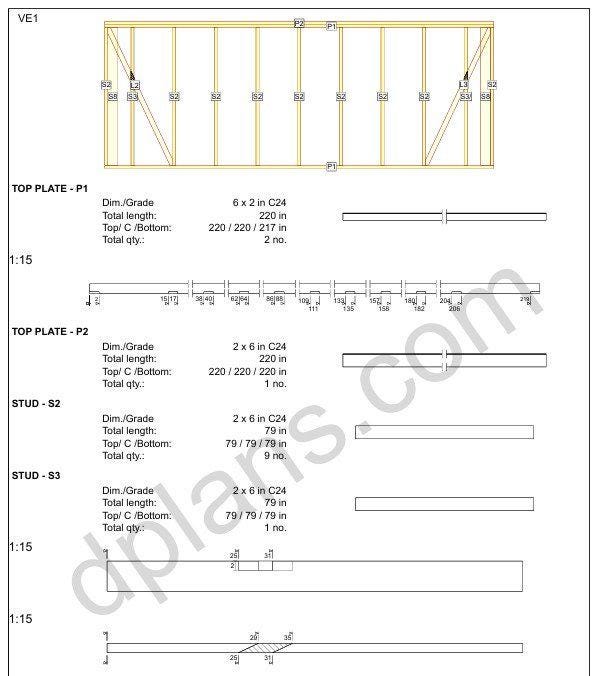

Cutting Bills: Exact dimensions and angles for every structural member - ready for cutting
Material Pick List: Complete timber quantities, fastener specifications, and hardware requirements
Foundation Layout: Perimeter and support structure details with anchor points

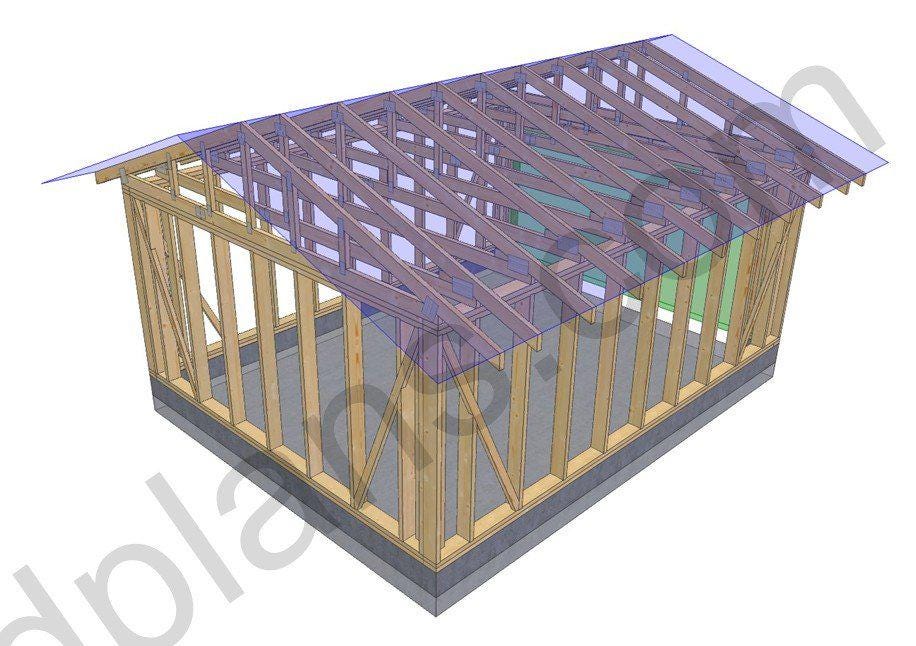

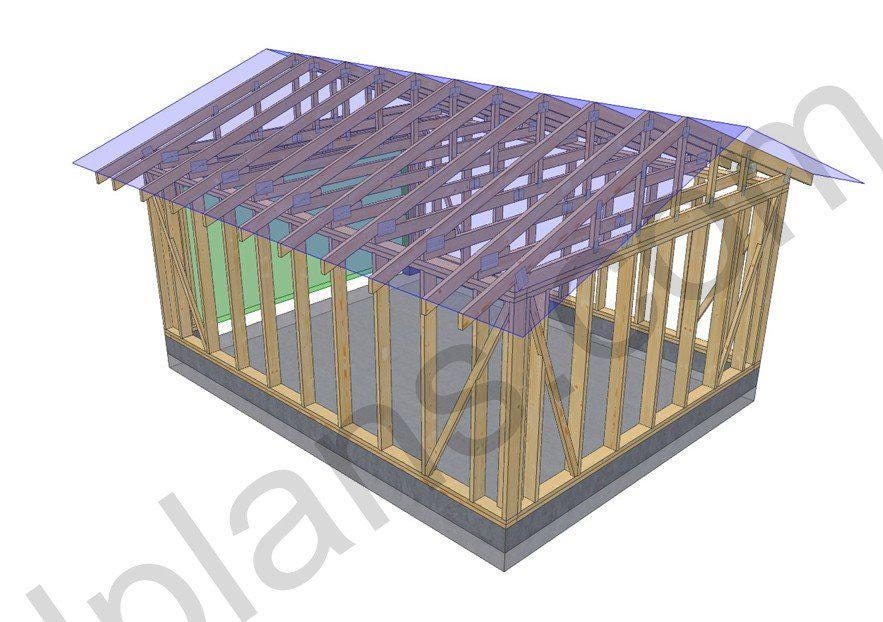

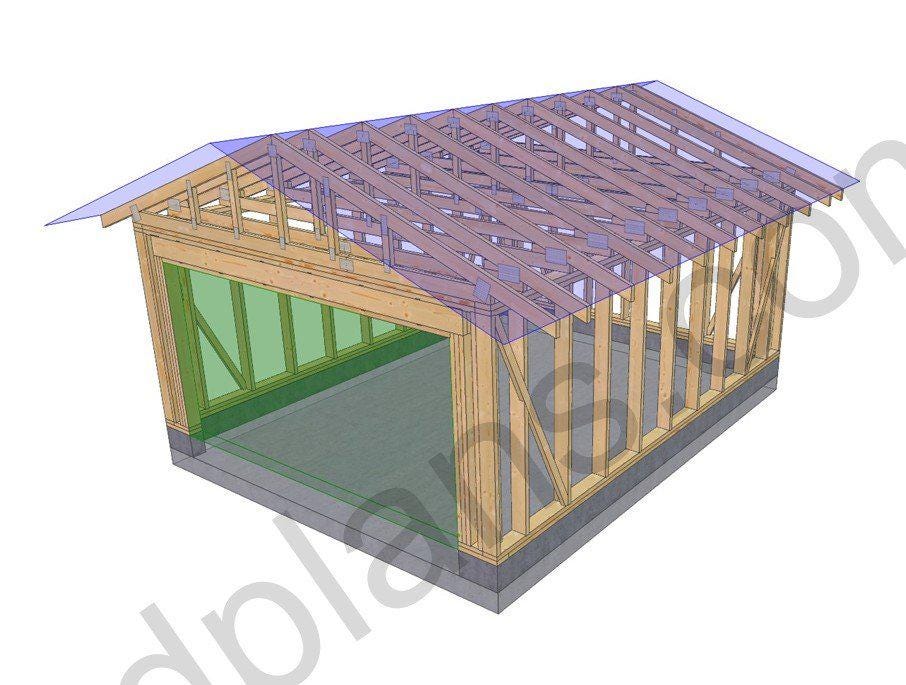

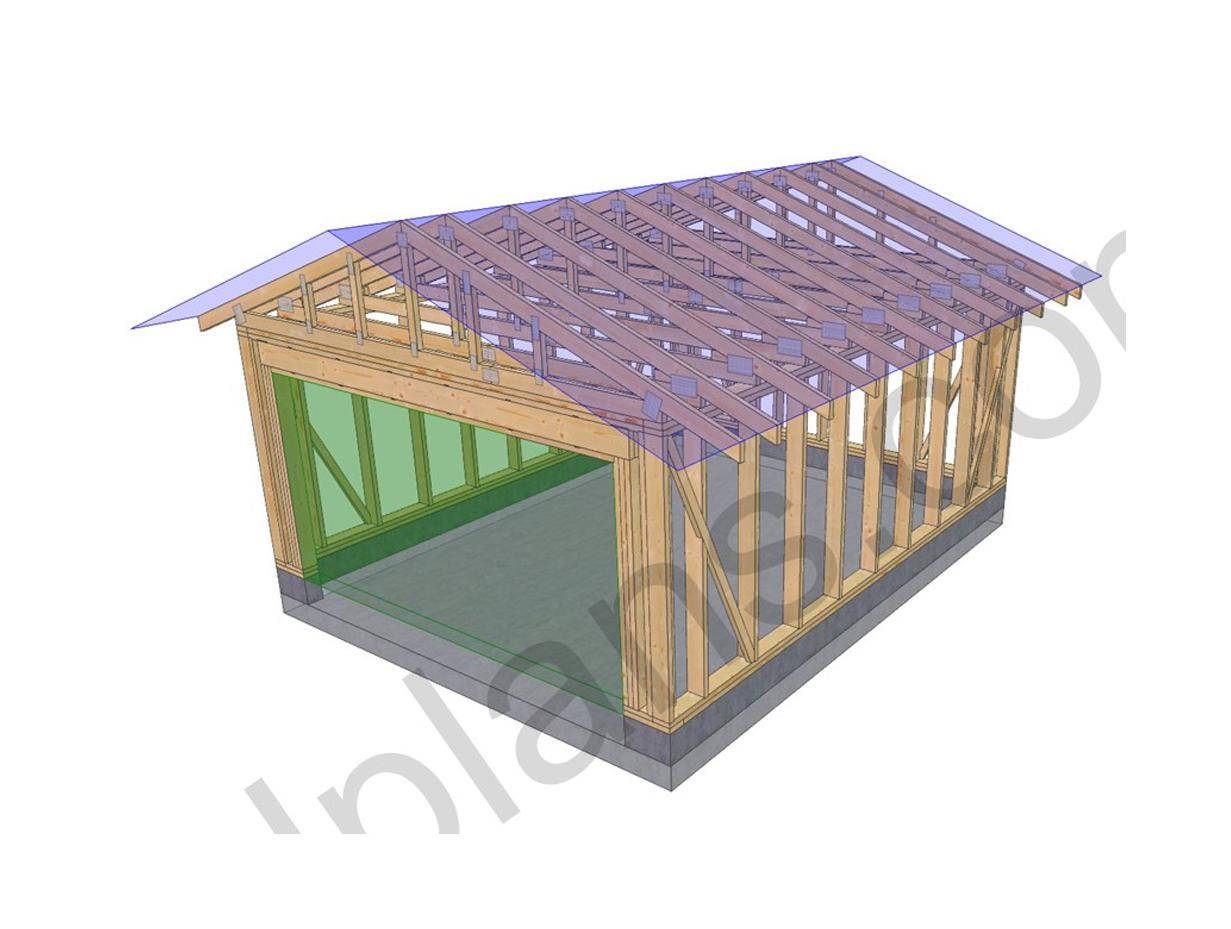

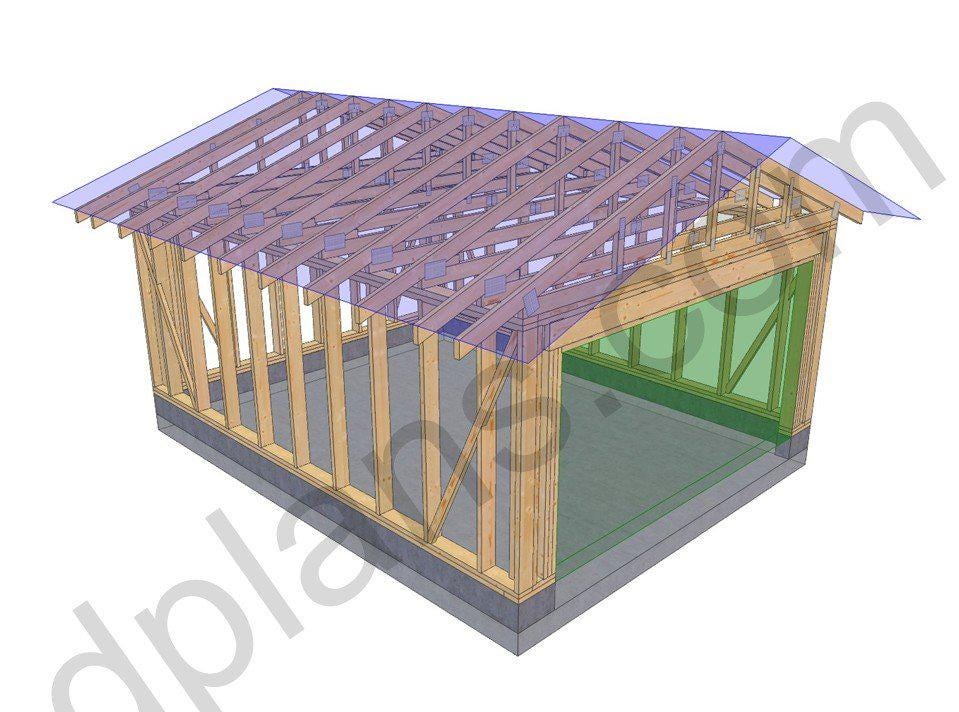

3D Visualization: Interactive 3D model accessible via QR code for spatial understanding
Dual Measurements: Separate folders with metric (mm) and imperial (inches) versions
This plan provides everything needed for construction. All structural connections are engineered with proper load distribution using MiTek's professional timber engineering system.
Choose Your Plan
Standard Plan includes complete PDF documentation - perfect for builders and contractors.
Pro Plan adds DWG files (for AutoCAD and CAD software), IFC files (for BIM applications like Revit), and access to MiTek Pamir viewer software for enhanced technical viewing. Choose Pro if you need to import plans into CAD software for modifications or work with BIM workflows.
